How can I get a price quote for Siemens 3SF1114-1LA00-1BA1?

You can request a fast quote for Siemens 3SF1114-1LA00-1BA1 from Yılsa Engineering. Reference part number CEY-8EF3B0390D45. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SF1114-1LA00-1BA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SF1114-1LA00-1BA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SF1114-1LA00-1BA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

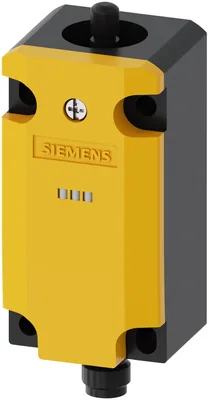

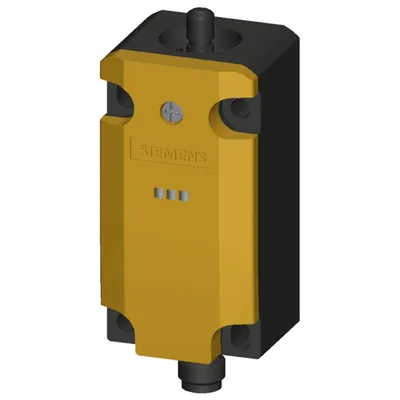

Siemens 3SF1114-1LA00-1BA1

Basic switch without actuator head Metal enclosure, according to EN 50041 ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Snap-action contacts 2 NC/1 NO with M12 connector 4-pole Channel 1 to NC, Channel 2 to NC

SiemensMFR # 3SF1114-1LA00-1BA1SKU # CEY-8EF3B0390D45

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SF11

of the supplied basic switch3SF1114-1LA00-1BA1

product function positive openingYes

insulation voltage rated value30 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3SF1114-1LA00-1BA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SF11

of the supplied basic switch3SF1114-1LA00-1BA1

General technical data

product function positive openingYes

insulation voltage rated value30 V

degree of pollutionclass 3

surge voltage resistance rated value0.8 kV

shock resistance according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

reference code according to IEC 81346-2B

active principlemechanical

repeat accuracy0.1 mm

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2 Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.321 kg

length of the sensor99.7 mm

width of the sensor40 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

design of the switching contactmechanical

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts0

Enclosure

design of the housingblock, narrow

material of the enclosuremetal

coating of the enclosurecathodic dip coating

design of the housing according to standardYes

Drive Head

design of the switching functionpositive opening

circuit principlesnap-action contacts

number of switching contacts safety-related2

design of plug-in connectionM12 plug, 4-pole: Pin 1 = ASI+ , Pin 2 = not assigned, Pin 3= ASI-, Pin 4 = not assigned

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionplug M12

Supply voltage

type of voltage of the supply voltage of the optional LED displayDC

24 V

design of the interface for safety-related communicationASIsafe via M12 plug

Accessories 14

Genuine accessories that can be used with the Siemens 3SF1114-1LA00-1BA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SE5000-0AE01	Seçmeli zorunlu ürün
3SE5000-0AF01	Seçmeli zorunlu ürün
3SE5000-0AH00	Seçmeli zorunlu ürün
3SE5000-0AB01	Seçmeli zorunlu ürün
3SE5000-0AC02	Seçmeli zorunlu ürün
3SE5000-0AD02	Seçmeli zorunlu ürün
3SE5000-0AE02	Seçmeli zorunlu ürün
3SE5000-0AE03	Seçmeli zorunlu ürün
3SE5000-0AE04	Seçmeli zorunlu ürün
3SE5000-0AF02	Seçmeli zorunlu ürün
3SE5000-0AF04	Seçmeli zorunlu ürün
3SE5000-0AF03	Seçmeli zorunlu ürün
3SE5000-0AU21	Seçmeli zorunlu ürün
3SE5000-0AU22	Seçmeli zorunlu ürün
