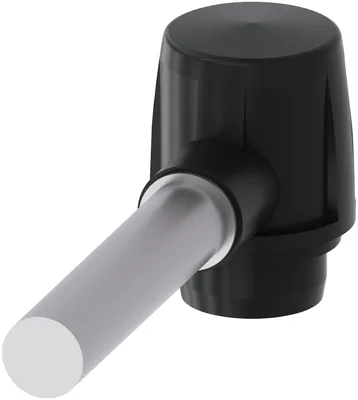

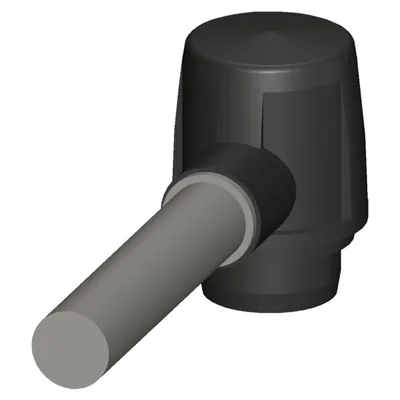

Siemens 3SE5000-0AU22

Actuator head for hinge switch made of plastic with solid shaft Diameter = 10 mm and actuating angle 10°

SiemensMFR # 3SE5000-0AU22SKU # CEY-8EF3B0391CF9

product brand nameSIRIUS

product designationactuator head for position switch

product type designation3SE5

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

Have questions?Chat on WhatsApp

About This Product

Actuator head for hinge switch made of plastic with solid shaft Diameter = 10 mm and actuating angle 10°

Siemens 3SE5000-0AU22

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationactuator head for position switch

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AU22

General technical data

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical1 000 000

material of the enclosure of the switch headplastic / stainless steel

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.06 kg

minimum actuating torque in directions of actuation0.2 N·m

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

coating of the enclosureOther types

Drive Head

design of the actuating elementoperating angle 10°, solid shaft, d = 10 mm

shape of the switch headsolid shaft

outer diameter of the switch head10 mm

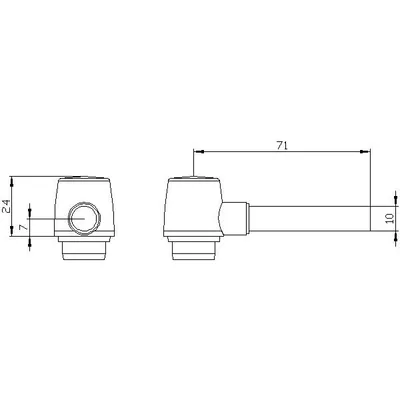

Installation/ mounting/ dimensions

mounting positionany

fastening methodlockable plug-in fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout
