How can I get a price quote for Siemens 3SE5000-0AU21?

You can request a fast quote for Siemens 3SE5000-0AU21 from Yılsa Engineering. Reference part number CEY-8EF3B0391CFA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5000-0AU21 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5000-0AU21 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5000-0AU21?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

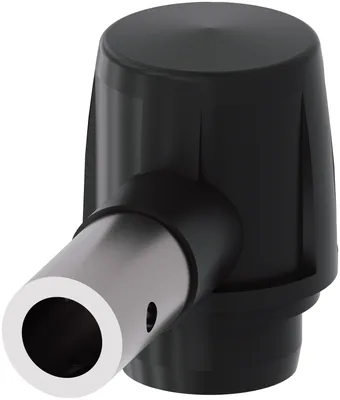

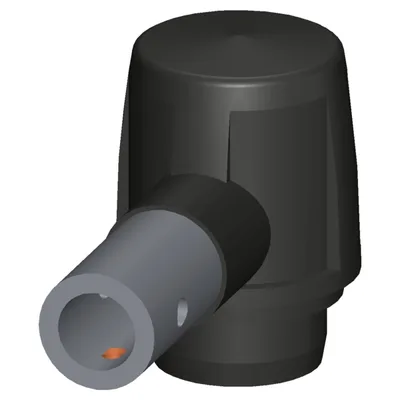

Siemens 3SE5000-0AU21

Actuator head for hinge switch made of plastic with hollow shaft Diameter = 8 mm and actuating angle 10°

SiemensMFR # 3SE5000-0AU21SKU # CEY-8EF3B0391CFA

product brand nameSIRIUS

product designationactuator head for position switch

product type designation3SE5

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

Have questions?Chat on WhatsApp

About This Product

Actuator head for hinge switch made of plastic with hollow shaft Diameter = 8 mm and actuating angle 10°

Siemens 3SE5000-0AU21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationactuator head for position switch

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AU21

General technical data

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical1 000 000

material of the enclosure of the switch headplastic / stainless steel

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.04 kg

minimum actuating torque in directions of actuation0.2 N·m

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

coating of the enclosureOther types

Drive Head

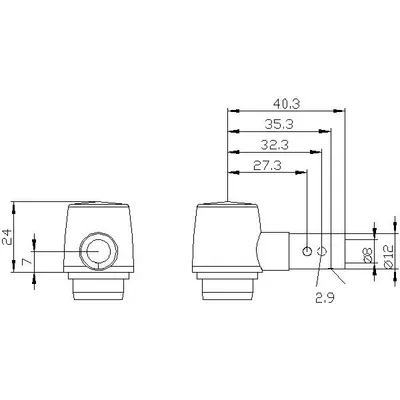

design of the actuating elementoperating angle 10°, hollow shaft, di = 8 mm, da = 12 mm

shape of the switch headhollow shaft

outer diameter of the switch head12 mm

Installation/ mounting/ dimensions

mounting positionany

fastening methodlockable plug-in fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Accessories 5

Genuine accessories that can be used with the Siemens 3SE5000-0AU21 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SF1114-1LA00-1BA1	Seçmeli zorunlu ürün
3SF1124-1LA00-1BA2	Seçmeli zorunlu ürün
3SF1214-1LC05-1BA1	Seçmeli zorunlu ürün
3SF1234-1LC05-1BA1	Seçmeli zorunlu ürün
3SF1244-1LC05-1BA2	Seçmeli zorunlu ürün
