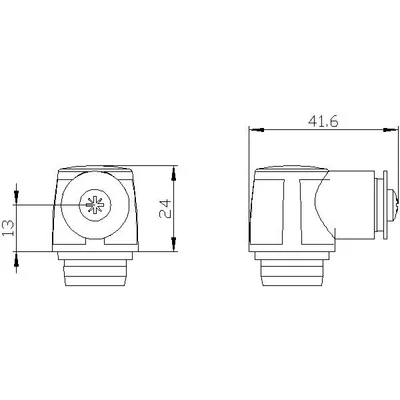

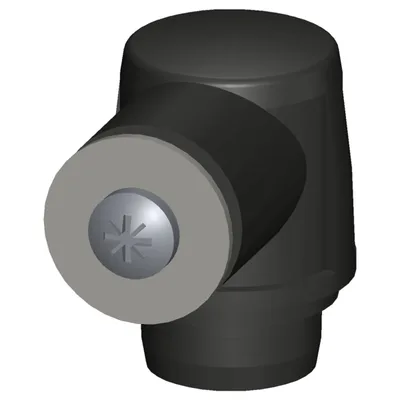

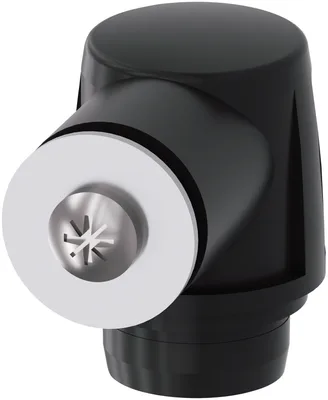

Siemens 3SE5000-0AH00

Pivoting lever drive (Please order lever separately) for position switch 3SE51/3SF11, for 40/56/56XL mm, Switch points according to EN 50041. The switching direction the lever is on left / right or left only or only to the right. Delivery state ist right / left.

SiemensMFR # 3SE5000-0AH00SKU # CEY-937FC780BD4C

product brand nameSIRIUS

product type designation3SE5

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

reference code according to IEC 81346-2T

active principlemechanical

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5000-0AH00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationPart-turn actuator for position switch 3SE51/3SF11

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AH00

General technical data

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.032 kg

minimum actuating torque in directions of actuation0.25 N·m

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

coating of the enclosureOther types

Drive Head

design of the actuating elementTwist actuator, without lever or rod

standard-compliant actuator headEN 50041

Installation/ mounting/ dimensions

mounting positionany

fastening methodlockable plug-in fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Accessories 38

Genuine accessories that can be used with the Siemens 3SE5000-0AH00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX5100-3B	Aksesuar
3SE5122-0LA00	Seçmeli zorunlu ürün
3SE5112-0CA00	Seçmeli zorunlu ürün
3SE5112-0LA00	Seçmeli zorunlu ürün
3SE5132-0CA00	Seçmeli zorunlu ürün
3SE5162-0CA00	Seçmeli zorunlu ürün
3SE5000-0AA60	Seçmeli zorunlu ürün
3SE5000-0AA52	Seçmeli zorunlu ürün
3SE5000-0AA53	Seçmeli zorunlu ürün
3SE5000-0AA55	Seçmeli zorunlu ürün
3SE5000-0AA56	Seçmeli zorunlu ürün
3SE5000-0AA57	Seçmeli zorunlu ürün
3SE5000-0AA58	Seçmeli zorunlu ürün
3SE5000-0AA61	Seçmeli zorunlu ürün
3SE5000-0AA62	Seçmeli zorunlu ürün
3SE5000-0AA63	Seçmeli zorunlu ürün
3SE5000-0AA67	Seçmeli zorunlu ürün
3SE5000-0AA68	Seçmeli zorunlu ürün
3SE5000-0AA80	Seçmeli zorunlu ürün
3SE5000-0AA81	Seçmeli zorunlu ürün
3SE5000-0AA82	Seçmeli zorunlu ürün
3SE5000-0AA51	Seçmeli zorunlu ürün
3SE5000-0AA50	Seçmeli zorunlu ürün
3SE5000-0AA26	Seçmeli zorunlu ürün
3SE5000-0AA16	Seçmeli zorunlu ürün
3SE5000-0AA01	Seçmeli zorunlu ürün
3SE5000-0AA02	Seçmeli zorunlu ürün
3SE5000-0AA83	Seçmeli zorunlu ürün
3SE5000-0AA24	Seçmeli zorunlu ürün
3SE5000-0AA04	Seçmeli zorunlu ürün
3SE5000-0AA05	Seçmeli zorunlu ürün
3SE5000-0AA07	Seçmeli zorunlu ürün
3SE5000-0AA08	Seçmeli zorunlu ürün
3SE5000-0AA11	Seçmeli zorunlu ürün
3SE5000-0AA12	Seçmeli zorunlu ürün
3SE5000-0AA15	Seçmeli zorunlu ürün
3SE5000-0AA03	Seçmeli zorunlu ürün
3SE5000-0AA70	Seçmeli zorunlu ürün
