How can I get a price quote for Siemens 3SE5132-0CA00?

You can request a fast quote for Siemens 3SE5132-0CA00 from Yılsa Engineering. Reference part number CEY-8EF3B02F7CD6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5132-0CA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5132-0CA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5132-0CA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

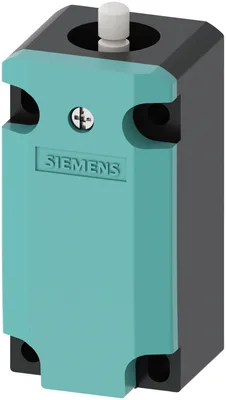

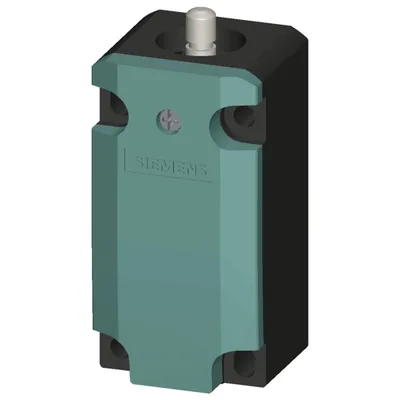

Siemens 3SE5132-0CA00

Basic switch for position switch 3SE513 Enclosure plastic according to EN 50041, 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts without actuator head

SiemensMFR # 3SE5132-0CA00SKU # CEY-8EF3B02F7CD6

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SE5

of the supplied switching contacts3SE5000-0CA00

product function positive openingYes

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

Basic switch for position switch 3SE513 Enclosure plastic according to EN 50041, 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts without actuator head

Siemens 3SE5132-0CA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SE5

of the supplied switching contacts3SE5000-0CA00

of the supplied empty enclosure with cover3SE5132-0AA00

General technical data

product function positive openingYes

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current10 A

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG6 A

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.079 kg

minimum actuating force in directions of actuation20 N

length of the sensor85.7 mm

width of the sensor40 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

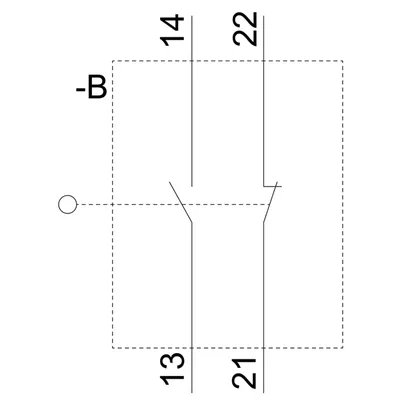

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 24 V rated value6 A

at 125 V rated value6 A

at 240 V rated value6 A

at 400 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

at 400 V rated value0.12 A

Enclosure

design of the housingblock, narrow

material of the enclosureplastic

coating of the enclosureOther types

design of the housing according to standardYes

Drive Head

design of the actuating elementOther, without, basic switch

design of the switching functionPositive opening with appropriate positive opening actuator head

circuit principlesnap-action contacts

number of switching contacts safety-related1

cable entry type1x (M20 x 1.5)

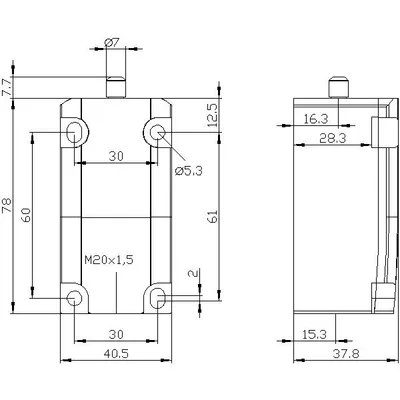

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 3192010 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A

Accessories 17

Genuine accessories that can be used with the Siemens 3SE5132-0CA00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX9926	Aksesuar · Miscellaneous accessories · cable glands
3SY3110	Aksesuar · Miscellaneous accessories · laminations
3SY3027	Aksesuar · Miscellaneous accessories · base plates
3SY3127	Aksesuar · Miscellaneous accessories · plugs
3SE5132-0AA00	Bileşen
3SE5000-0CA00	Bileşen
3SE5000-0AR02	Seçmeli zorunlu ürün
3SE5000-0AR01	Seçmeli zorunlu ürün
3SE5000-0AF05	Seçmeli zorunlu ürün
3SE5000-0AR04	Seçmeli zorunlu ürün
3SE5000-0AB01	Seçmeli zorunlu ürün
3SE5000-0AH00	Seçmeli zorunlu ürün
3SE5000-0AR03	Seçmeli zorunlu ürün
3SE5000-0AE05	Seçmeli zorunlu ürün
3SE5000-0AD06	Seçmeli zorunlu ürün
3SE5000-0AD05	Seçmeli zorunlu ürün
3SE5000-0AC03	Seçmeli zorunlu ürün
