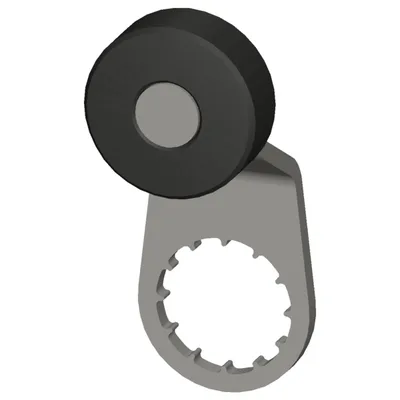

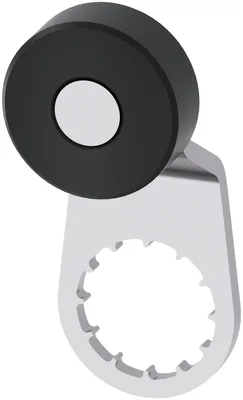

Siemens 3SE5000-0AA11

twist lever for position switch 3SE51 Stainless steel lever, Form A 27 mm long, Step 9 mm with plastic roller 19 mm according to EN 50041

SiemensMFR # 3SE5000-0AA11SKU # CEY-8EF3B030E12A

product brand nameSIRIUS

product designationactuator for part-turn actuator

product type designation3SE5

of the supplied operating lever3SE5000-0AA11

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

Have questions?Chat on WhatsApp

About This Product

twist lever for position switch 3SE51 Stainless steel lever, Form A 27 mm long, Step 9 mm with plastic roller 19 mm according to EN 50041

Siemens 3SE5000-0AA11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationactuator for part-turn actuator

product type designation3SE5

of the supplied operating lever3SE5000-0AA11

General technical data

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.022 kg

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

coating of the enclosureOther types

Drive Head

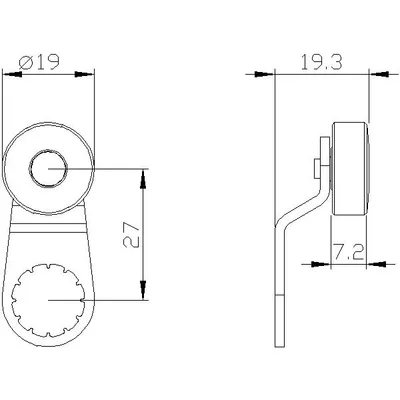

design of the actuating elementTwist lever, high-grade steel lever, 27 mm long, step 9 mm, plastic roller 19 mm

standard-compliant actuator headEN 50041, design A

shape of the switch headroller

outer diameter of the switch head19 mm

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout
