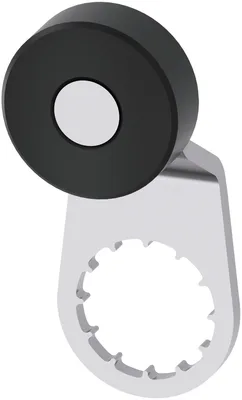

Siemens 3SE5000-0AA01

twist lever for position switch 3SE51 Metal lever Form A 27 mm long, Step 9 mm with plastic roller 19 mm according to EN 50041

SiemensMFR # 3SE5000-0AA01SKU # CEY-937FC780BD4D

product brand nameSIRIUS

product designationactuator for part-turn actuator

product type designation3SE5

of the supplied operating lever3SE5000-0AA01

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

Have questions?Chat on WhatsApp

About This Product

twist lever for position switch 3SE51 Metal lever Form A 27 mm long, Step 9 mm with plastic roller 19 mm according to EN 50041

Siemens 3SE5000-0AA01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationactuator for part-turn actuator

product type designation3SE5

of the supplied operating lever3SE5000-0AA01

General technical data

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.022 kg

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

coating of the enclosureOther types

Drive Head

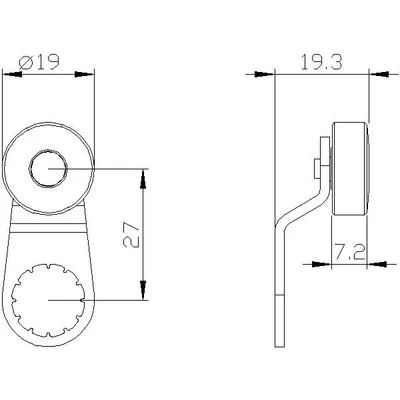

design of the actuating elementTwist lever, metal lever, 27 mm long, step 9 mm, plastic roller 19 mm

standard-compliant actuator headEN 50041, design A

shape of the switch headroller

outer diameter of the switch head19 mm

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Accessories 6

Genuine accessories that can be used with the Siemens 3SE5000-0AA01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SE5000-0AH00	Zorunlu ek ürün
3SE5112-0BA00	Seçmeli zorunlu ürün
3SE5112-0CA00	Seçmeli zorunlu ürün
3SE5112-0PA00	Seçmeli zorunlu ürün
3SE5112-0LA00	Seçmeli zorunlu ürün
3SE5000-0AH00	Seçmeli zorunlu ürün
