How can I get a price quote for Siemens 3RV2331-4BC10?

You can request a fast quote for Siemens 3RV2331-4BC10 from Yılsa Engineering. Reference part number CEY-8EF3B0392A35. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV2331-4BC10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV2331-4BC10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV2331-4BC10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

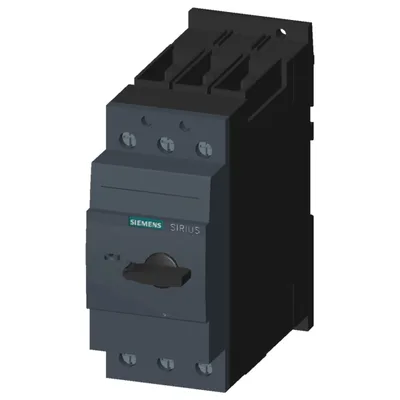

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RV2331-4BC10

Circuit breaker size S2 for starter combination Rated current 20 A N-release 260 A screw terminal Standard switching capacity

SiemensMFR # 3RV2331-4BC10SKU # CEY-8EF3B0392A35

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor starter combinations

product type designation3RV2

size of the circuit-breakerS2

product extension auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

Circuit breaker size S2 for starter combination Rated current 20 A N-release 260 A screw terminal Standard switching capacity

Siemens 3RV2331-4BC10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor starter combinations

product type designation3RV2

General technical data

Product equipment of circuit breaker for motor protection complete unit with protection deviceYes

size of the circuit-breakerS2

size of contactor can be combined company-specificS2

product function disconnector functionalityYes

product extension auxiliary switchYes

at AC in hot operating state14.5 W

at AC in hot operating state per pole4.8 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

in networks with ungrounded star point between main and auxiliary circuit400 V

in networks with grounded star point between main and auxiliary circuit400 V

on the front according to IEC 60529IP20

on the frontIP20

of the terminalIP00

shock resistance according to IEC 60068-2-2725 g / 11 ms Sinus

of the main contacts typical50 000

of auxiliary contacts typical50 000

electrical endurance (operating cycles) typical50 000

reference code according to IEC 81346-2Q

continuous current rated value20 A

Substance Prohibitance (day/month/year)10/15/2014

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight1.055 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-50 ... +80 °C

during transport-50 ... +80 °C

relative humidity during operation10 ... 95 %

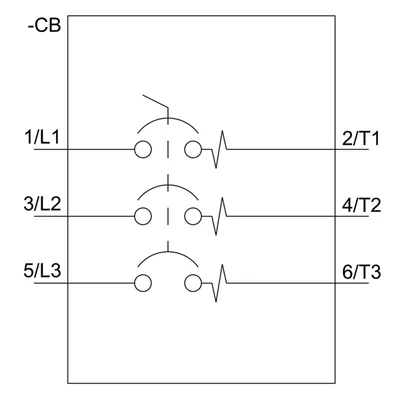

Main circuit

number of poles for main current circuit3

type of voltage for main current circuitAC

rated value690 V

rated value20 ... 690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value20 A

at AC-3 at 400 V rated value20 A

at AC-3e at 400 V rated value20 A

— at 230 V rated value5.5 kW

— at 400 V rated value7.5 kW

— at 500 V rated value11 kW

— at 690 V rated value15 kW

— at 230 V rated value5.5 kW

— at 400 V rated value7.5 kW

— at 500 V rated value11 kW

— at 690 V rated value15 kW

at AC-3 maximum15 1/h

at AC-3e maximum15 1/h

Auxiliary circuit

type of voltage for auxiliary and control circuitAC/DC

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

Protective and monitoring functions

ground fault detectionNo

phase failure detectionNo

trip classCLASS 10

protection function thermal overload protection (ANSI 49)No

at AC at 240 V rated value100 kA

at AC at 400 V rated value65 kA

at AC at 500 V rated value12 kA

at AC at 690 V rated value5 kA

at 240 V rated value100 kA

at 400 V rated value30 kA

at 500 V rated value6 kA

at 690 V rated value3 kA

response value current of instantaneous short-circuit trip unit260 A

UL/CSA ratings

at 480 V rated value20 A

at 600 V rated value20 A

— at 110/120 V rated value1.5 hp

— at 230 V rated value3 hp

— at 200/208 V rated value7.5 hp

— at 220/230 V rated value7.5 hp

— at 460/480 V rated value15 hp

— at 575/600 V rated value20 hp

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

at 240 Vnone required

at 400 V100

at 500 V80

at 690 V63

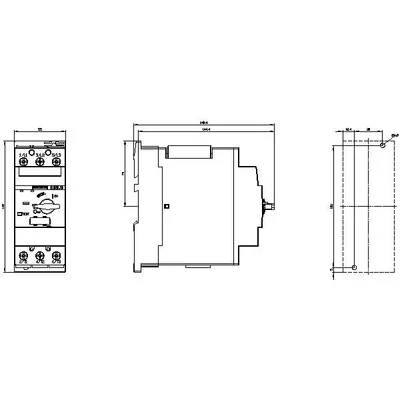

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingYes

height140 mm

width55 mm

depth149 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— at the side10 mm

— downwards50 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side10 mm

— downwards50 mm

— upwards50 mm

— at the side10 mm

— downwards50 mm

— upwards50 mm

— at the side10 mm

— downwards50 mm

— upwards50 mm

— at the side10 mm

— downwards50 mm

— upwards50 mm

— at the side10 mm

— downwards50 mm

— upwards50 mm

— backwards0 mm

— at the side10 mm

— forwards0 mm

— downwards50 mm

— upwards50 mm

— backwards0 mm

— at the side10 mm

— forwards0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitscrew-type terminals

arrangement of electrical connectors for main current circuitTop and bottom

— solid or stranded2x (1 ... 25 mm²), 1x (1 ... 35 mm²)

— finely stranded with core end processing2x (1 ... 16 mm²), 1x (1 ... 25 mm²)

for AWG cables for main contacts2x (18 ... 3), 1x (18 ... 2)

solid or stranded1 ... 35 mm²

finely stranded with core end processing1 ... 25 mm²

AWG number as coded connectable conductor cross section for main contacts18 ... 2

for main contacts with screw-type terminals3 ... 4.5 N·m

design of screwdriver shaftDiameter 5 to 6 mm

size of the screwdriver tipPozidriv size 2

for main contactsM6

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

service life maximum10 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319205 000

failure rate [FIT] with low demand rate according to SN 3192050 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

for proof test interval or service life according to IEC 6150810 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Display

display version for switching statusHandle

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing12.8 kg

global warming potential [CO2 eq] / during sales0.477 kg

global warming potential [CO2 eq] / during operation230 kg

global warming potential [CO2 eq] / after end of life-3.4 kg

global warming potential [CO2 eq] / total239.877 kg
