How can I get a price quote for Siemens 3RV2902-2AV0?

You can request a fast quote for Siemens 3RV2902-2AV0 from Yılsa Engineering. Reference part number CEY-8EF3B02C4AAE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV2902-2AV0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV2902-2AV0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV2902-2AV0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

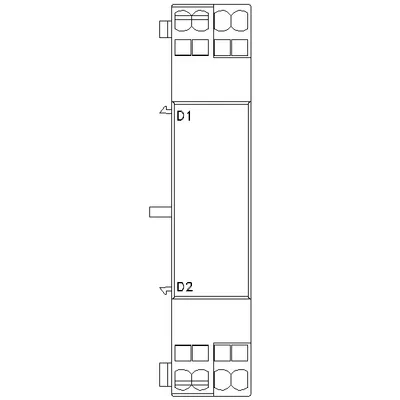

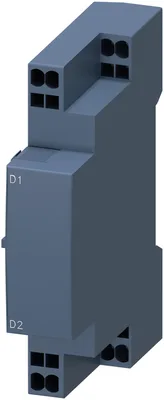

Siemens 3RV2902-2AV0

Undervoltage release 400 V AC/50 Hz, 440 V AC/60 Hz with spring-type terminal for circuit breaker 3RV2

SiemensMFR # 3RV2902-2AV0SKU # CEY-8EF3B02C4AAE

product brand nameSIRIUS

product categoryAuxiliary release

product designationundervoltage release

product type designation3RV29

suitability for usemotor circuit breaker

certificate of suitabilityCE / UL / CSA

Have questions?Chat on WhatsApp

About This Product

Undervoltage release 400 V AC/50 Hz, 440 V AC/60 Hz with spring-type terminal for circuit breaker 3RV2

Siemens 3RV2902-2AV0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryAuxiliary release

product designationundervoltage release

product type designation3RV29

suitability for usemotor circuit breaker

General technical data

certificate of suitabilityCE / UL / CSA

size of the circuit-breakerS00, S0, S2, S3

closing active power at AC maximum13 W

active power at AC in operation maximum2.4 W

apparent power at AC in operation maximum7.2 VA

rated value690 V

with degree of pollution 3 at AC rated value690 V

degree of pollution3

protection class IP on the front according to IEC 60529IP20

break time maximum20 ms

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750F

reference code according to EN 61346-2F

Substance Prohibitance (day/month/year)05/01/2012

Net Weight0.13 kg

type of voltage of the control supply voltageAC

at 50 Hz rated value400 V

at 60 Hz rated value440 V

control supply voltage frequency 150 ... 60 Hz

number of NC contacts for auxiliary contacts instantaneous contact0

instantaneous contact0

leading contact0

number of CO contacts of auxiliary contacts instantaneous contact0

Ambient conditions

during operation-20 ... +60 °C

during storage-50 ... +80 °C

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Short-circuit protection

design of short-circuit protectionfuse

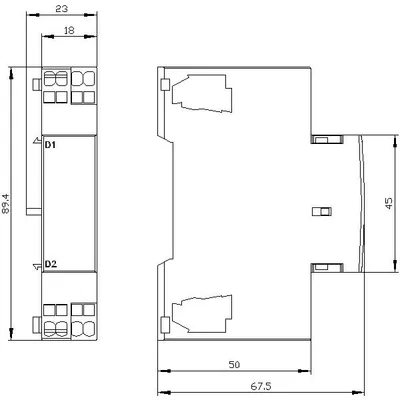

Installation/ mounting/ dimensions

fastening methodsnap-on mounting

height90 mm

width19 mm

depth68 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitspring-loaded terminals
