How can I get a price quote for Siemens 3RV2935-5A?

You can request a fast quote for Siemens 3RV2935-5A from Yılsa Engineering. Reference part number CEY-8EF3B0392256. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV2935-5A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV2935-5A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV2935-5A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

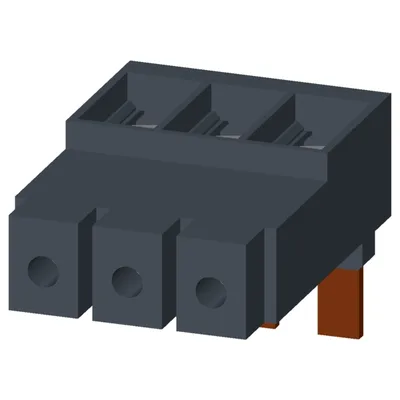

Siemens 3RV2935-5A

3-phase supply terminal Size S2 for 3-phase busbar connection from top

SiemensMFR # 3RV2935-5ASKU # CEY-8EF3B0392256

product brand nameSIRIUS

product categoryPlugs, adapters and terminals

product designation3-phase supply terminal

design of the productfrom above, size S2

product type designation3RV29

certificate of suitabilityCE / UL / CSA / CCC

Have questions?Chat on WhatsApp

About This Product

3-phase supply terminal Size S2 for 3-phase busbar connection from top

Siemens 3RV2935-5A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryPlugs, adapters and terminals

product designation3-phase supply terminal

design of the productfrom above, size S2

product type designation3RV29

General technical data

certificate of suitabilityCE / UL / CSA / CCC

size of the circuit-breakerS2

insulation voltage with degree of pollution 3 at AC rated value690 V

protection class IP on the front according to IEC 60529IP20

Substance Prohibitance (day/month/year)10/15/2014

Net Weight0.18 kg

ampacity maximum105 A

Ambient conditions

during operation-20 ... +60 °C

during storage-50 ... +80 °C

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

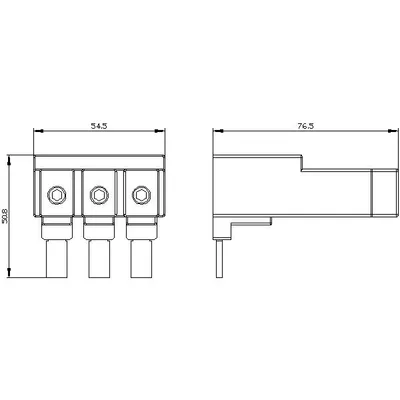

Installation/ mounting/ dimensions

height51 mm

width55 mm

depth77 mm

Connections/ Terminals

type of electrical connection for main current circuitscrew-type terminals

— solid2x (2.5 ... 50 mm²), 1x (2.5 ... 70 mm²)

— stranded2x (2.5 ... 50 mm²), 1x (2.5 ... 70 mm²)

— finely stranded with core end processing2x (2.5 ... 35 mm²), 1x (2.5 ... 50 mm²).

for AWG cables for main contacts2x (10 ... 1/0), 1x (10 ... 2/0)

solid or stranded2.5 ... 70 mm²

stranded2.5 ... 70 mm²

finely stranded with core end processing2.5 ... 50 mm²

AWG number as coded connectable conductor cross section for main contacts10 ... 2

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.161 kg

global warming potential [CO2 eq] / during operation139 kg

global warming potential [CO2 eq] / after end of life-0.0558 kg

global warming potential [CO2 eq] / total139 kg
