How can I get a price quote for Siemens 3RT2016-1CK27?

You can request a fast quote for Siemens 3RT2016-1CK27 from Yılsa Engineering. Reference part number CEY-8EF3B039335C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RT2016-1CK27 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RT2016-1CK27 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RT2016-1CK27?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

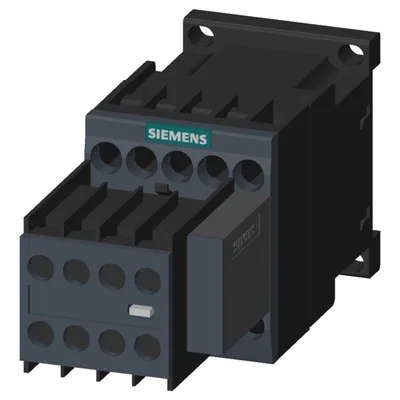

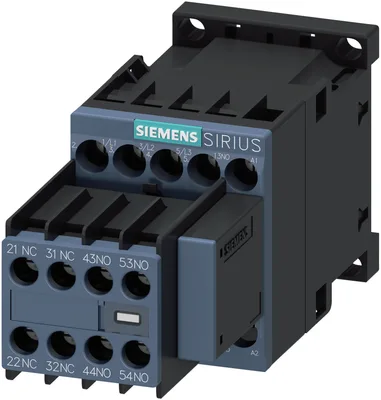

Siemens 3RT2016-1CK27

power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 120 V AC, 50/60 Hz, with varistor plugged on, auxiliary contacts: 3 NO + 2 NC, screw terminal, size: S00, removable auxiliary switch

SiemensMFR # 3RT2016-1CK27SKU # CEY-8EF3B039335C

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

size of contactorS00

function module for communicationNo

auxiliary switchNo

Have questions?Chat on WhatsApp

About This Product

power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 120 V AC, 50/60 Hz, with varistor plugged on, auxiliary contacts: 3 NO + 2 NC, screw terminal, size: S00, removable auxiliary switch

Siemens 3RT2016-1CK27

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

General technical data

size of contactorS00

function module for communicationNo

auxiliary switchNo

at AC in hot operating state0.9 W

at AC in hot operating state per pole0.3 W

without load current share typical1.1 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V

at AC6,7 g / 5 ms, 4,2 g / 10 ms

at AC10,5 g / 5 ms, 6,6 g / 10 ms

of contactor typical10 000 000

of the contactor with added electronically optimized auxiliary switch block typical5 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.272 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

at AC-1 at 400 V at ambient temperature 40 °C rated value22 A

— up to 690 V at ambient temperature 40 °C rated value22 A

— up to 690 V at ambient temperature 60 °C rated value20 A

— at 400 V rated value9 A

— at 500 V rated value7.7 A

— at 690 V rated value6.7 A

— at 400 V rated value9 A

— at 500 V rated value7.7 A

— at 690 V rated value6.7 A

at AC-4 at 400 V rated value8.5 A

at AC-5a up to 690 V rated value19.4 A

at AC-5b up to 400 V rated value7.4 A

— up to 230 V for current peak value n=20 rated value5.3 A

— up to 400 V for current peak value n=20 rated value5.3 A

— up to 500 V for current peak value n=20 rated value5.3 A

— up to 690 V for current peak value n=20 rated value5 A

— up to 230 V for current peak value n=30 rated value3.5 A

— up to 400 V for current peak value n=30 rated value3.5 A

— up to 500 V for current peak value n=30 rated value3.6 A

— up to 690 V for current peak value n=30 rated value3.3 A

minimum cross-section in main circuit at maximum AC-1 rated value4 mm²

at 400 V rated value4.1 A

at 690 V rated value3.3 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value2.1 A

— at 220 V rated value0.8 A

— at 440 V rated value0.6 A

— at 600 V rated value0.6 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value12 A

— at 220 V rated value1.6 A

— at 440 V rated value0.8 A

— at 600 V rated value0.7 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value20 A

— at 220 V rated value20 A

— at 440 V rated value1.3 A

— at 600 V rated value1 A

— at 24 V rated value20 A

— at 60 V rated value0.5 A

— at 110 V rated value0.15 A

— at 24 V rated value20 A

— at 60 V rated value5 A

— at 110 V rated value0.35 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value20 A

— at 220 V rated value1.5 A

— at 440 V rated value0.2 A

— at 600 V rated value0.2 A

at AC-2 at 400 V rated value4 kW

— at 230 V rated value2.2 kW

— at 400 V rated value4 kW

— at 500 V rated value4 kW

— at 690 V rated value5.5 kW

— at 230 V rated value2.2 kW

— at 400 V rated value4 kW

— at 500 V rated value4 kW

— at 690 V rated value5.5 kW

at 400 V rated value2 kW

at 690 V rated value2.5 kW

up to 230 V for current peak value n=20 rated value2 kVA

up to 400 V for current peak value n=20 rated value3.6 kVA

up to 500 V for current peak value n=20 rated value4.6 kVA

up to 690 V for current peak value n=20 rated value5.9 kVA

up to 230 V for current peak value n=30 rated value1.3 kVA

up to 400 V for current peak value n=30 rated value2.4 kVA

up to 500 V for current peak value n=30 rated value3.1 kVA

up to 690 V for current peak value n=30 rated value4 kVA

limited to 1 s switching at zero current maximum155 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum111 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum86 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum66 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum55 A; Use minimum cross-section acc. to AC-1 rated value

at AC10 000 1/h

at AC-1 maximum1 000 1/h

at AC-2 maximum750 1/h

at AC-3 maximum750 1/h

— maximum750 1/h

at AC-4 maximum250 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz rated value120 V

at 60 Hz rated value120 V

at 50 Hz0.8 ... 1.1

at 60 Hz0.85 ... 1.1

design of the surge suppressorwith varistor

at 50 Hz27 V·A

at 60 Hz24.3 V·A

at 50 Hz0.8

at 60 Hz0.75

at 50 Hz4.2 V·A

at 60 Hz3.3 V·A

at 50 Hz0.25

at 60 Hz0.25

at AC9 ... 35 ms

at AC4 ... 15 ms

arcing time10 ... 15 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact2

number of NO contacts for auxiliary contacts instantaneous contact3

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0.15 A

at 24 V rated value6 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0.9 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

at 480 V rated value7.6 A

at 600 V rated value9 A

— at 110/120 V rated value0.33 hp

— at 230 V rated value1 hp

— at 200/208 V rated value2 hp

— at 220/230 V rated value3 hp

— at 460/480 V rated value5 hp

— at 575/600 V rated value7.5 hp

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA

— with type of coordination 1 requiredgG: 35 A (690 V,100 kA), aM: 20 A (690 V,100 kA), BS88: 35 A (415 V,80 kA)

— with type of coordination 2 requiredgG: 20 A (690 V, 100 kA), aM: 16 A (690 V, 100 kA), BS88: 20 A (415 V, 80 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

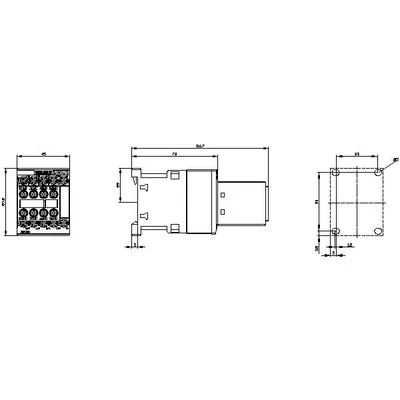

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height58 mm

width45 mm

depth117 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

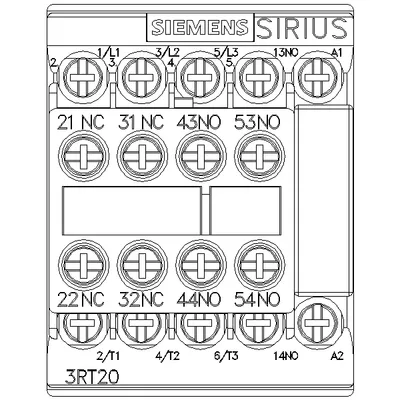

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for main contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

solid0.5 ... 4 mm²

stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

solid or stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

AWG number as coded connectable conductor cross section for main contacts20 ... 12

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 12

Safety related data

mirror contact according to IEC 60947-4-1Yes

positively driven operation according to IEC 60947-5-1No

suitable for safety functionYes

suitability for use safety-related switching OFFYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1.18 kg

global warming potential [CO2 eq] / during operation38.5 kg

global warming potential [CO2 eq] / after end of life-0.155 kg

global warming potential [CO2 eq] / total39.6 kg

Accessories 73

Genuine accessories that can be used with the Siemens 3RT2016-1CK27 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RH2911-1HA22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1LA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1FA22	Aksesuar · Auxiliary switch · auxiliary switches
3RA2912-2H	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RH2911-1HA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1FA40	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA31	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1XA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1XA31-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA01	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA10	Aksesuar · Auxiliary switch · auxiliary switches
3RH2914-1GP11	Aksesuar · Coupling links · coupling links
3RA2813-1FW10	Aksesuar
3RT1916-4KA1	Aksesuar · Plugs, adapters and terminals · adapters
3RH2911-1NF02	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1NF11	Aksesuar · Auxiliary switch · auxiliary switches
3RT2916-4MC00	Aksesuar · Miscellaneous accessories · Control Kits
3RT2916-4JA02	Aksesuar · Miscellaneous accessories · insulation stops
3RH2911-1NF20	Aksesuar · Auxiliary switch · auxiliary switches
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RA2813-1AW10	Aksesuar
3RT2916-4MA10	Aksesuar · Sealing covers · sealing covers
3RT2916-1GA00	Aksesuar · Additional load modules · additional load modules
3RA2815-1AW10	Aksesuar
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RT2926-1QT00	Aksesuar · LED modules · LED display indicator modules
3RA2814-1FW10	Aksesuar
3RA2816-0EW20	Aksesuar
3RT1916-4KA2	Aksesuar · Plugs, adapters and terminals · adapters
3RT2916-1PA1	Aksesuar · EMC suppression modules · EMC suppression modules
3RA2916-1A	Aksesuar · Wiring modules, connectors and kits · link modules
3RH2911-1AA10	Aksesuar · Auxiliary switch · auxiliary switches
3RR2241-1FW30	Aksesuar
3RR2141-1AW30	Aksesuar
3RR2441-1AA40	Aksesuar
3RR2241-1FA30	Aksesuar
3RT1900-4RE01	Aksesuar · Miscellaneous accessories · plugs
3RH2911-1MA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1MA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1LA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA13	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA12	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1FC22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1FB22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1FB11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA02	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1BA10	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1FA04	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1BA01	Aksesuar · Auxiliary switch · auxiliary switches
3RA2913-3EA1	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2913-3DA1	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2815-1FW10	Aksesuar
3RA2814-1AW10	Aksesuar
3RA2812-1DW10	Aksesuar
3RA2811-1CW10	Aksesuar
3RH2916-1FA22	Aksesuar · Auxiliary switch · auxiliary switches
3RA2913-3K	Aksesuar · Terminals · infeed terminals
3RA2913-2BB1	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2913-2AA1	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RH2911-1AA01	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1HA03	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1DA02	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1DA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2916-1XA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1YA21-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-1FA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RT1916-4RD01	Aksesuar · Miscellaneous accessories · adapters
3RT1916-4BB31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RT1916-4BA31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RT2916-2BL01	Aksesuar · OFF-delay device · OFF-delay device
3RT2916-2BK01	Aksesuar · OFF-delay device · OFF-delay device
