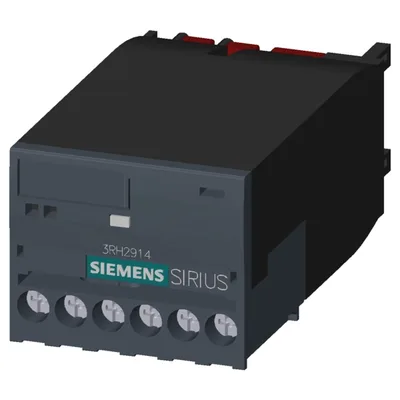

Siemens 3RH2914-1GP11
coupling link 24 V DC, screw terminal, for front-side mounting on contactors 3RT20 and auxiliary contactors 3RH2
product brand nameSIRIUS
product categoryCoupling links
product designationCoupling link
product type designation3RH29
size of contactorS00, S0, S2, S3
product component protective wiringYes
About This Product
coupling link 24 V DC, screw terminal, for front-side mounting on contactors 3RT20 and auxiliary contactors 3RH2
Siemens 3RH2914-1GP11
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIRIUS
product categoryCoupling links
product designationCoupling link
product type designation3RH29
General technical data
size of contactorS00, S0, S2, S3
product component protective wiringYes
insulation voltage rated value300 V
degree of pollution3
protection class IP on the frontIP20
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight93.38 g
type of voltage of the control supply voltageDC
control supply voltage 1 at DC rated value24 V
initial value0.7
full-scale value1.25
number of NO contacts for auxiliary contacts instantaneous contact1
at 24 V6 A
at 230 V6 A
at 24 V3 A
at 230 V3 A
at 24 V1 A
at 110 V0.2 A
at 220 V0.1 A
Ambient conditions
during operation-25 ... +60 °C
during storage-40 ... +80 °C

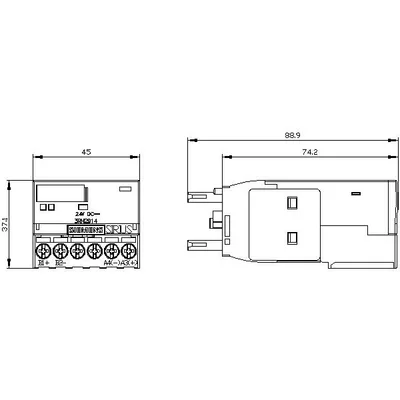

Installation/ mounting/ dimensions
mounting positionany
fastening methoddirect mounting
height35 mm
width45 mm
depth50 mm
Connections/ Terminals
solid or stranded0.5 ... 2.5 mm²
finely stranded with core end processing0.5 ... 1.5 mm²
— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
— finely stranded with core end processing2x (0.5 ... 1.5 mm²)
