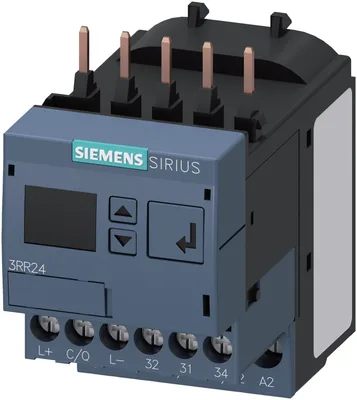

Siemens 3RR2441-1AA40

Current monitoring relay for IO-Link, can be mounted to Contactor 3RT2, Size S00 Apparant/active current monitoring 1.6-16 A, 20-400 Hz, 3-phase Supply voltage 24 V DC 1 change-over contact Monitoring for Current overshoot and undershoot Current asymmetry Phase failure, Cable break Phase sequence, Residual current Blocking current, Switching cycle and Operating hours counter Warning and alarm thresholds Auto-reset or manual reset ON delay 0-9999.9 s OFF delay 0-9999.9 s Reclosing delay 0-300 min Screw connection system

SiemensMFR # 3RR2441-1AA40SKU # CEY-8EF3B02F144A

product brand nameSIRIUS

product designationMonitoring relays

product type designation3RR22

product functioncurrent monitoring

operating apparent power rated value2.5 V·A

with degree of pollution 3 rated value690 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3RR2441-1AA40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMonitoring relays

design of the productdigitally adjustable, 3-phase current monitoring, IO-Link

product type designation3RR22

General technical data

size of contactor can be combined company-specificS00

product functioncurrent monitoring

operating apparent power rated value2.5 V·A

with degree of pollution 3 rated value690 V

type of voltage of the operating voltage for actuationDC

surge voltage resistance rated value6 kV

at 24 V90 mA

at 240 V12 mA

on the frontIP20

of the terminalIP20

shock resistance15 g / 11 ms

vibration resistance10 ... 55 Hz / 0.35 mm

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

reference code according to IEC 81346-2K

relative repeat accuracy2 %

Substance Prohibitance (day/month/year)10/01/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.23 kg

Control circuit/ Control

control supply voltage at DC rated value24 V

Supply voltage

type of voltage of the supply voltageDC

supply voltage 1 at DC rated value24 V

relative negative tolerance of the supply voltage25 %

relative positive tolerance of the supply voltage25 %

Measuring circuit

type of current for monitoringAC

11.6 ... 16 A

21.6 ... 16 A

when starting0 ... 999.9 s

with lower or upper limit violation0 ... 999.9 s

adjustable switching hysteresis for measured current value0.1 ... 3 A

accuracy of digital display+/-1 digit

Precision

temperature drift per °C0.1 %/°C

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A

Communication/ Protocol

protocol is supported IO-Link protocolYes

IO-Link transfer rateCOM2 (38,4 kBaud)

point-to-point cycle time between master and IO-Link device minimum10 ms

type of voltage supply via input/output link masterYes

of the address range of the inputs with cyclical transfer total4 byte

of the address range of the outputs with cyclical transfer total2 byte

Auxiliary circuit

for auxiliary contacts1

delayed switching1

at 24 V3 A

at 230 V3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

contact rating of auxiliary contacts according to ULB300 / R300

Main circuit

operating power rated value2.5 W

ampacity of the semiconductor output in SIO mode200 mA

operational current at 17 V minimum5 mA

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1ambience A (industrial sector)

Safety related data

product function suitable for safety functionNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for main circuitNo

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionscrew terminal

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

solid or stranded0.75 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 14)

AWG number as coded connectable conductor cross section for main contacts20 ... 12

tightening torque with screw-type terminals0.8 ... 1.2 N·m

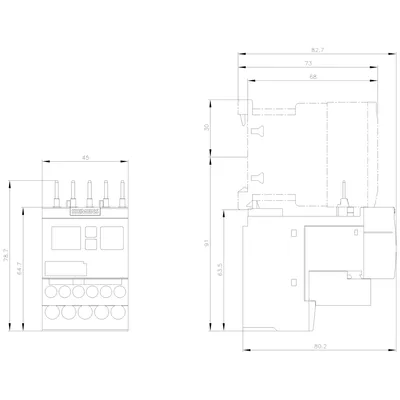

Installation/ mounting/ dimensions

mounting positionany

fastening methoddirect mounting

height79 mm

width45 mm

depth80 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side6 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side6 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C
