How can I get a price quote for Siemens 3RH2911-1NF02?

You can request a fast quote for Siemens 3RH2911-1NF02 from Yılsa Engineering. Reference part number CEY-8EF3B0394790. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RH2911-1NF02 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RH2911-1NF02 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RH2911-1NF02?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

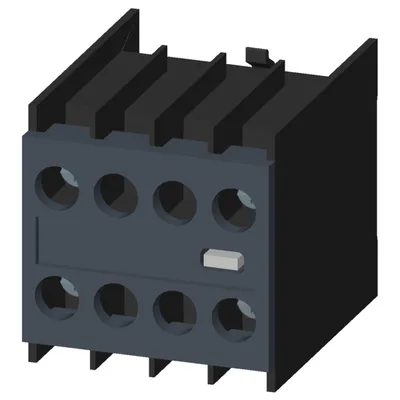

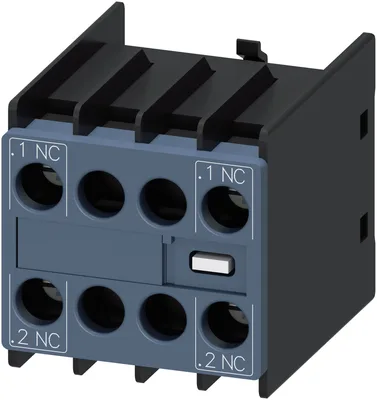

Siemens 3RH2911-1NF02

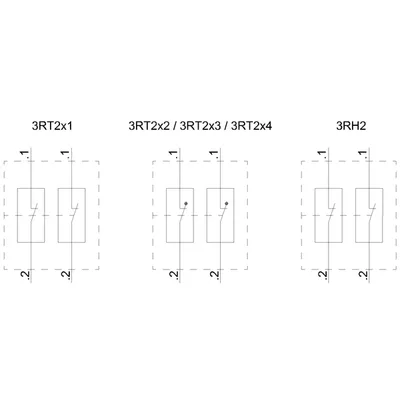

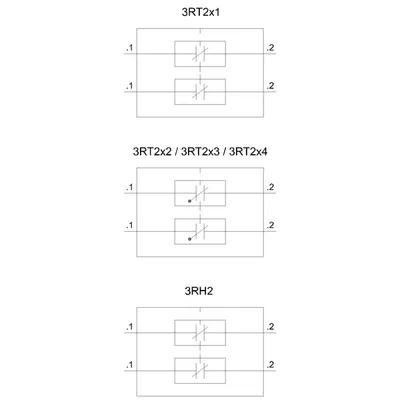

auxiliary switch, solid-state compatible, on the front, 2 NC, .1/.2, --/--, --/--, .1/.2, current path: 1 NC (solid-state compatible), --, --, 1 NC (solid-state compatible), screw terminal, for contactors 3RT2 and contactor relays 3RH2

SiemensMFR # 3RH2911-1NF02SKU # CEY-8EF3B0394790

product brand nameSIRIUS

product categoryAuxiliary switch

product designationauxiliary switch

design of the productfor snapping onto the front

product type designation3RH29

suitability for usefor 3RT2.1, 3RT2.2, 3RT2.3, 3RT2.4, 3RH2

Have questions?Chat on WhatsApp

About This Product

Siemens 3RH2911-1NF02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryAuxiliary switch

product designationauxiliary switch

design of the productfor snapping onto the front

product type designation3RH29

suitability for usefor 3RT2.1, 3RT2.2, 3RT2.3, 3RT2.4, 3RH2

General technical data

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

protection class IP on the frontIP20

mechanical service life (operating cycles) typical5 000 000

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0.043 g

instantaneous contact2

lagging switching0

instantaneous contact0

leading contact0

number of CO contacts of auxiliary contacts instantaneous contact0

at 24 V0.3 A

at 48 V0.3 A

at 60 V0.3 A

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (5 V, 1 mA)

Ambient conditions

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Safety related data

mirror contact according to IEC 60947-4-1Yes; with 3RT2.2/3/4

positively driven operation according to IEC 60947-5-1No

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredFF microfuse 2 A (250 V, 1 kA)

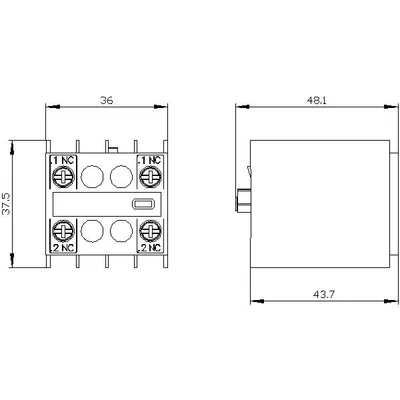

Installation/ mounting/ dimensions

fastening methodsnap-on mounting

height37.5 mm

width36 mm

depth43.7 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.375 kg

global warming potential [CO2 eq] / during operation0.0014 kg

global warming potential [CO2 eq] / after end of life0.0202 kg

global warming potential [CO2 eq] / total0.397 kg
