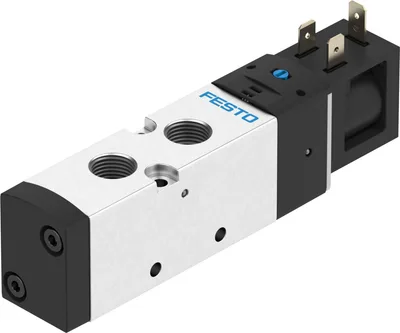

Festo VUVS-LK25-M52-AD-G14-1B2-S
Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size26.5
pneumatic working portG1/4
Operating voltage24 V DC
Operating pressure0.15, 0.8
About This Product
Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS
Festo VUVS-LK25-M52-AD-G14-1B2-S
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size26.5
Standard nominal flow rate (standardised to DIN 1343)1000
pneumatic working portG1/4
Operating voltage24 V DC
Operating pressure0.15, 0.8
Operating pressure1.5, 8
DesignPiston gate valve
Type of resetPneumatic spring
Degree of protectionIP65, With plug socket, To IEC 60529
Nominal size6.7
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, Non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991049
lapOverlap
b value0.45
C value3.86
Switching time off22
Switching time on20
Duty cycle100%
Max. positive test pulse with 0 signal2500
Max. negative test pulse with 1 signal1100
Characteristic coil data24 V DC: 3.3 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature-5, 50
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5, 50
Product weight250
Electrical connectionType B, To industry standard (11 mm)
Type of mountingOn manifold rail, With through-hole
Breather connectionNot ducted
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material piston slideWrought aluminium alloy
Accessories 80
Genuine accessories that can be used with the Festo VUVS-LK25-M52-AD-G14-1B2-S motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| KMF-1-24DC-2.5-LED | Plug socket with cable · Electrical accessories | |
| MF-LD-12-24DC | Illuminating seal · Electrical accessories | |
| MSSD-F | Plug socket · Electrical accessories | |
| VAME-B10-25-MK | Assortment of spare parts · Mounting accessories | |
| VAMC-B10-25-CH2-S | Cover cap · General accessories | |
| VABM-B10-25E-G12-2 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-4 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-5 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-6 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-7 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-8 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-9 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-10 | Manifold block · Connection accessories | |
| U-1/4 | Silencer · Silencer | |
| QS-G1/4-8 | Push-in fitting · Fittings | |
| QS-G1/4-8-I | Push-in fitting · Fittings | |
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Fittings | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| U-1/4-B | Silencer · Silencer | |
| U-3/8-B | Silencer · Silencer | |
| KMF-1-24DC-5-LED | Plug socket with cable · Electrical accessories | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| KMF-1-24-10-LED | Plug socket with cable · Electrical accessories | |
| U-1/4-20 | Silencer · Silencer | |
| MSSD-F-M16 | Plug socket · Electrical accessories | |
| ASLR-C-E4 | Inscription label · General accessories | |
| VAME-B10-20-W | Wall mounting · Mounting accessories | |
| VAME-B10-25-A | Foot mounting · Mounting accessories | |
| VABM-B10-25-G12-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-2-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-3-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-4-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-25S-G38-2 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-4 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-5 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-6 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-7 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-8 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-9 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-10 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-2 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-4 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-5 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-6 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-7 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-8 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-9 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-10 | Manifold block · Connection accessories |
