How can I get a price quote for FESTO MSSD-F-M16?

You can request a fast quote for FESTO MSSD-F-M16 from Yılsa Engineering. Reference part number CEY-937FC781F5F3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MSSD-F-M16 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MSSD-F-M16 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MSSD-F-M16?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

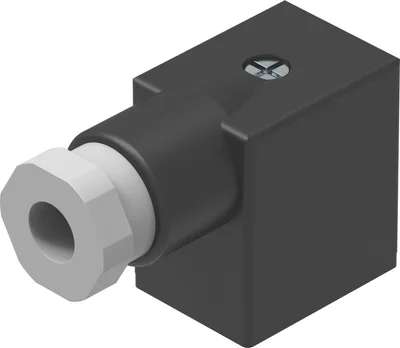

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO MSSD-F-M16

Plug socket. For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils. For connecting individual valves. Available with LED display

FESTOMFR # MSSD-F-M16SKU # CEY-937FC781F5F3

Frequency of connection50

Cable outletAngled

Note on cable outletCan be rotated 180°

Product weight35

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Have questions?Chat on WhatsApp

About This Product

Plug socket. For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils. For connecting individual valves. Available with LED display

FESTO MSSD-F-M16

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Frequency of connection50

Cable outletAngled

Note on cable outletCan be rotated 180°

Product weight35

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, connector systemPlug pattern type B to industry standard, 11 mm

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingOn solenoid valve via M3 central screw

Electrical connection 2, connector systemScrew terminal

Operational voltage range DC0, 250

Operational voltage range AC0, 250

Current rating at 40° C6

Immunity to surge2

Protective conductor connectionAvailable

Cable fittingM16x1.5

Cable diameter6, 8

Nominal cross section conductor0.75

Degree of protectionIP65

Note on degree of protectionIn mounted state

Ambient temperature-20, 115

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material housingReinforced PA

Housing colourBlack

Material sealsHNBR

Accessories 2
