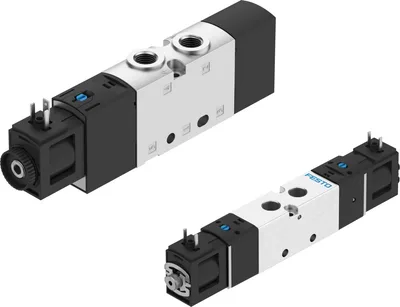

Festo VUVS-25
Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS
Type of actuationElectrical
Valve size26.5
Operating pressure-0.9, 10
DesignPiston gate valve, Poppet seat
Type of resetMechanical spring, Pneumatic spring
Approvalc UL us - Recognised (Oil)
About This Product
Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS
Festo VUVS-25
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open, 5/2-way, double solenoid, 5/2-way, single solenoid
Type of actuationElectrical
Valve size26.5
Standard nominal flow rate (standardised to DIN 1343)1000, 1300
pneumatic working portG1/4, 1/4 NPT, QS-6, QS-8, QS-10, QS-1/4, QS-5/16, QS-3/8
Operating voltage240V AC, 24V AC, 24 V DC, Via solenoid coil, must be ordered separately
Operating pressure-0.9, 10
DesignPiston gate valve, Poppet seat
Type of resetMechanical spring, Pneumatic spring
Approvalc UL us - Recognised (Oil)
Maritime classificationSee certificate
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX), To EU Low Voltage Directive, In accordance with EU RoHS Directive
Explosion protection certification outside the EUClass I, Div. 1 (US), Class II, Div. 1 (US), Class III, Div. 1 (US), EPL Db (IEC-EX), EPL Dc (GB), EPL Ga (IEC-EX), EPL Gb (IECEx), EPL Gc (GB)
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityDNV 15.0189X/02, DNVGL-TAA000011J
ATEX category gasII 2G, II 3G
ATEX category dustII 2D, II 3D
Explosion ignition protection type for gasEx ec IIC T5 Gc X, Ex ia IIC T6, T4 Gb, Ex m II T4, Ex mb IIC T6 Gb
Explosion ignition protection type for dustEx mb IIIC T80°C Db, Ex mb tb IIIC T80°C Db, Ex tb IIIC T80°C, T130°C Db IP65, Ex tc IIIC T115°C Dc X, Ex tc IIIC T95°C Dc X
Explosion ambient temperatureT6, T80°C: -40°C <= Ta <= +50°C
Degree of protectionIP65, IP67, With plug socket, To IEC 60529
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Explosion protectionClass I, Div. 1 (US), Class II, Div. 1 (US), Class III, Div. 1 (US), The information in the certificate must be observed!, Zone 0 (IEC-EX), Zone 1 (ATEX), Zone 1 (IEC-EX), Zone 2 (ATEX), Zone 2 (UKEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail, With through-hole
Breather connectionNot ducted
Note on materialsRoHS compliant
Material housingDie-cast aluminium, painted
Material screwsGalvanised steel
Accessories 152
Genuine accessories that can be used with the Festo VUVS-25 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| U-1/4 | Silencer · Silencer | |
| U-1/4-B | Silencer · Silencer | |
| MF-LD-12-24DC | Illuminating seal · Electrical accessories | |
| MF-LD-230AC | Illuminating seal · Electrical accessories | |
| KMF-1-24DC-2.5-LED | Plug socket with cable · Electrical accessories | |
| KMF-1-230AC-2.5 | Plug socket with cable · Electrical accessories | |
| KMF-1-24DC-5-LED | Plug socket with cable · Electrical accessories | |
| KMF-1-230AC-5 | Plug socket with cable · Electrical accessories | |
| MSSD-F | Plug socket · Electrical accessories | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| MSSD-EB | Plug socket · Electrical accessories | |
| KMEB-1-24-2.5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-1-24-5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-1-230AC-2.5 | Plug socket with cable · Electrical accessories | |
| KMEB-1-230AC-5 | Plug socket with cable · Electrical accessories | |
| MEB-LD-12-24DC | Illuminating seal · Electrical accessories | |
| MEB-LD-230AC | Illuminating seal · Electrical accessories | |
| QSM-M5-4-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| KMEB-1-24-10-LED | Plug socket with cable · Electrical accessories | |
| KMF-1-24-10-LED | Plug socket with cable · Electrical accessories | |
| U-1/4-20 | Silencer · Silencer | |
| MSSD-F-M16 | Plug socket · Electrical accessories | |
| MSSD-EB-M12 | Socket · Electrical accessories | |
| ASLR-C-E4 | Inscription label · General accessories | |
| MSSD-EB-M12-24VDC-SD-EX | Plug socket · Electrical accessories | |
| VAME-B10-20-W | Wall mounting · Mounting accessories | |
| AMTE-M-LH-G14 | Silencer · Silencer | |
| VAME-B10-25-A | Foot mounting · Mounting accessories | |
| VAMC-B10-C-B-S8 | Seal-SET · Mounting accessories | |
| VABM-B10-25-G12-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-N12-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-2-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-3-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-25-G12-4-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-25E-G12-2 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-4 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-5 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-6 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-7 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-8 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-9 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-10 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-2 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-4 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-5 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-6 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-7 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-8 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-9 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-10 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-2 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-4 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-5 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-6 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-7 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-8 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-9 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-10 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-2 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-4 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-5 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-6 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-7 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-8 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-9 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-10 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-2-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-3-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-4-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-5-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-6-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-7-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-8-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-9-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-G12-10-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-2-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-3-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-4-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-5-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-6-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-7-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-8-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-9-P3 | Manifold block · Connection accessories | |
| VABM-B10-25E-N12-10-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-2-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-3-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-4-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-5-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-6-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-7-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-8-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-9-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-G38-10-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-2-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-3-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-4-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-5-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-6-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-7-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-8-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-9-P3 | Manifold block · Connection accessories | |
| VABM-B10-25S-N38-10-P3 | Manifold block · Connection accessories | |
| VABM-B10-25EEE-G12-2 | Manifold block · Connection accessories | |
| VABM-B10-25EEE-G12-2-P3 | Manifold block · Connection accessories | |
| VAMC-B10-20-CH2 | Cover cap · General accessories | |
| VACF-B-B2-5 | Solenoid coil · Electrical accessories | |
| VACF-B-B2-1 | Solenoid coil · Electrical accessories | |
| VACF-B-B2-7 | Solenoid coil · Electrical accessories | |
| VACF-B-B2-1A | Solenoid coil · Electrical accessories | |
| VACF-B-B2-7A | Solenoid coil · Electrical accessories | |
| VACF-B-B2-16B | Solenoid coil · Electrical accessories | |
| VACF-B-B2-3W | Solenoid coil · Electrical accessories | |
| VACF-B-C1-5 | Solenoid coil · Electrical accessories | |
| VACF-B-C1-1 | Solenoid coil · Electrical accessories | |
| VACF-B-C1-7 | Solenoid coil · Electrical accessories | |
| VACF-B-C1-1A | Solenoid coil · Electrical accessories | |
| VACF-B-C1-7A | Solenoid coil · Electrical accessories | |
| VACF-B-C1-16B | Solenoid coil · Electrical accessories | |
| VACF-B-C1-3W | Solenoid coil · Electrical accessories | |
| VAMC-B10-B-B-S8 | Seal-SET · Mounting accessories | |
| VAME-B10-25-MK | Assortment of spare parts · Mounting accessories |
Related Products
View Details
Festo
VUVG-...T1
MFR #VUVG-...T1
SKU #YLSX2D4SAW0EEKW
View Details
Festo
VUVG-B10Z-M32C-RZT-F-1T1L
MFR #VUVG-B10Z-M32C-RZT-F-1T1L
SKU #YLSQZTBLMZ6IHOT
View Details
Festo
VUVG
MFR #VUVG
SKU #YLSK5LKLZINUOQB
View Details
Festo
VUWG
MFR #VUWG
SKU #YLSGV6ELGMVEOXL
View Details
Festo
VUVG-B14Z-M32C-AZT-F-1T1L
MFR #VUVG-B14Z-M32C-AZT-F-1T1L
SKU #YLSFGSMCMESWXAL
View Details
Festo
VUVG-B14Z-M32U-AZT-F-1T1L
MFR #VUVG-B14Z-M32U-AZT-F-1T1L
SKU #YLSZLONZJJHJLYV
View Details
Festo
VUVG-B10-T32H-MZT-F-1R8L
MFR #VUVG-B10-T32H-MZT-F-1R8L
SKU #YLSOPMRWYPTLJ8T
View Details
Festo
VUVG-B10-T32U-MZT-F-1R8L
MFR #VUVG-B10-T32U-MZT-F-1R8L
SKU #YLSJA8FZCEY6TAW
View Details
Festo
VUVG-L10-T32H-MT-M5-1R8L
MFR #VUVG-L10-T32H-MT-M5-1R8L
SKU #YLS2HCIBEMMWU2N
Featured Products
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Related Searches
Festo VUVS-25 priceFesto VUVS-25 quotebuy Festo VUVS-25VUVS-25 priceVUVS-25 stock availabilityFesto spare partsFesto VUVS-25 equivalentFesto VUVS-25 specifications
