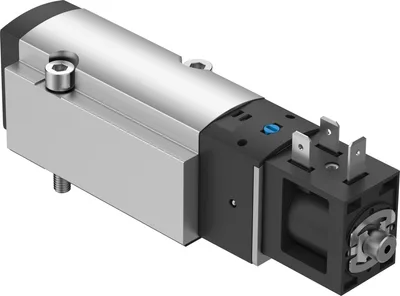

Festo VSVA-BK-M52-AD-D1-1B2

Solenoid valve. Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface. Electrical connection via plug type C. Robust metal housing. Manifold assembly with mixed sizes possible

FestoMFR # VSVA-BK-M52-AD-D1-1B2SKU # YLSZX6D0UXMGGCC

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width38

Valve size42

pneumatic working portSub-base size 1 to ISO 5599-1

Operating voltage24 V DC

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface. Electrical connection via plug type C. Robust metal housing. Manifold assembly with mixed sizes possible

Festo VSVA-BK-M52-AD-D1-1B2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width38

Valve size42

Standard nominal flow rate (standardised to DIN 1343)1200

pneumatic working portSub-base size 1 to ISO 5599-1

Operating voltage24 V DC

Operating pressure0.3, 0.8

Operating pressure3, 8

DesignPiston slide with sealing ring

Type of resetPneumatic spring

Degree of protectionIP65, With plug socket, To IEC 60529

Nominal size6.3

Grid dimension43

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideDetenting, Non-detenting

ISO code151

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991049

lapUnderlap

Signal status displayWith accessories

b value0.26

C value5.87

Flow rate of valve1342

Flow rate of valve on individual sub-base1341

Flow rate of pneumatically interlinked valve1313

Switching time off20.7

Switching time on17.3

Duty cycle100%

Max. positive test pulse with 0 signal2500

Max. negative test pulse with 1 signal1100

Nominal operating voltage DC24

Characteristic coil data24 V DC: 3.3 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Max. tightening torque for valve mounting5

Product weight321

Electrical connectionType B, To industry standard (11 mm)

Type of mountingOn sub-base

Breather connectionNot ducted

Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Material piston slideWrought aluminium alloy

Material screwsGalvanised steel

Accessories 63

Genuine accessories that can be used with the Festo VSVA-BK-M52-AD-D1-1B2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NAS-1/4-1A-ISO	Individual sub-base · Connection accessories
KMF-1-24DC-2.5-LED	Plug socket with cable · Electrical accessories
MSSD-F	Plug socket · Electrical accessories
NDV-1-ISO	Cover plate · Connection accessories
NEV-1DA/DB-ISO	End plate kit · Connection accessories
NSC-1/4-1-ISO	Isolating disc · Connection accessories
NAS-1/4-NPT-1A	Individual sub-base · Connection accessories
NEV-1DA/DB-NPT	End plate kit · Connection accessories
NAVW-1/4-1-ISO	Manifold sub-base with angled connections · Connection accessories
NAVW-1/4-NPT-1	Manifold sub-base with angled connections · Connection accessories
VABF-S1-1-R1C2-C-6	Regulator plate · Connection accessories
VABF-S1-1-R1C2-C-10	Regulator plate · Connection accessories
VABF-S1-1-R3C2-C-6	Regulator plate · Connection accessories
VABF-S1-1-R3C2-C-10	Regulator plate · Connection accessories
VABF-S1-1-R2C2-C-6	Regulator plate · Connection accessories
VABF-S1-1-R2C2-C-10	Regulator plate · Connection accessories
MF-LD-12-24DC	Illuminating seal · Electrical accessories
VABV-S1-1HSB-G38	Manifold sub-base · Connection accessories
VABV-S1-1HSB-N38	Manifold sub-base · Connection accessories
VABS-S1-1HS-N38	Sub-base · Connection accessories
VABS-S1-1HS-G38	Sub-base · Connection accessories
NAU-1/4-1B-ISO	Individual sub-base · Connection accessories
NAV-1/4-1C-ISO	Manifold sub-base · Connection accessories
NAW-1/4-1E-ISO	Angled connection plate · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAV-1/4-NPT-1C	Manifold sub-base · Connection accessories
KMF-1-24DC-5-LED	Plug socket with cable · Electrical accessories
NZV-1-2	Intermediate plate · Connection accessories
KMF-1-24-10-LED	Plug socket with cable · Electrical accessories
MSSD-F-M16	Plug socket · Electrical accessories
VABF-S1-1-R4C2-C-6	Regulator plate · Connection accessories
VABF-S1-1-R4C2-C-10	Regulator plate · Connection accessories
VABF-S1-1-R5C2-C-6	Regulator plate · Connection accessories
VABF-S1-1-R5C2-C-10	Regulator plate · Connection accessories
VABF-S1-1-R6C2-C-6	Regulator plate · Connection accessories
VABF-S1-1-R6C2-C-10	Regulator plate · Connection accessories
VABF-S1-1-R7C2-C-6	Regulator plate · Connection accessories
VABF-S1-1-R7C2-C-10	Regulator plate · Connection accessories
VABF-S1-1-P1A3-G38	Vertical pressure supply plate · Connection accessories
VABF-S1-1-F1B1-C	Throttle plate · Connection accessories
VABF-S1-1-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABD-S1-1-P1-C	Separator plate · Connection accessories
VABD-S1-1-P2-C	Separator plate · Connection accessories
VABD-S1-1-P3-C	Separator plate · Connection accessories
VABD-S1-1-P6-C	Separator plate · Connection accessories
VABV-S1-1SB-G38	Sub-base · Connection accessories
VABV-S1-1SB-N38	Sub-base · Connection accessories
VABS-S1-1S-G38	Sub-base · Connection accessories
VABS-S1-1S-N38	Sub-base · Connection accessories
VABE-S1-1LZ-G12	End plate · Connection accessories
VABE-S1-1LZ-N12	End plate · Connection accessories
VABE-S1-1L-G12	End plate · Connection accessories
VABE-S1-1L-N12	End plate · Connection accessories
VABE-S1-1RZ-G12	End plate · Connection accessories
VABE-S1-1RZ-N12	End plate · Connection accessories
VABE-S1-1R-G12	End plate · Connection accessories
VABE-S1-1R-N12	End plate · Connection accessories
VABD-S1-1-P7-C	Duct separation · Connection accessories
VABF-S1-1-P1A12-G12	Supply plate · Connection accessories
VABF-S1-1-P1A12-N12	Supply plate · Connection accessories
VABF-S1-1-P1A11-G12	Supply plate · Connection accessories
VABF-S1-1-P1A11-N12	Supply plate · Connection accessories
NECV-B2W3L-P-P12	Plug socket · Electrical accessories
