How can I get a price quote for Festo VSVA-BK-B52-D-A1-1B2?

You can request a fast quote for Festo VSVA-BK-B52-D-A1-1B2 from Yılsa Engineering. Reference part number YLSKKEWGP4SNAL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VSVA-BK-B52-D-A1-1B2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VSVA-BK-B52-D-A1-1B2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VSVA-BK-B52-D-A1-1B2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

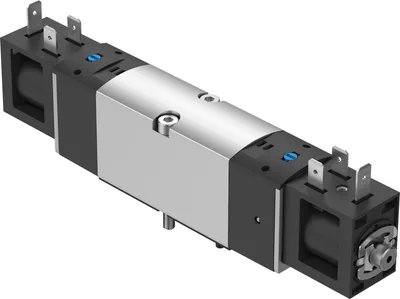

Festo VSVA-BK-B52-D-A1-1B2

Solenoid valve. Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface. Electrical connection via plug type C. Robust metal housing. Manifold assembly with mixed sizes possible

FestoMFR # VSVA-BK-B52-D-A1-1B2SKU # YLSKKEWGP4SNAL

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size26

pneumatic working portSub-base size 26 mm to ISO 15407-1

Operating voltage24 V DC

Operating pressure0.3, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface. Electrical connection via plug type C. Robust metal housing. Manifold assembly with mixed sizes possible

Festo VSVA-BK-B52-D-A1-1B2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size26

Standard nominal flow rate (standardised to DIN 1343)900

pneumatic working portSub-base size 26 mm to ISO 15407-1

Operating voltage24 V DC

Operating pressure0.3, 0.8

Operating pressure3, 8

DesignPiston slide with sealing ring

Degree of protectionIP65, With plug socket, To IEC 60529

Nominal size6.4

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 15407-1

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991005

lapUnderlap

Signal status displayWith accessories

b value0.3

C value3.92

Flow rate of valve915

Flow rate of valve on individual sub-base915

Flow rate of pneumatically interlinked valve880

Switching time reversal10.8

Duty cycle100%

Max. positive test pulse with 0 signal2500

Max. negative test pulse with 1 signal1100

Nominal operating voltage DC24

Characteristic coil data24 V DC: 3.3 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Max. tightening torque for valve mounting2.4

Product weight319

Electrical connectionType B, To industry standard (11 mm)

Type of mountingOn sub-base

Breather connectionNot ducted

Pneumatic connection, port 1Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 2Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 3Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 4Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 5Sub-base size 26 mm to ISO 15407-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Material piston slideWrought aluminium alloy

Material screwsGalvanised steel

Accessories 32

Genuine accessories that can be used with the Festo VSVA-BK-B52-D-A1-1B2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KMF-1-24DC-2.5-LED	Plug socket with cable · Electrical accessories
NAW-1/4-01-VDMA	Manifold sub-base · Connection accessories
MSSD-F	Plug socket · Electrical accessories
NAS-1/4-01-VDMA	Individual sub-base · Connection accessories
MF-LD-12-24DC	Illuminating seal · Electrical accessories
NEV-01-VDMA	End plate kit · Connection accessories
NSC-1/2-01-VDMA	Isolating disc · Connection accessories
NDV-01-VDMA	Cover plate · Connection accessories
VABF-S3-1-R1C2-C-6	Regulator plate · Connection accessories
VABF-S3-1-R1C2-C-10	Regulator plate · Connection accessories
VABF-S3-1-R3C2-C-6	Regulator plate · Connection accessories
VABF-S3-1-R3C2-C-10	Regulator plate · Connection accessories
VABF-S3-1-R2C2-C-6	Regulator plate · Connection accessories
VABF-S3-1-R2C2-C-10	Regulator plate · Connection accessories
VABF-S3-1-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABF-S3-1-F1B1-C	Throttle plate · Connection accessories
KMF-1-24DC-5-LED	Plug socket with cable · Electrical accessories
NSC-1/8-01-VDMA	Isolating disc · Connection accessories
NZV-01/02-VDMA	Intermediate plate · Connection accessories
NEV-02-01-VDMA	End plate kit · Connection accessories
KMF-1-24-10-LED	Plug socket with cable · Electrical accessories
MSSD-F-M16	Plug socket · Electrical accessories
VABF-S3-1-R4C2-C-6	Regulator plate · Connection accessories
VABF-S3-1-R4C2-C-10	Regulator plate · Connection accessories
VABF-S3-1-R5C2-C-6	Regulator plate · Connection accessories
VABF-S3-1-R5C2-C-10	Regulator plate · Connection accessories
VABF-S3-1-P1A3-G14	Vertical pressure supply plate · Connection accessories
VABF-S3-1-R6C2-C-6	Regulator plate · Connection accessories
VABF-S3-1-R6C2-C-10	Regulator plate · Connection accessories
VABF-S3-1-R7C2-C-6	Regulator plate · Connection accessories
VABF-S3-1-R7C2-C-10	Regulator plate · Connection accessories
NECV-B2W3L-P-P12	Plug socket · Electrical accessories
