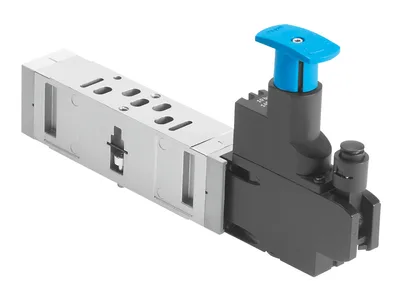

FESTO VABF-S3-1-R2C2-C-6

Regulator plate

FESTOMFR # VABF-S3-1-R2C2-C-6SKU # CEY-937FC781F456

Construction width26

Based on standardISO 15407-1

Mounting positionAny

Vertical pneumatic linkagePressure regulator for 2

Symbol00991581

Selection of pressure gaugepossible

Have questions?Chat on WhatsApp

About This Product

FESTO VABF-S3-1-R2C2-C-6 (Regulator plate) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VABF-S3-1-R2C2-C-6 — price, stock availability and technical specifications.

FESTO VABF-S3-1-R2C2-C-6

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Construction width26

Based on standardISO 15407-1

Mounting positionAny

Vertical pneumatic linkagePressure regulator for 2

Controller functionOutput pressure constant, With secondary exhausting

Symbol00991581

Selection of pressure gaugepossible

Pressure regulation range0.2, 0.6

Pressure regulation range2, 6

Pressure regulation range29, 87

Inlet pressure 10.5, 10

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Degree of protectionIP65, NEMA 4

Ambient temperature-5, 50

Product weight305

Mounting with vertical stackingOn manifold sub-base, On individual sub-base

Pressure gauge connectionWith retaining clamp

Note on materialsRoHS compliant

Material control panelProcess automation

Material regulator housingDie-cast aluminium

Accessories 7

Genuine accessories that can be used with the FESTO VABF-S3-1-R2C2-C-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PAGN-26-16-P10	Pressure gauge · Connection accessories
PAGN-26-10-P10	Pressure gauge · Connection accessories
PAGN-26-232P-P10	Pressure gauge · Connection accessories
PAGN-26-145P-P10	Pressure gauge · Connection accessories
PAGN-26-1.6M-P10	Pressure gauge · Connection accessories
PAGN-26-1M-P10	Pressure gauge · Connection accessories
PAGN-26-10-P10-RG	Pressure gauge · Connection accessories
