How can I get a price quote for Festo VSVA-B-P53E-T-D2-F8?

You can request a fast quote for Festo VSVA-B-P53E-T-D2-F8 from Yılsa Engineering. Reference part number YLSUCXJSFCGMHKC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VSVA-B-P53E-T-D2-F8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VSVA-B-P53E-T-D2-F8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VSVA-B-P53E-T-D2-F8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

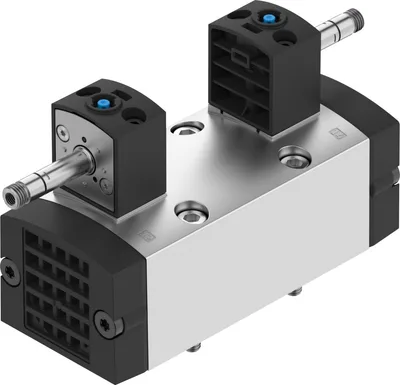

Festo VSVA-B-P53E-T-D2-F8

Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Comprehensive valve functions: 5/2, 5/3, 2x3/2, 2x2/2. Extensive range of electrical connection options. Wide variety of voltage variants, direct and alternating voltages. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Convenient valve configurator for selecting the required valve type. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible

FestoMFR # VSVA-B-P53E-T-D2-F8SKU # YLSUCXJSFCGMHKC

Valve function5/3 exhausted

Type of actuationElectrical

Construction width52

pneumatic working portSub-base size 2 to ISO 5599-1

Operating pressure0.3, 1

Operating pressure3, 10

Have questions?Chat on WhatsApp

About This Product

Festo VSVA-B-P53E-T-D2-F8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3 exhausted

Type of actuationElectrical

Construction width52

Nominal flow rate standardised according to ISO 87783600

pneumatic working portSub-base size 2 to ISO 5599-1

Operating pressure0.3, 1

Operating pressure3, 10

DesignPiston gate valve

Type of resetMechanical spring

Degree of protectionIP65, NEMA 4

Nominal size11.5

Grid dimension53

Exhaust-air functionCan be throttled, Via individual sub-base

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideDetenting via accessory

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991082

lapOverlap

Pilot pressure0.3, 1

Pilot pressure3, 10

Suitability for vacuumNo

b value0.23

C value7.667

Flow rate of valve3400

Flow rate of valve on individual sub-base2700

Flow rate of pneumatically interlinked valve2500

Max. switching frequency5

Switching time off82

Switching time on26

Switching time reversal40

Duty cycle100%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 50

Relative air humidity0 - 90%

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 50

Max. tightening torque for valve mounting2

Product weight720

Type of mountingOn sub-base

Pilot exhaust port 82M5, Not ducted

Pilot exhaust port 84M5, Not ducted

Pilot air port 12Sub-base size 2 to ISO 5599-1

Pilot air port 14Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1

Pilot control interfaceTo ISO 15218

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Material screwsSteel

Accessories 67

Genuine accessories that can be used with the Festo VSVA-B-P53E-T-D2-F8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEV-2DA/DB-ISO	End plate kit · Connection accessories
NDV-2-ISO	Cover plate · Connection accessories
NAS-3/8-2A-ISO	Individual sub-base · Connection accessories
NSC-3/8-2-ISO	Isolating disc · Connection accessories
NAVW-3/8-2-ISO	Manifold sub-base with angled connections · Connection accessories
VABF-S1-2-R1C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R1C2-C-10	Regulator plate · Connection accessories
VABV-S1-2SB-G12	Sub-base · Connection accessories
VABS-S1-2S-G12	Sub-base · Connection accessories
VABE-S1-2LZ-G34	End plate · Connection accessories
VABE-S1-2L-G34	End plate · Connection accessories
VABE-S1-2RZ-G34	End plate · Connection accessories
VABE-S1-2R-G34	End plate · Connection accessories
VACF-B-B2-5	Solenoid coil · Electrical accessories
VACF-B-B2-3W	Solenoid coil · Electrical accessories
VACF-B-B2-1	Solenoid coil · Electrical accessories
VACF-B-B2-7	Solenoid coil · Electrical accessories
VACF-B-B2-1A	Solenoid coil · Electrical accessories
VACF-B-B2-7A	Solenoid coil · Electrical accessories
VACF-B-B2-16B	Solenoid coil · Electrical accessories
VACF-A-A1-5	Solenoid coil · Electrical accessories
VACF-A-A1-3W	Solenoid coil · Electrical accessories
VACF-A-A1-1	Solenoid coil · Electrical accessories
VACF-A-A1-7	Solenoid coil · Electrical accessories
VACF-A-A1-1A	Solenoid coil · Electrical accessories
VACF-A-A1-7A	Solenoid coil · Electrical accessories
VACF-A-A1-16B	Solenoid coil · Electrical accessories
VACF-B-C1-5	Solenoid coil · Electrical accessories
VACF-B-C1-3W	Solenoid coil · Electrical accessories
VACF-B-C1-1	Solenoid coil · Electrical accessories
VACF-B-C1-7	Solenoid coil · Electrical accessories
VACF-B-C1-1A	Solenoid coil · Electrical accessories
VACF-B-C1-7A	Solenoid coil · Electrical accessories
VACF-B-C1-16B	Solenoid coil · Electrical accessories
VACF-B-R4-1L	Solenoid coil · Electrical accessories
VACF-B-R3-1RAL	Solenoid coil · Electrical accessories
VACF-B-R3-1L	Solenoid coil · Electrical accessories
VACF-B-R4-1RAL	Solenoid coil · Electrical accessories
VACF-B-B1-1	Solenoid coil · Electrical accessories
NAV-3/8-2C-ISO	Manifold sub-base · Connection accessories
NAW-3/8-2E-ISO	Angled connection plate · Connection accessories
NAU-3/8-2B-ISO	Individual sub-base · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAW-3/8-NPT-2E	Manifold sub-base with angled connections · Connection accessories
NAVW-3/8-NPT-2	Manifold sub-base with angled connections · Connection accessories
NZV-1-2	Intermediate plate · Connection accessories
VABF-S1-2-R2C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R2C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-P1A3-G12	Vertical pressure supply plate · Connection accessories
VABF-S1-2-F1B1-C	Throttle plate · Connection accessories
VABF-S1-2-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABV-S1-2SB-N12	Sub-base · Connection accessories
VABS-S1-2S-N12	Sub-base · Connection accessories
VABE-S1-2LZ-N34	End plate · Connection accessories
VABE-S1-2L-N34	End plate · Connection accessories
VABE-S1-2RZ-N34	End plate · Connection accessories
VABE-S1-2R-N34	End plate · Connection accessories
