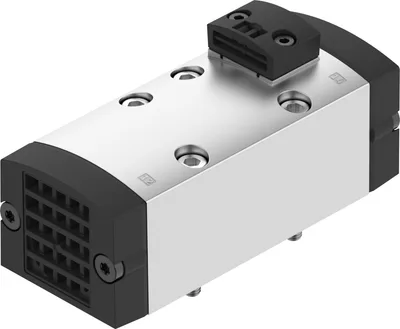

Festo VSPA-B-M52-A-D2

Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control

FestoMFR # VSPA-B-M52-A-D2SKU # YLSMFRHENSL8VJB

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width52

pneumatic working portSub-base size 2 to ISO 5599-1

Operating pressure0.3, 1.6

Operating pressure3, 16

Have questions?Chat on WhatsApp

About This Product

Festo VSPA-B-M52-A-D2 (Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VSPA-B-M52-A-D2 — price, stock availability and technical specifications.

Festo VSPA-B-M52-A-D2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width52

Nominal flow rate standardised according to ISO 87784100

pneumatic working portSub-base size 2 to ISO 5599-1

Operating pressure0.3, 1.6

Operating pressure3, 16

DesignPiston gate valve

Type of resetPneumatic spring

Nominal size11.5

Exhaust-air functionVia individual sub-base

Sealing principleSoft

Mounting positionAny

Type of pilotingDirect

Pilot air supplyExternal

Flow directionReversible

Symbol00991048

lapOverlap

Pilot pressure0.3, 1.6

Pilot pressure3, 16

Suitability for vacuumNo

b value0.31

C value8221

Flow rate of valve3800

Flow rate of valve on individual sub-base3100

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Max. tightening torque for valve mounting2

Product weight600

Type of mountingOn sub-base

Pilot air port 12Sub-base size 2 to ISO 5599-1

Pilot air port 14Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Material screwsSteel, Galvanised

Accessories 41

Genuine accessories that can be used with the Festo VSPA-B-M52-A-D2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NAV-3/8-2C-ISO	Manifold sub-base · Connection accessories
NEV-2DA/DB-ISO	End plate kit · Connection accessories
NAW-3/8-2E-ISO	Angled connection plate · Connection accessories
NDV-2-ISO	Cover plate · Connection accessories
NAS-3/8-2A-ISO	Individual sub-base · Connection accessories
NAU-3/8-2B-ISO	Individual sub-base · Connection accessories
NSC-3/8-2-ISO	Isolating disc · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAW-3/8-NPT-2E	Manifold sub-base with angled connections · Connection accessories
NAVW-3/8-2-ISO	Manifold sub-base with angled connections · Connection accessories
NAVW-3/8-NPT-2	Manifold sub-base with angled connections · Connection accessories
NZV-1-2	Intermediate plate · Connection accessories
VABF-S1-2-R1C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R1C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R2C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R2C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-P1A3-G12	Vertical pressure supply plate · Connection accessories
VABF-S1-2-F1B1-C	Throttle plate · Connection accessories
VABF-S1-2-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABV-S1-2SB-G12	Sub-base · Connection accessories
VABV-S1-2SB-N12	Sub-base · Connection accessories
VABS-S1-2S-G12	Sub-base · Connection accessories
VABS-S1-2S-N12	Sub-base · Connection accessories
VABE-S1-2LZ-G34	End plate · Connection accessories
VABE-S1-2LZ-N34	End plate · Connection accessories
VABE-S1-2L-G34	End plate · Connection accessories
VABE-S1-2L-N34	End plate · Connection accessories
VABE-S1-2RZ-G34	End plate · Connection accessories
VABE-S1-2RZ-N34	End plate · Connection accessories
VABE-S1-2R-G34	End plate · Connection accessories
VABE-S1-2R-N34	End plate · Connection accessories
