How can I get a price quote for Festo VSPA-B-D52-D2?

You can request a fast quote for Festo VSPA-B-D52-D2 from Yılsa Engineering. Reference part number YLSJDPS07BV1OX4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VSPA-B-D52-D2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VSPA-B-D52-D2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VSPA-B-D52-D2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

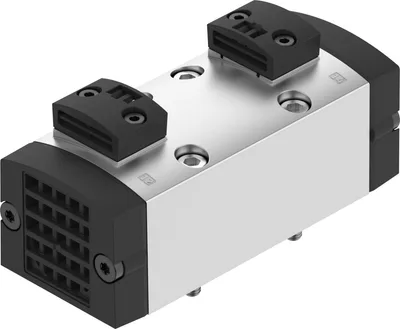

Festo VSPA-B-D52-D2

Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control

FestoMFR # VSPA-B-D52-D2SKU # YLSJDPS07BV1OX4

Valve function5/2-way, bistable, dominant

Type of actuationPneumatic

Construction width52

pneumatic working portSub-base size 2 to ISO 5599-1

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

Have questions?Chat on WhatsApp

About This Product

Festo VSPA-B-D52-D2 (Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VSPA-B-D52-D2 — price, stock availability and technical specifications.

Festo VSPA-B-D52-D2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, bistable, dominant

Type of actuationPneumatic

Construction width52

Nominal flow rate standardised according to ISO 87784000

pneumatic working portSub-base size 2 to ISO 5599-1

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

DesignPiston gate valve

Nominal size11.5

Exhaust-air functionVia individual sub-base

Sealing principleSoft

Mounting positionAny

Type of pilotingDirect

Pilot air supplyExternal

Flow directionReversible

Symbol00991042

lapOverlap

Pilot pressure0.3, 1.6

Pilot pressure3, 16

Suitability for vacuumYes

b value0.26

C value8272

Flow rate of valve3700

Flow rate of valve on individual sub-base3100

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Max. tightening torque for valve mounting2

Product weight610

Type of mountingOn sub-base

Pilot air port 12Sub-base size 2 to ISO 5599-1

Pilot air port 14Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Material screwsSteel, Galvanised

Accessories 41

Genuine accessories that can be used with the Festo VSPA-B-D52-D2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NAV-3/8-2C-ISO	Manifold sub-base · Connection accessories
NEV-2DA/DB-ISO	End plate kit · Connection accessories
NAW-3/8-2E-ISO	Angled connection plate · Connection accessories
NDV-2-ISO	Cover plate · Connection accessories
NAS-3/8-2A-ISO	Individual sub-base · Connection accessories
NAU-3/8-2B-ISO	Individual sub-base · Connection accessories
NSC-3/8-2-ISO	Isolating disc · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAW-3/8-NPT-2E	Manifold sub-base with angled connections · Connection accessories
NAVW-3/8-2-ISO	Manifold sub-base with angled connections · Connection accessories
NAVW-3/8-NPT-2	Manifold sub-base with angled connections · Connection accessories
NZV-1-2	Intermediate plate · Connection accessories
VABF-S1-2-R1C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R1C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R2C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R2C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-P1A3-G12	Vertical pressure supply plate · Connection accessories
VABF-S1-2-F1B1-C	Throttle plate · Connection accessories
VABF-S1-2-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABV-S1-2SB-G12	Sub-base · Connection accessories
VABV-S1-2SB-N12	Sub-base · Connection accessories
VABS-S1-2S-G12	Sub-base · Connection accessories
VABS-S1-2S-N12	Sub-base · Connection accessories
VABE-S1-2LZ-G34	End plate · Connection accessories
VABE-S1-2LZ-N34	End plate · Connection accessories
VABE-S1-2L-G34	End plate · Connection accessories
VABE-S1-2L-N34	End plate · Connection accessories
VABE-S1-2RZ-G34	End plate · Connection accessories
VABE-S1-2RZ-N34	End plate · Connection accessories
VABE-S1-2R-G34	End plate · Connection accessories
VABE-S1-2R-N34	End plate · Connection accessories
