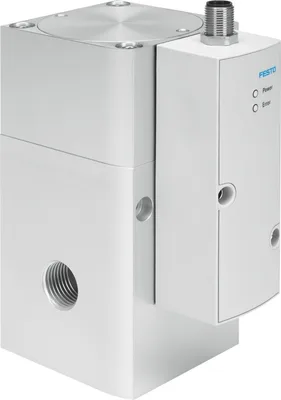

Festo VPPX-12L-L-1-G12-0L10H-S1
Proportional-pressure regulator. Pressure regulator with additional sensor input. Programmable, freely adjustable PID controller. Multi-sensor control (cascade control). Control characteristic adjustable via software FCT (Festo Configuration Tool). Integrated pressure sensor with separate output. Pressure is maintained if the controller fails
Nominal size, supply12
Nominal size, exhaust12
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
DesignPiloted diaphragm regulator
About This Product
Proportional-pressure regulator. Pressure regulator with additional sensor input. Programmable, freely adjustable PID controller. Multi-sensor control (cascade control). Control characteristic adjustable via software FCT (Festo Configuration Tool). Integrated pressure sensor with separate output. Pressure is maintained if the controller fails
Festo VPPX-12L-L-1-G12-0L10H-S1
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size, supply12
Nominal size, exhaust12
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
DesignPiloted diaphragm regulator
Short circuit current ratingFor all electrical connections
Safety instructionsSafety position VPPX: if the power supply cable is interrupted, output pressure is maintained unregulated.
Symbol00995303
Reverse polarity protectionFor all electrical connections
Type of resetMechanical spring
Type of pilotingPiloted
Valve function3-way proportional pressure regulator
Display typeLED
Pressure regulation range0.1, 10
Inlet pressure 10, 11
Max. pressure hysteresis0.05
Standard nominal flow rate (standardised to DIN 1343)7000
Operational voltage range DC21.6, 26.4
Max. current consumption500
Duty cycle100%
Max. electrical power consumption12
Residual ripple10%
Signal range analogue output0 - 10 V, 0 - 20 mA, 4 - 20 mA
Signal range analogue input0 - 10 V, 4 - 20 mA, 0 - 20 mA
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation not possible
ApprovalRCM, c UL us - Listed (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E322346
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature10, 50
Degree of protectionIP65
Ambient temperature0, 60
Product weight2050
Temperature cooefficient0.04
Repetition accuracy FS0.5
Repetition accuracy in ± %FS0.5
Electrical connectionM12, Plug
Type of mountingWith through-hole, With accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Pneumatic connection, port 3G1/2
Note on materialsRoHS compliant
Material housingWrought aluminium alloy, anodised
Accessories 110
Genuine accessories that can be used with the Festo VPPX-12L-L-1-G12-0L10H-S1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SIM-M12-8GD-2-PU | Plug socket with cable · Electrical accessories | |
| NEDU-L1R2-V9-M12G8-E-LE5-5R1-LE3-5R2 | DUO cable · Electrical accessories | |
| NEFC-M12G5-0.3-U1G5 | Adapter · Electrical accessories | |
| PUN-H-12X2-SW | Plastic tubing · Tubes | |
| PUN-H-12X2-NT | Plastic tubing · Tubes | |
| VAVE-P8-VPS | Programming cable · Electrical accessories | |
| NEBU-M12W8-K-2-N-LE8 | Plug socket with cable · Electrical accessories | |
| PUN-H-12X2-BL | Plastic tubing · Tubes | |
| U-1/2 | Silencer · Silencer | |
| PUN-H-12X2-TBL | Plastic tubing · Tubes | |
| QS-G1/2-12 | Push-in fitting · Fittings | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| U-1/2-B | Silencer · Silencer | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QSL-V0-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/2-16 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QSL-V0-G1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| SIM-M12-8GD-5-PU | Plug socket with cable · Electrical accessories | |
| U-1/2-20 | Silencer · Silencer | |
| NEBU-M12W8-K-5-N-LE8 | Plug socket with cable · Electrical accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| NEBV-M12G8-KD-3-M12G4 | Connecting cable · Electrical accessories | |
| NEBV-M12G8-K-2-M12G4 | Connecting cable · Electrical accessories | |
| NEBV-M12G8-K-5-M12G4 | Connecting cable · Electrical accessories | |
| NEBU-M12W8-K-10-N-LE8 | Plug socket with cable · Electrical accessories | |
| SIM-M12-8GD-10-PU | Plug socket with cable · Electrical accessories | |
| AMTE-M-LH-G12 | Silencer · Silencer | |
| AMTE-M-H-G12 | Silencer · Silencer |
