How can I get a price quote for Festo VAVE-P8-VPS?

You can request a fast quote for Festo VAVE-P8-VPS from Yılsa Engineering. Reference part number YLSZJKY5BCJPT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VAVE-P8-VPS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VAVE-P8-VPS genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VAVE-P8-VPS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

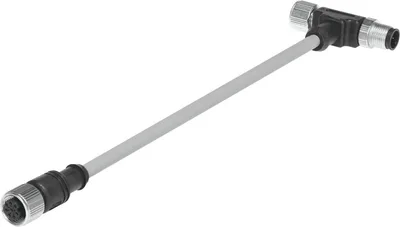

Festo VAVE-P8-VPS

Programming cable

FestoMFR # VAVE-P8-VPSSKU # YLSZJKY5BCJPT

Conforms to standardDIN 47100, EN 61076-2-101

Distrubution1 to 2

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Have questions?Chat on WhatsApp

About This Product

Festo VAVE-P8-VPS (Programming cable) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VAVE-P8-VPS — price, stock availability and technical specifications.

Festo VAVE-P8-VPS

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardDIN 47100, EN 61076-2-101

DesignT-distributor with cable on controller side

Distrubution1 to 2

Additional functionsProgramming interface for proportional pressure regulator

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores8

Electrical connection 1, used connections/cores8

Electrical connection 1, type of mountingScrew-type lock, size 14 mm

Electrical connection 1, connection pattern00992265

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores8

Electrical connection 2, used connections/cores8

electrical connection 2, type of mountingScrew-type lock, size 14 mm

Electrical connection 2, connection pattern00992264

Electrical connection 3, functionControl side

Electrical connection 3, designRound

Electrical connection 3, connection typeSocket

Electrical connection 3, cable outletStraight

Electrical connection 3, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 3, number of connections/cores5

Electrical connection 3, used connections/cores4

Electrical connection 3, type of mountingScrew-type lock

Electrical connection 3, connection pattern00991861

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C2

ShieldingYes

Cable length 10.15

Cable characteristicStandard

Cable diameter 16.3

Tolerance for cable diameter 1±0.2 mm

Cable structure8 x 0.25 mm²

Nominal cross section conductor0.25

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-25, 80

Ambient temperature with moving cable-5, 80

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

LABS (PWIS) conformityVDMA24364-B1/B2-L

Note on materialsRoHS compliant, Free of halogen

Pollution degree3

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockNickel-plated die-cast zinc

Material sealsNBR

Material electrical contactGold-plated brass
