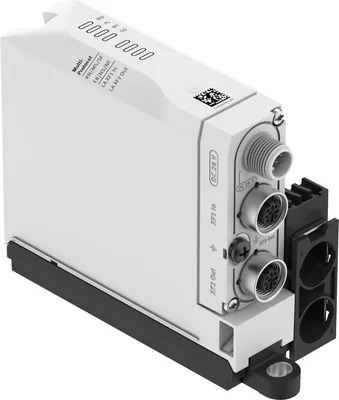

Festo VABX-A-S-EL-E12-CTED-MPM12-SHUH-XL

Manifold sub-base

FestoMFR # VABX-A-S-EL-E12-CTED-MPM12-SHUH-XLSKU # YLSL42ZKH3DC9IG

Size1, 2

Communication interface, plug pattern00995716

Position of connectionOn the side

Reverse polarity protectionYes

Diagnostics via LEDDiagnostics per module

Valve terminal structureValve sizes can be mixed

Have questions?Chat on WhatsApp

About This Product

Festo VABX-A-S-EL-E12-CTED-MPM12-SHUH-XL (Manifold sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABX-A-S-EL-E12-CTED-MPM12-SHUH-XL — price, stock availability and technical specifications.

Festo VABX-A-S-EL-E12-CTED-MPM12-SHUH-XL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size1, 2

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Communication interface, plug pattern00995716

Position of connectionOn the side

Reverse polarity protectionYes

Diagnostics via LEDDiagnostics per module

Diagnostics per internal communicationLogic supply undervoltage PS, Logic supply overvoltage PS

Valve terminal structureValve sizes can be mixed

Max. number of valve coils128

Compatible withValve terminal VTUX-A-S

Dimensions (W x L x H)26 mm x 104 mm x 92 mm

Inductive protective circuitIntegrated

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 50 mA

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Power consumption at 24VDC1.2

Max. power supply2 x 4 A (external fuse required)

Nominal DC operating voltage, electronics/sensors24

Nominal operating voltage DC of load24

Power failure bridging10

Electrical isolation of outputs between channel - internal communicationYes

Potential separation between the supply voltages electronics/sensor technology aYes

ProtocolCC-Link IE Field Basic, EtherCAT®, EtherNet/IP, Modbus TCP, PROFINET

Pollution degree2

Permissible voltage fluctuations for electronics/sensors±25%

Permissible voltage fluctuation of load±10%

Power supply, functionIncoming electronics/sensors and load

Power supply, connection typePlug

power supply, connection systemM12x1, A-coded according to EN 61076-2-101

Power supply, number of pins/wires5

Power supply, connection pattern00995383

Undervoltage load/valves (diagnostic message)21.1

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 70

Relative air humidity5 - 95%

Protection against direct and indirect contactPELV, Safety extra-low voltage

Degree of protectionIP65

Note on degree of protectionUnused connections sealed

Overvoltage categoryII

Ambient temperature-5, 50

Nominal altitude of use<= 2000 m NHN

Max. installation height3500

Max. tightening torque wall mounting6

Product weight240

Electrical controlAP interface

Max. cable length100 M

Communication interface, functionSystem communication XF1 IN / XF2 OUT

Communication interface, connection type2x socket

Communication interface, connection technologyM12x1, D-coded to EN 61076-2-101

Communication interface, number of pins/cores4

Communication interface, protocolCC-Link IE Field Basic, EtherCAT®, EtherNet/IP, Modbus TCP, PROFINET

Communication interface, screenedYes

Cable outletStraight

Mounting method for sub-baseWith through-hole

Type of mountingVia through-hole for M5 screw

Pneumatic connection, port 1For 15 mm cartridge

Pneumatic connection, port 5For 15 mm cartridge

Note on materialsRoHS compliant

Material sub-baseReinforced PA

Material coverReinforced PA

Material sealsNBR

Material sleeveHigh-alloy stainless steel

Material clipHigh-alloy stainless steel

Material nutHigh-alloy stainless steel

Accessories 11

Genuine accessories that can be used with the Festo VABX-A-S-EL-E12-CTED-MPM12-SHUH-XL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NPQX-D-PC15-Q8-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q10-P10	Cartridge · Push-in fittings
NPQX-D-PC15-T516-P10	Cartridge · Push-in fittings
VABF-XA-12-M1-C	Exhaust plate · Connection accessories
NPQX-P-PC15	Blanking plug · Push-in fittings
VABF-XA-12-M2-QX	Plate · Connection accessories
NPQX-D-PC15-Q12-P2	Cartridge · Push-in fittings
NPQX-D-PC15-T14-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q14-P2	Cartridge · Push-in fittings
NPQX-D-PC15-T12-P2	Cartridge · Push-in fittings
NPQX-D-PC15-Q6-P10	Cartridge · Push-in fittings
