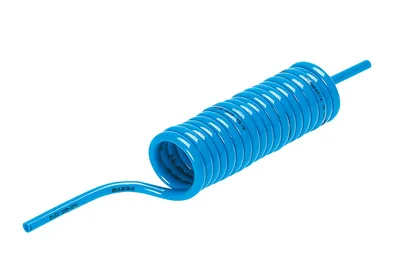

FESTO PUN-4X0,75-S-0,5-BL

Spiral plastic tubing. Polyurethane. Also available as DUO plastic tubing. Operating medium: compressed air, vacuum. High resistance to UV radiation and stress cracks

FESTOMFR # PUN-4X0,75-S-0,5-BLSKU # CEY-937FC782154A

Working length0.5

Outside diameter4

Block length0.184

Inside diameter2.6

Winding diameter25

Number of turns20

Have questions?Chat on WhatsApp

About This Product

Spiral plastic tubing. Polyurethane. Also available as DUO plastic tubing. Operating medium: compressed air, vacuum. High resistance to UV radiation and stress cracks

FESTO PUN-4X0,75-S-0,5-BL

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working length0.5

Outside diameter4

Block length0.184

Inside diameter2.6

Winding diameter25

Number of turns20

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-35, 60

Product weight13

Pneumatic connectionFor push-in connector O.D. 4 mm, For barbed fitting I.D. 3 mm with union nut, For barbed fitting I.D. 3 mm

ColourBlue

Shore hardnessD 52 +/-3

Material tubingTPE-U(PU)

Accessories 4

Genuine accessories that can be used with the FESTO PUN-4X0,75-S-0,5-BL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M5-4	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
