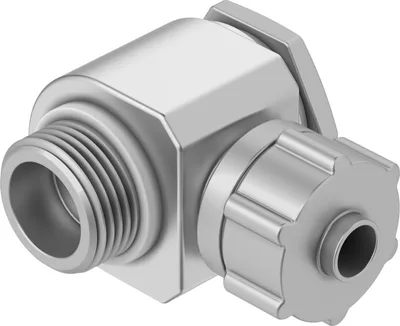

Photo may not represent actual item. Refer to name and product specs for all details.

Festo NPCK-C-D-G14-K10

Fitting. Stainless steel design. Food grade see www.festo.com/certificates/NPCK. Fulfils all clean design requirements. Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/NPCK. Straight shape

FestoMFR # NPCK-C-D-G14-K10SKU # YLSSS98UJXBCVX

Nominal size6.1

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

Have questions?Chat on WhatsApp

About This Product

Festo NPCK-C-D-G14-K10

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size6.1

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Operating pressure complete temperature range-0.095, 1.2

Operating pressure complete temperature range-0.95, 12

Operating pressure complete temperature range-13.775, 174

Note on operating pressureWater vapour: 0 – 0.15 MPa, 0 – 1.5 bar, 0 – 22 psi

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free), Water vapour

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Suitable for use with foodSee supplementary material information

Note on temperature of mediumSteam: max. 120°C

Degree of protectionIP69K

Ambient temperature-20, 120

Note on ambient temperatureThe NPCK can be used from -40 to 60 °C when using suitable tubing and observing the maximum operating pressure of the tube.

Nominal torque20

Note on the nominal tightening torque7 Nm +/- 10% for NPCK on MPA-C

Tolerance for nominal tightening torque±10%

Product weight32.9

Pneumatic connection, port 1Male thread G1/4

Pneumatic connection, port 2For tubing outside diameter of 10 mm

Material union nutHigh-alloy stainless steel

Material screwed plugHigh-alloy stainless steel

Note on materialsRoHS compliant

Material sealing ringPEEK

Accessories 9

Genuine accessories that can be used with the Festo NPCK-C-D-G14-K10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PFAN-10X1,5-NT	Plastic tubing · Tubes
PTFEN-10X1,5-NT	Plastic tubing · Tubes
NPAS-C1-R-G14-P-FD-P10	Sealing ring · General accessories
PLN-10X1,5-NT	Plastic tubing · Tubing
PLN-10X1,5-SW	Plastic tubing · Tubing
PLN-10X1,5-BL	Plastic tubing · Tubing
PLN-10X1,5-SI	Plastic tubing · Tubing
PLN-10X1,5-RT	Plastic tubing · Tubing
PTFEN-10X1,5-NT-300	Plastic tubing · Tubing
