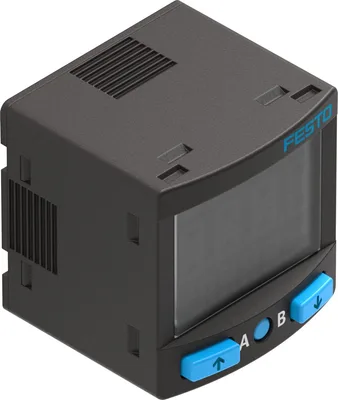

Festo SPAN-

Pressure sensor. For monitoring compressed air and non-corrosive gases. For network monitoring, regulator monitoring, leak testing, object detection. Relative measurement method based on a piezoresistive measuring cell. Serial communication integrated using IO-Link® 1.1. Compact design 30x30 mm. High-contrast display with blue backlight. Sustainable operation thanks to pressure monitoring

FestoMFR # SPAN-SKU # YLSZ7ZBO448PUB

Symbol00997331

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E322346

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Have questions?Chat on WhatsApp

About This Product

Festo SPAN-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00997331

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E322346

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Start value for pressure measuring range-0.1

Start value for pressure measuring range-1

Start value for pressure measuring range-14.5

End value for pressure measuring range1.6

End value for pressure measuring range16

End value for pressure measuring range232

Max. overload pressure5, 20

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible

Media temperature0, 50

Ambient temperature0, 50

Accuracy in ± % FS1.5

Repetition accuracy in ± %FS0.3

Temperature coefficient in ± %FS/K0.05, 0.1

Switching output2 x PNP or 2 x NPN, switchable, PNP/NPN, switchable

Switching functionWindow comparator, Threshold value comparator, Auto difference monitoring

Switching element functionNC or NO, switchable

Max. output current80, 100

Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V

Max. load resistance current output500

Min. load resistance voltage output20

Short circuit current ratingYes

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT0 bytes

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring)

IO-Link, Min. cycle time3 ms

IO-Link, Data storage required500

Operational voltage range DC10.8, 30

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemPlug pattern L1J

Electrical connection 1, number of connections/cores4

Electrical connection 1, connection pattern00995428

Type of mountingFront panel mounting, With thread, Via wall/surface bracket

Mounting positionAny

Pneumatic connectionMale thread G1/8, Male thread R1/8, Male thread 1/8 NPT, Female thread M5, Female thread G1/8, For tubing O.D. 4 mm

Product weight21, 46

Material housingReinforced PA

Material in contact with the mediumHigh-alloy stainless steel

Display typeIlluminated LCD

Displayable unitsMPa, bar, inH2O, inHg, kPa, kgf/cm², mbar, mmHg, psi

Setting optionsIO-Link®, Teach-in, Via display and buttons

Protection against tamperingIO-Link®, PIN code

Setting range threshold value0, 100

Setting range hysteresis0, 90

Degree of protectionIP40

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
