How can I get a price quote for Festo SPAF-P10R-Q4-L-PNLK-VB-M8?

You can request a fast quote for Festo SPAF-P10R-Q4-L-PNLK-VB-M8 from Yılsa Engineering. Reference part number YLSGQCQ6S7UCQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SPAF-P10R-Q4-L-PNLK-VB-M8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SPAF-P10R-Q4-L-PNLK-VB-M8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SPAF-P10R-Q4-L-PNLK-VB-M8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

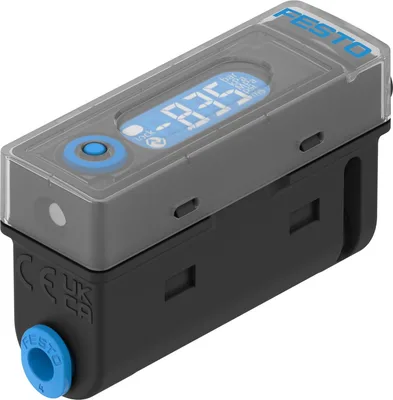

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo SPAF-P10R-Q4-L-PNLK-VB-M8

Pressure sensor. IO-Link® communication interface. Degree of protection IP65. Versions with display or LED switching status indication. Replication function for quickly transferring settings. Switching output (PNP / NPN; NO / NC) adjustable via software. Teach-in of the switching point setting with one button. Sustainable operation thanks to pressure monitoring

FestoMFR # SPAF-P10R-Q4-L-PNLK-VB-M8SKU # YLSGQCQ6S7UCQ

Symbol00997545

ApprovalRCM

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Start value for pressure measuring range0

Have questions?Chat on WhatsApp

About This Product

Festo SPAF-P10R-Q4-L-PNLK-VB-M8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00997545

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Start value for pressure measuring range0

End value for pressure measuring range1

End value for pressure measuring range10

End value for pressure measuring range145

Overload pressure1.5

Overload pressure15

Overload pressure217.5

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation possible

Media temperature0, 50

Ambient temperature0, 50

Accuracy in ± % FS1.5

Repetition accuracy in ± %FS0.3

Temperature coefficient in ± %FS/K0.05

Switching outputPNP/NPN, switchable

Switching functionWindow comparator, Threshold value comparator, Threshold value with variable hysteresis

Switching element functionNC or NO, switchable

Switch-on time3

Switch-off time3

Max. output current100

Voltage drop1.6

Analogue output0 - 10 V, 1 - 5 V

Output characteristic curve start value0

Output characteristic curve end value10

Accuracy analogue output in ± %FS1.5

Linearity error in ± %FS0.3

Rise time6

Min. load resistance voltage output20

Display range start value0

Display range end value100

Short circuit current ratingYes

Overload protectionAvailable

ProtocolIO-Link®

IO-Link, revision IDV1.1

IO-Link, device profileFirmware update, Function locator, Function Product URI, Function quantity detection, Smart Sensor - SSP 4.1.1

IO-Link, transmission rateCOM3

IO-Link, SIO-Mode supportYes

IO-Link, port typeClass A

IO-Link, process data length output0

IO-Link, process data length input32

IO-Link, Process data content INPressure measured value 16 bit MDC, Pressure monitoring 2 bit SSC

IO-Link, Service data INTemperature 16 bit

IO-Link, minimum cycle time0.9

IO-Link, Data storage required500

Operational voltage range DC15, 30

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingSnap-locking, Screw-type lock, Not rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00991171

Material connector housingReinforced PA

Type of mountingWith accessories

Mounting positionAny

Pneumatic connectionQS-4

Product weight30

Material housingReinforced PA

Material in contact with the mediumStainless steel, NBR, Reinforced PA

Display typeBacklit blue LCD

Displayable unitsMPa, bar, kPa, psi

Ready status indicationThrough backlighting

Setting optionsIO-Link®, Teach-in, Via display and buttons

Protection against tamperingIO-Link®, PIN code

Setting range threshold value0, 100

Setting range hysteresis0, 90

Degree of protectionIP65

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Accessories 97

Genuine accessories that can be used with the Festo SPAF-P10R-Q4-L-PNLK-VB-M8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PUN-CM-4-SW	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PFAN-4X0,75-NT	Plastic tubing · Tubing
PUN-H-4X0,75-NT	Plastic tubing · Tubing
PUN-H-4X0,75-BL	Plastic tubing · Tubing
PUN-H-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-S-0,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-SW	Spiral plastic tubing · Tubing
PAN-V0-4X0,75-BL	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TSW	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-10-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-10-N-LE4	Connecting cable · Connecting cables
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
PUN-H-SF-4X0,85-SW	Plastic tubing · Tubing
PUN-H-SF-4X0,85-BL	Plastic tubing · Tubing
SAMH-PF-MC-1	Mounting clip · Mounting accessories
PUN-H-4X0,75-RT-25	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-25	Plastic tubing · Tubing
PUN-H-4X0,75-BL-25	Plastic tubing · Tubing
PUN-H-4X0,75-SW-25	Plastic tubing · Tubing
PAN-R-4X0,75-SI	Heavy-duty tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-5/32-BL-150-CB	Plastic tubing · Tubing
PUN-H-5/32-SW-150-CB	Plastic tubing · Tubing
PUN-H-5/32-NT-150-CB	Plastic tubing · Tubing
PUN-H-5/32-BR-150-CB	Plastic tubing · Tubing
PUN-H-5/32-SW-500-HA	Plastic tubing · Tubing
PUN-V0-4X1-SW-C	Plastic tubing · Tubing
PUN-V0-4X1-BL-C	Plastic tubing · Tubing
PAN-MF-4X0,75-SW	Plastic tubing · Tubing
PAN-MF-4X0,75-SW-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-LC-4X0,75-BL	Plastic tubing · Tubing
PUN-H-LC-4X0,75-HBL	Plastic tubing · Tubing
