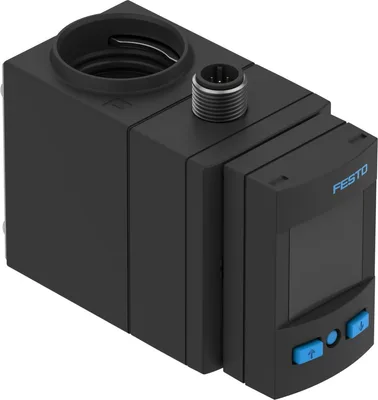

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo SFAW-32-X-E-PNLK-PNVBA-M12

Flow sensor. Cooling circuit monitoring, leakage or line break monitoring, process water monitoring, fill level monitoring. Input connection: clamped terminal connection DN15, DN20, barbed hose fitting 13 mm, female thread G1/2, G3/4, G1, user-specific connection. With optional integrated temperature sensor. Connection to higher-level systems via 2 switching outputs, an analogue output and/or an IO-Link® interface. Certification: RCM, c UL us Listed (OL). Rotatable display, 90° anticlockwise and 180° clockwise. Sustainable operation thanks to monitoring of process fluids

FestoMFR # SFAW-32-X-E-PNLK-PNVBA-M12SKU # YLSZIMYIYTJKSG

Symbol00995566

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Measured variableFlow rate, Temperature

Flow directionUnidirectional, P1 -> P2

Measurement methodFlow rate: Vortex, Temperature: PT1000

Have questions?Chat on WhatsApp

About This Product

Festo SFAW-32-X-E-PNLK-PNVBA-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00995566

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variableFlow rate, Temperature

Flow directionUnidirectional, P1 -> P2

Measurement methodFlow rate: Vortex, Temperature: PT1000

Start value for flow rate measuring range1.8

End value for flow rate measuring range32

Operating pressure0, 1.2

Operating pressure0, 12

Operating pressure0, 174

Note on operating pressureMax. 1.2 MPa (12 bar / 174 psi) at 40 °C, Max. 0.6 MPa (6 bar / 87 psi) at 90 °C

Overload pressure4

Overload pressure40

Overload pressure580

Operating mediumLiquid media, Water, Neutral fluids

Note on operating and pilot mediumMedia with a kinematic viscosity = 1.8 mm²/sec. [cSt]. Compatibility of the media with the substances in contact with the media must be ensured.

Media temperature0, 90

Ambient temperature0, 50

Nominal temperature23

Accuracy of flow rate±2 %FS for flow ≤ 50 %FS, ±3% of measured value for flow rate ≥ 50% FS

Accuracy temperature in ± °C2

Repetition accuracy of flow rate< ±0.5% FS for flow rate <= 50 %FS, < ±1% of measured value for flow rate >= 50 %FS

Temperature coefficient span in ± %FS/Ktyp. ±0.05%FS/K

Switching output2 x PNP or 2 x NPN, switchable

Switching functionWindow comparator, Threshold value comparator, Freely programmable

Switching element functionNC or NO, switchable

Max. output current100

Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V

Flow characteristic curve start value0

Flow characteristic curve end value32

Max. load resistance current output500

Min. load resistance voltage output15

Short circuit current ratingYes

Overload protectionAvailable

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT0 bytes

IO-Link, Process data length IN3 bytes

IO-Link, Process data content IN1 bit BDC (volume monitoring), 14 bit PDV (measured flow value), 2 bit BDC (flow monitoring)

IO-Link, Service data IN32-bit volume measurement

IO-Link, Min. cycle time5 ms

IO-Link, Data storage required500

Operational voltage range DC18, 30

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, type of mountingScrew-type lock, Not rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock

Electrical connection 1, connection pattern00995383

Max. cable length20 m with IO-Link® operation, 30 M

Mounting positionAny

Fluid connectionConnection by the user

Product weight140

Material housingReinforced PA

Material in contact with the mediumEPDM (peroxide), ETFE, Stainless steel, PA6T/6I reinforced

Displayable unitsUS gal, US gal/min, cft, cft/min, l, l/h, l/min, m3, °C, °F

Degree of protectionIP65

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 23

Genuine accessories that can be used with the Festo SFAW-32-X-E-PNLK-PNVBA-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SACC-PU-G	Protective hood · Mounting accessories
SAMH-FW-W	Wall mounting · Mounting accessories
NEBA-M12G5-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-7.5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-M12G5	Connecting cable · Connecting cables
NEBS-M12G5-ES-5-LE5	Connecting cable · Connecting cables
NEBS-M12G5-ES-10-LE5	Connecting cable · Connecting cables
SASF-FW-S-E	Seal · General accessories
SAMH-FW-SB	Clip · Mounting accessories
NEBC-M12G5-ES-5-LE5-CO	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-10-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-5-Q8N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-LE5	Connecting cable · Connecting cables
NEBC-M12G5-S-1,5-N-M12G5	Connecting cable · Connecting cables
NEBS-M12G5-ES-15-LE5	Connecting cable · Connecting cables
SACC-S4-T	Protective cap · Mounting accessories
SACC-S4-T-T	Protective cap · Mounting accessories
