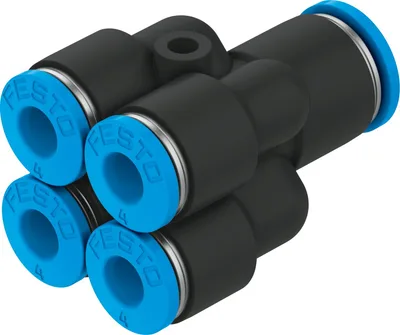

Festo QSQ-6-4
Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Reducing design. Operating media: compressed air, vacuum, (water). Straight design, L-shaped, T-shaped
SizeStandard
Nominal size3.1
Tubing insertion depth17
Note on the tubing insertion depthØ4 depth 14.9 mm, Ø6 depth 17 mm
Mounting positionAny
DesignPush-pull principle
About This Product
Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Reducing design. Operating media: compressed air, vacuum, (water). Straight design, L-shaped, T-shaped
Festo QSQ-6-4
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size3.1
Tubing insertion depth17
Note on the tubing insertion depthØ4 depth 14.9 mm, Ø6 depth 17 mm
Mounting positionAny
DesignPush-pull principle
Size of pack1
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Product weight14
Number of outputs4
Number of supply lines1
Pneumatic connection, port 1For tubing outside diameter of 6 mm
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Accessories 80
Genuine accessories that can be used with the Festo QSQ-6-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-4X0,75-SI | Plastic tubing · Tubing | |
| PAN-4X0,75-SI | Plastic tubing · Tubing | |
| PUN-4X0,75-DUO-SI | DUO tubing · Tubing | |
| QSO | Release tool · General accessories | |
| PUN-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-4X0,75-DUO-BS | DUO tubing · Tubing | |
| PUN-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-4X0,75-S-0,5-BL | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1,5-BL | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-0,5-SW | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1,5-SW | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-0,5-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1,5-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PUN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-SW | Plastic tubing · Tubing | |
| PEN-4X0,75-NT | Plastic tubing · Tubing | |
| PAN-4X0,75-NT | Plastic tubing · Tubing | |
| PEN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-BL | Plastic tubing · Tubing | |
| PEN-4X0,75-SI | Plastic tubing · Tubing | |
| PEN-4X0,75-GN | Plastic tubing · Tubing | |
| PEN-4X0,75-RT | Plastic tubing · Tubing | |
| PEN-4X0,75-GE | Plastic tubing · Tubing | |
| PUN | Plastic tubing · Tubing | |
| PAN | Plastic tubing · Tubing | |
| PEN | Plastic tubing · Tubing | |
| PLN | Plastic tubing · Tubing | |
| PAN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-BL | Plastic tubing · Tubing | |
| PAN-4X0,75-SW | Plastic tubing · Tubing | |
| PAN-4X0,75-GN | Plastic tubing · Tubing | |
| PAN-4X0,75-RT | Plastic tubing · Tubing | |
| PAN-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-NT-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SI | Plastic tubing · Tubing | |
| PUN-H-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-H-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TSW | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TSW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TRT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TRT-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGN | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGN-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGE | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGE-500 | Plastic tubing · Tubing | |
| PTFEN-4X0,5-NT-100 | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-NT | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-TBL | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-H-SF-4X0,85-SW | Plastic tubing · Tubing | |
| PUN-H-SF-4X0,85-BL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-RT-25 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL-25 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW-25 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL-25 | Plastic tubing · Tubing |
