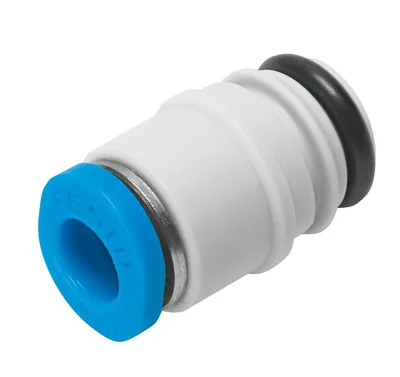

FESTO QSPKG10-4

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO QSPKG10-4

Cartridge. Compact installation space. Threadless mounting. Straight shape, L-shape

FESTOMFR # QSPKG10-4SKU # CEY-937FC7825FAA
SizeMini
Nominal size2.3
Tubing insertion depth11.3
Type of seal on screwed plugO-ring
Mounting positionAny
DesignStraight design
Share
Have questions?Chat on WhatsApp

About This Product

Cartridge. Compact installation space. Threadless mounting. Straight shape, L-shape

FESTO QSPKG10-4

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeMini
Nominal size2.3
Tubing insertion depth11.3
Type of seal on screwed plugO-ring
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 1
Operating pressure complete temperature range-0.95, 10
Operating pressure complete temperature range-13.775, 145
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-5, 60
Product weight1.4
Type of mountingMounting pin
Pneumatic connection, port 1Cartridge 10 mm
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingReinforced PA
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 80

Genuine accessories that can be used with the FESTO QSPKG10-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PUN-4X0,75-SIPlastic tubing · Tubing
PAN-4X0,75-SIPlastic tubing · Tubing
PUN-4X0,75-DUO-SIDUO tubing · Tubing
QSORelease tool · General accessories
PUN-4X0,75-BLPlastic tubing · Tubing
PUN-4X0,75-SWPlastic tubing · Tubing
PUN-4X0,75-DUO-BSDUO tubing · Tubing
PUN-4X0,75-RTPlastic tubing · Tubing
PUN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-GNPlastic tubing · Tubing
PUN-H-4X0,75-NTPlastic tubing · Tubing
PUN-H-4X0,75-BLPlastic tubing · Tubing
PUN-H-4X0,75-SWPlastic tubing · Tubing
PUN-4X0,75-S-0,5-BLSpiral plastic tubing · Tubing
PUN-4X0,75-S-1-BLSpiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-BL Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-1-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-SI-500Plastic tubing · Tubing
PUN-4X0,75-BL-500Plastic tubing · Tubing
PEN-4X0,75-SWPlastic tubing · Tubing
PEN-4X0,75-NTPlastic tubing · Tubing
PAN-4X0,75-NTPlastic tubing · Tubing
PEN-4X0,75-SW-500Plastic tubing · Tubing
PEN-4X0,75-BL-500Plastic tubing · Tubing
PEN-4X0,75-SI-500Plastic tubing · Tubing
PEN-4X0,75-BLPlastic tubing · Tubing
PEN-4X0,75-SIPlastic tubing · Tubing
PEN-4X0,75-GNPlastic tubing · Tubing
PEN-4X0,75-RTPlastic tubing · Tubing
PEN-4X0,75-GEPlastic tubing · Tubing
PUNPlastic tubing · Tubing
PANPlastic tubing · Tubing
PENPlastic tubing · Tubing
PLNPlastic tubing · Tubing
PAN-4X0,75-SI-500Plastic tubing · Tubing
PAN-4X0,75-BL-500Plastic tubing · Tubing
PAN-4X0,75-SW-500Plastic tubing · Tubing
PAN-4X0,75-BLPlastic tubing · Tubing
PAN-4X0,75-SWPlastic tubing · Tubing
PAN-4X0,75-GNPlastic tubing · Tubing
PAN-4X0,75-RTPlastic tubing · Tubing
PAN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-SW-500Plastic tubing · Tubing
PUN-H-4X0,75-SW-500Plastic tubing · Tubing
PUN-H-4X0,75-BL-500Plastic tubing · Tubing
PUN-H-4X0,75-NT-500 Plastic tubing · Tubing
PUN-H-4X0,75-SI-500Plastic tubing · Tubing
PUN-H-4X0,75-SIPlastic tubing · Tubing
PUN-H-4X0,75-RTPlastic tubing · Tubing
PUN-H-4X0,75-GNPlastic tubing · Tubing
PUN-H-4X0,75-GEPlastic tubing · Tubing
PUN-H-4X0,75-TBLPlastic tubing · Tubing
PUN-H-4X0,75-TBL-500Plastic tubing · Tubing
PUN-H-4X0,75-TSWPlastic tubing · Tubing
PUN-H-4X0,75-TSW-500Plastic tubing · Tubing
PUN-H-4X0,75-TRTPlastic tubing · Tubing
PUN-H-4X0,75-TRT-500Plastic tubing · Tubing
PUN-H-4X0,75-TGNPlastic tubing · Tubing
PUN-H-4X0,75-TGN-500Plastic tubing · Tubing
PUN-H-4X0,75-TGEPlastic tubing · Tubing
PUN-H-4X0,75-TGE-500Plastic tubing · Tubing
PTFEN-4X0,5-NT-100Plastic tubing · Tubing
PUN-H-F-4X0,75-NTPlastic tubing · Tubing
PUN-H-F-4X0,75-RTPlastic tubing · Tubing
PUN-H-F-4X0,75-BLPlastic tubing · Tubing
PUN-H-F-4X0,75-TBLPlastic tubing · Tubing
PUN-H-F-4X0,75-GNPlastic tubing · Tubing
PUN-H-F-4X0,75-GEPlastic tubing · Tubing
PUN-H-F-4X0,75-SWPlastic tubing · Tubing
PUN-H-SF-4X0,85-SWPlastic tubing · Tubing
PUN-H-SF-4X0,85-BLPlastic tubing · Tubing
PUN-H-4X0,75-RT-25Plastic tubing · Tubing
PUN-H-4X0,75-BL-25Plastic tubing · Tubing
PUN-H-4X0,75-SW-25Plastic tubing · Tubing
PUN-H-4X0,75-TBL-25Plastic tubing · Tubing
