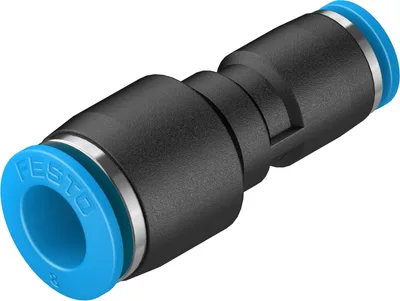

Festo QS-8-4

Photo may not represent actual item. Refer to name and product specs for all details.

Festo QS-8-4

Push-in connector. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FestoMFR # QS-8-4SKU # CEY-937FC78266C2
SizeStandard
Nominal size2.8
Tubing insertion depth18.1
Note on the tubing insertion depthØ4 depth 14.9 mm, Ø8 depth 18.1 mm
Mounting positionAny
DesignStraight design
Share
Have questions?Chat on WhatsApp

About This Product

Push-in connector. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

Festo QS-8-4

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size2.8
Tubing insertion depth18.1
Note on the tubing insertion depthØ4 depth 14.9 mm, Ø8 depth 18.1 mm
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Ambient temperature-10, 80
Product weight7.2
Pneumatic connection, port 1For tubing outer diameter of 8 mm
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 80

Genuine accessories that can be used with the Festo QS-8-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
QSORelease tool · General accessories
PUN-H-4X0,75-NTPlastic tubing · Tubes
PUN-H-4X0,75-BLPlastic tubing · Tubes
PUN-H-4X0,75-SWPlastic tubing · Tubes
PUN-H-4X0,75-TBLPlastic tubing · Tubes
PUN-4X0,75-SIPlastic tubing · Tubing
PAN-4X0,75-SIPlastic tubing · Tubing
PUN-4X0,75-DUO-SIDUO tubing · Tubing
PUN-4X0,75-BLPlastic tubing · Tubing
PUN-4X0,75-SWPlastic tubing · Tubing
PUN-4X0,75-DUO-BSDUO tubing · Tubing
PUN-4X0,75-RTPlastic tubing · Tubing
PUN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-GNPlastic tubing · Tubing
PUN-4X0,75-S-0,5-BLSpiral plastic tubing · Tubing
PUN-4X0,75-S-1-BLSpiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-BL Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-1-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-SI-500Plastic tubing · Tubing
PUN-4X0,75-BL-500Plastic tubing · Tubing
PEN-4X0,75-SWPlastic tubing · Tubing
PEN-4X0,75-NTPlastic tubing · Tubing
PAN-4X0,75-NTPlastic tubing · Tubing
PEN-4X0,75-SW-500Plastic tubing · Tubing
PEN-4X0,75-BL-500Plastic tubing · Tubing
PEN-4X0,75-SI-500Plastic tubing · Tubing
PEN-4X0,75-BLPlastic tubing · Tubing
PEN-4X0,75-SIPlastic tubing · Tubing
PEN-4X0,75-GNPlastic tubing · Tubing
PEN-4X0,75-RTPlastic tubing · Tubing
PEN-4X0,75-GEPlastic tubing · Tubing
PUNPlastic tubing · Tubing
PANPlastic tubing · Tubing
PENPlastic tubing · Tubing
PLNPlastic tubing · Tubing
PAN-4X0,75-SI-500Plastic tubing · Tubing
PAN-4X0,75-BL-500Plastic tubing · Tubing
PAN-4X0,75-SW-500Plastic tubing · Tubing
PAN-4X0,75-BLPlastic tubing · Tubing
PAN-4X0,75-SWPlastic tubing · Tubing
PAN-4X0,75-GNPlastic tubing · Tubing
PAN-4X0,75-RTPlastic tubing · Tubing
PAN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-SW-500Plastic tubing · Tubing
PUN-H-4X0,75-SW-500Plastic tubing · Tubing
PUN-H-4X0,75-BL-500Plastic tubing · Tubing
PUN-H-4X0,75-NT-500 Plastic tubing · Tubing
PUN-H-4X0,75-SI-500Plastic tubing · Tubing
PUN-H-4X0,75-SIPlastic tubing · Tubing
PUN-H-4X0,75-RTPlastic tubing · Tubing
PUN-H-4X0,75-GNPlastic tubing · Tubing
PUN-H-4X0,75-GEPlastic tubing · Tubing
PUN-H-4X0,75-TBL-500Plastic tubing · Tubing
PUN-H-4X0,75-TSWPlastic tubing · Tubing
PUN-H-4X0,75-TSW-500Plastic tubing · Tubing
PUN-H-4X0,75-TRTPlastic tubing · Tubing
PUN-H-4X0,75-TRT-500Plastic tubing · Tubing
PUN-H-4X0,75-TGNPlastic tubing · Tubing
PUN-H-4X0,75-TGN-500Plastic tubing · Tubing
PUN-H-4X0,75-TGEPlastic tubing · Tubing
PUN-H-4X0,75-TGE-500Plastic tubing · Tubing
PTFEN-4X0,5-NT-100Plastic tubing · Tubing
PUN-H-F-4X0,75-NTPlastic tubing · Tubing
PUN-H-F-4X0,75-RTPlastic tubing · Tubing
PUN-H-F-4X0,75-BLPlastic tubing · Tubing
PUN-H-F-4X0,75-TBLPlastic tubing · Tubing
PUN-H-F-4X0,75-GNPlastic tubing · Tubing
PUN-H-F-4X0,75-GEPlastic tubing · Tubing
PUN-H-F-4X0,75-SWPlastic tubing · Tubing
PUN-H-SF-4X0,85-SWPlastic tubing · Tubing
PUN-H-SF-4X0,85-BLPlastic tubing · Tubing
PUN-H-4X0,75-RT-25Plastic tubing · Tubing
PUN-H-4X0,75-BL-25Plastic tubing · Tubing
PUN-H-4X0,75-SW-25Plastic tubing · Tubing
PUN-H-4X0,75-TBL-25Plastic tubing · Tubing
