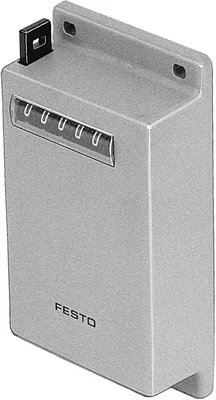

FESTO PZA-A-B

Adding counter. Complete system offering control components with all the functions required for pneumatic sequence control. For control cabinet installation. Fast replacement of components. Available with protective cap

FESTOMFR # PZA-A-BSKU # CEY-937FC7826E82

Type of resetPushbutton or pneumatic signal

Display6 characters

Drop-off pressure drive0.2 ± 0.1 bar

Drop-off pressure reset0.15 ± 0.1 bar

Response pressure drive0.6 ± 0.2 bar

Response pressure reset0.6 ± 0.2 bar

Have questions?Chat on WhatsApp

About This Product

FESTO PZA-A-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignMechanical sequence counter with pneumatic drive

Type of resetPushbutton or pneumatic signal

Display6 characters

Drop-off pressure drive0.2 ± 0.1 bar

Drop-off pressure reset0.15 ± 0.1 bar

Response pressure drive0.6 ± 0.2 bar

Response pressure reset0.6 ± 0.2 bar

Operating pressure2, 8

Min. reset pressure2

Min. pulse length drive10

Min. pulse length reset180

Min. pause period drive15

Min. pause period reset50

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight155

Type of mountingWith through-hole

Pneumatic connectionM5

Material housingABS
