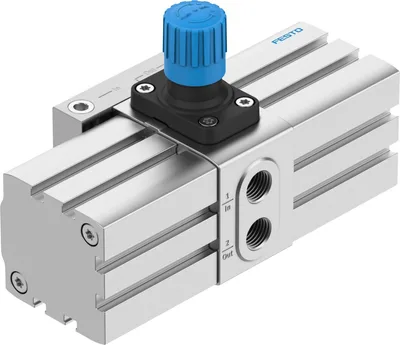

Festo PBPA-40-16-A

Pressure amplifier. Pneumatic pressure increases up to double the input pressure. Extremely efficient thanks to the optimised internal design. Long service life. Can be combined directly with air reservoir. Easy to maintain and repair. Compact design and flexible mounting position

FestoMFR # PBPA-40-16-ASKU # YLSLCTCUXKGDZ4F

Piston diameter40 mm

Mounting positionAny

DesignTwin-piston pressure booster

Symbol00991432

Output pressure 20.4, 1.6

Output pressure 24, 16

Have questions?Chat on WhatsApp

About This Product

Festo PBPA-40-16-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Piston diameter40 mm

Mounting positionAny

DesignTwin-piston pressure booster

Symbol00991432

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8

Output pressure 20.4, 1.6

Output pressure 24, 16

Output pressure 258, 232

Operating pressure0.2, 1

Operating pressure2, 10

Operating pressure29, 145

Inlet pressure 12, 10

Inlet pressure 10.2, 1

Inlet pressure 129, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature5, 60

Ambient temperature5, 60

Product weight1000

Type of mountingwith female thread M4

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/8

Note on materialsRoHS compliant

Accessories 53

Genuine accessories that can be used with the Festo PBPA-40-16-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
U-1/8	Silencer · Silencer
U-1/8-I	Silencer · Silencer
U-1/8-B	Silencer · Silencer
PAN-10X1,5-SI	Plastic tubing · Tubing
UC-1/8	Silencer · Silencer
UC-1/8-50	Silencer · Silencer
U-1/8-50	Silencer · Silencer
PAN-R-8X1,5-SI	Heavy-duty tubing · Tubing
PAN-10X1,5-NT	Plastic tubing · Tubing
CCES-P-C8-E	Adding counter · Electrical accessories
PAN-10X1,5-SI-300	Plastic tubing · Tubing
PAN-10X1,5-BL-300	Plastic tubing · Tubing
PAN-10X1,5-SW-300	Plastic tubing · Tubing
PAN-10X1,5-BL	Plastic tubing · Tubing
PAN-10X1,5-SW	Plastic tubing · Tubing
PAN-10X1,5-GN	Plastic tubing · Tubing
PAN-10X1,5-RT	Plastic tubing · Tubing
PAN-10X1,5-GE	Plastic tubing · Tubing
PAGN-40-1.6M-R18-1.6	Pressure gauge · Connection accessories
PAMA-P1-MB-40	Mounting kit · Cylinder mountings
PAMA-P1-CK-40	Connection kit · Mounting accessories
PAN-8X1,25-SI	Plastic tubing · Tubing
QS-1/4-8	Push-in fitting · Push-in fittings
QS-1/4-10	Push-in fitting · Push-in fittings
QS-1/4-8-I	Push-in fitting · Push-in fittings
QS-1/4-10-I	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QS-G1/4-10-I	Push-in fitting · Push-in fittings
QS-1/4-8-50	Push-in fitting · Push-in fittings
QS-1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
QS-1/4-10-I-50	Push-in fitting · Push-in fittings
QS-1/4-8-I-50	Push-in fitting · Push-in fittings
PAN-R-10X1,9-SI	Heavy-duty tubing · Tubing
PAN-8X1,25-NT	Plastic tubing · Tubing
PAN-8X1,25-SI-400	Plastic tubing · Tubing
PAN-8X1,25-BL-400	Plastic tubing · Tubing
PAN-8X1,25-SW-400	Plastic tubing · Tubing
PAN-8X1,25-BL	Plastic tubing · Tubing
PAN-8X1,25-SW	Plastic tubing · Tubing
PAN-8X1,25-GN	Plastic tubing · Tubing
PAN-8X1,25-RT	Plastic tubing · Tubing
PAN-8X1,25-GE	Plastic tubing · Tubing
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
ARVA-20-P1	Air reservoir · Connection accessories
ARVA-5	Air reservoir · Connection accessories
ARVA-10	Air reservoir · Connection accessories
ARVA-5-P1	Air reservoir · Connection accessories
ARVA-10-P1	Air reservoir · Connection accessories
ARVA-20	Air reservoir · Connection accessories
