How can I get a price quote for FESTO PAN-10X1,5-SI?

You can request a fast quote for FESTO PAN-10X1,5-SI from Yılsa Engineering. Reference part number CEY-937FC7825D13. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO PAN-10X1,5-SI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO PAN-10X1,5-SI genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO PAN-10X1,5-SI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

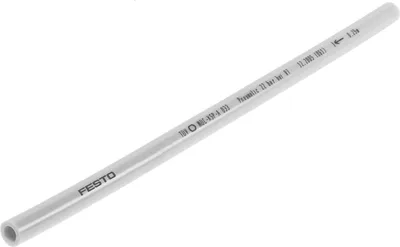

FESTO PAN-10X1,5-SI

Plastic tubing. Polyamide. High thermal and mechanical load capacities. Highly resistant to microbes. Operating medium: compressed air, vacuum

FESTOMFR # PAN-10X1,5-SISKU # CEY-937FC7825D13

Outside diameter10

Flow-relevant bending radius58

Inside diameter7

Min. bending radius27

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1.7

Have questions?Chat on WhatsApp

About This Product

Plastic tubing. Polyamide. High thermal and mechanical load capacities. Highly resistant to microbes. Operating medium: compressed air, vacuum

FESTO PAN-10X1,5-SI

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter10

Flow-relevant bending radius58

Inside diameter7

Min. bending radius27

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1.7

Temperature-dependent operating pressure-0.95, 17

Temperature-dependent operating pressure-13.775, 246.5

ApprovalGerman Technical Control Board (TÜV)

Maritime classificationSee certificate

Certificate issuing authority61630/B0 BV, B 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-30, 80

Product weight according to length0.042

Pneumatic connectionFor push-in connector O.D. 10 mm

ColourSilver

Shore hardnessD 55 +/-3

Note on materialsRoHS compliant

Material tubingTPE-A

Accessories 6

Genuine accessories that can be used with the FESTO PAN-10X1,5-SI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/4-10	Push-in fitting · Fittings
QSL-G1/4-10	Push-in L-fitting · Fittings
NPQH-L-G14-Q10-P10	Push-in L-fitting · Fittings
NPQH-D-G14-Q10-P10	Push-in fitting · Fittings
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
