How can I get a price quote for FESTO CCES-P-C8-E?

You can request a fast quote for FESTO CCES-P-C8-E from Yılsa Engineering. Reference part number CEY-937FC781EB0F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CCES-P-C8-E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CCES-P-C8-E genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CCES-P-C8-E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

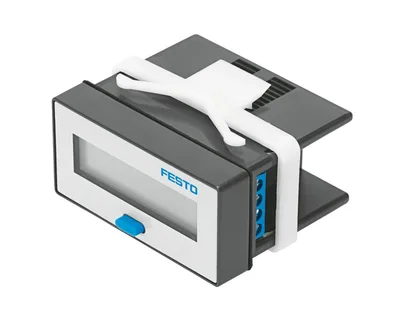

FESTO CCES-P-C8-E

Adding counter. 8-digit LCD display. Independent power supply. Connection via terminal strip. Reset button

FESTOMFR # CCES-P-C8-ESKU # CEY-937FC781EB0F

DesignElectric adding counter with battery

Type of resetPushbutton or electric signal

Display8 characters

Max. counting rate7.5

Max. attenuated counting rate30

Min. pulse length drive15

Have questions?Chat on WhatsApp

About This Product

Adding counter. 8-digit LCD display. Independent power supply. Connection via terminal strip. Reset button

FESTO CCES-P-C8-E

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignElectric adding counter with battery

Type of resetPushbutton or electric signal

Display8 characters

Max. counting rate7.5

Max. attenuated counting rate30

Min. pulse length drive15

Min. pulse length reset15

Upper threshold value DC5, 30

Power supplyLithium battery

Lower threshold value DC0.7

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 50

Product weight30

Clock pulse input settingFalling edge 30 Hz

Clock pulse input (input)Programmable

Type of mountingFront panel mounting

Note on materialsRoHS compliant

Material housingMakrolon®

Accessories 10

Genuine accessories that can be used with the FESTO CCES-P-C8-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
