How can I get a price quote for Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3?

You can request a fast quote for Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3 from Yılsa Engineering. Reference part number YLSLKM9MTFDUJ8J. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

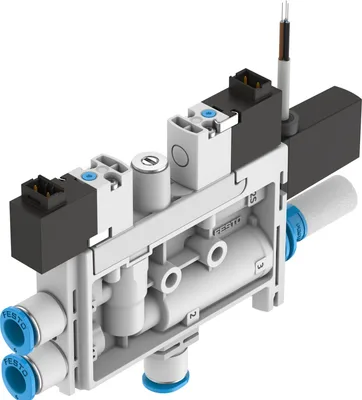

Photo may not represent actual item. Refer to name and product specs for all details.

Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3

Vacuum generator. Low-cost, compact vacuum generator. Light weight. Various performance levels and vacuum types. Short switching times thanks to integrated solenoid valves. Quick, precise and safe placement of the workpiece via the ejector pulse. Easy assembly. Minimal installation costs. Sustainable operation thanks to reduced pressure level. RA1 version with robot connection, enables fast integration in lightweight robot environments

FestoMFR # OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3SKU # YLSLKM9MTFDUJ8J

Nominal size, Laval nozzle0.7

Grid dimension15

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Grade of filtration40

Have questions?Chat on WhatsApp

About This Product

Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.7

Grid dimension15

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Grade of filtration40

Manual overrideNon-detenting

Integrated functionEjector pulse, electrical, Flow control, Pressure sensor, On/off valve, electric, Filter, Open silencer

DesignT-shape

Switching element functionNC or NO, switchable

Switching functionFreely programmable

Symbol00995804

Valve functionClosed

Measurement methodPiezoresistive pressure sensor with display

Display typeLED indicator, 2 digits

Setting optionsIO-Link®, Teach-in, Via display and buttons

Operating pressure for max. suction flow rate0.4

Operating pressure for max. suction flow rate4

Operating pressure for max. suction flow rate58

Operating pressure0.2, 0.7

Operating pressure2, 7

Operating pressure29, 101.5

Operating pressure for max. vacuum0.45

Operating pressure for max. vacuum4.5

Operating pressure for max. vacuum65.25

Max. vacuum92

Nominal operating pressure0.4

Nominal operating pressure4

Nominal operating pressure58

Max. suction flow rate against atmosphere17

Air supply time at nominal operating pressure with ejector pulse1.2

Operational voltage range DC21.6, 26.4

Duty cycle100%

Switching outputPNP/NPN, switchable

Characteristic coil data24 V DC: 1.0 W

Approvalc UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Sound pressure level at nominal operating pressure61

Degree of protectionIP40

Ambient temperature0, 50

Product weight92

Operating voltage range, DC sensor18, 30

Pressure measuring range-0.1, 0

Pressure measuring range-1, 0

Pressure measuring range-14.5, 0

Electrical connection input, functionEjector pulse, Vacuum generation

Electrical connection input, connection type2x plugs

Electrical connection input, connector systemPlug pattern H

Electrical connection input, number of connections/cores2

Electrical connection input, connection pattern00995626

Input electrical connection, mounting typeSnap-locking

Electrical connection output, functionSensor

Electrical connection output, connection typeCable

Electrical connection output, connector systemOpen end

Electrical connection output, number of connections/cores3

Cable characteristicSuitable for energy chains

Cable diameter2.9

Cable diameter tolerance± 0.1 mm

Cable length2.5

Nominal cross section conductor0.14

Type of mountingWith through-hole

Pneumatic connection, port 1For tubing outer diameter of 4 mm

Pneumatic connection, port 3Open silencer

Vacuum connectionFor tubing outside diameter of 4 mm

Cable sheath colourGrey

Material connecting threadPOM

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material filterPOM

Material housingReinforced PA

Material cable sheathPVC

Material adjusting screwSteel

Material silencerReinforced PA

Material screwsSteel

Material transmitter nozzleWrought aluminium alloy

Accessories 109

Genuine accessories that can be used with the Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
QS-G1/8-8	Push-in fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
SPAE-V1R-PC10-PNLK-2.5K	Pressure sensor · General accessories
QS-G1/8-8-I	Push-in fitting · Fittings
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
PUN-H-4X0,75-BL	Plastic tubing · Tubes
SPAE-B2R-PC10-PNLK-2.5K	Pressure sensor · General accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
PUN-H-4X0,75-SW	Plastic tubing · Tubes
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Connecting cables
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Connecting cables
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-S-0,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-R-4X0,75-SI	Heavy-duty tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
PAN-MF-4X0,75-SW	Plastic tubing · Tubing
NECU-S-ECG4-HX-Q3	Plug · Electrical accessories
PAN-MF-4X0,75-SW-500	Plastic tubing · Tubing
SPTE-V1R-PC10-V-2.5K	Pressure transmitter · General accessories
SPTE-V1R-PC10-B-2.5K	Pressure transmitter · General accessories
SPTE-B2R-PC10-V-2.5K	Pressure transmitter · General accessories
SPTE-B2R-PC10-B-2.5K	Pressure transmitter · General accessories
SCDN-2V-EC4-PNLK-L1	Signal converter · General accessories
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TSW	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
OABM-P-G3-15-2	Common supply manifold · General accessories
OABM-P-G3-15-4	Common supply manifold · General accessories
OABM-P-G3-15-8	Common supply manifold · General accessories
OAFF-G3-7	Vacuum filter · General accessories
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
PUN-H-SF-4X0,85-SW	Plastic tubing · Tubing
PUN-H-SF-4X0,85-BL	Plastic tubing · Tubing
PUN-H-4X0,75-RT-25	Plastic tubing · Tubing
PUN-H-4X0,75-BL-25	Plastic tubing · Tubing
PUN-H-4X0,75-SW-25	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-25	Plastic tubing · Tubing
