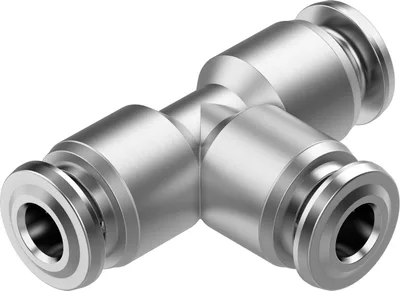

Festo NPQR-T-Q4-E
Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
SizeStandard
Nominal size3
Tubing insertion depth11
Mounting positionAny
DesignT-shape
Size of pack1
About This Product
Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Festo NPQR-T-Q4-E
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size3
Tubing insertion depth11
Mounting positionAny
DesignT-shape
Size of pack1
DesignPush-pull principle
Symbol00997424
Operating pressure complete temperature range-0.095, 1.6
Operating pressure complete temperature range-0.95, 16
Operating pressure complete temperature range-13.775, 232
Note on operating pressureWater: max. 0.7 MPa at 0 - 80 °C
Certificate issuing authorityNSF C0556009
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - Very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Suitable for use with foodSee declaration of conformity, NSF/ANSI 169
Ambient temperature-20, 150
Product weight10
Pneumatic connection, port 1For tubing outer diameter of 4 mm
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Colour of release ringSilver
Note on materialsRoHS compliant
Material housingHigh-alloy stainless steel
Guard ring materialHigh-alloy stainless steel
Material release ringHigh-alloy stainless steel
Material tubing sealFluoro rubber
Material tubing clamp componentHigh-alloy stainless steel
Thrust ring materialPPSU
Accessories 84
Genuine accessories that can be used with the Festo NPQR-T-Q4-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PFAN-4X0,75-NT | Plastic tubing · Tubes | |
| PM-4 | Plastic-coated metal tube · Connection accessories | |
| PAN-V0-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-4X0,75-SI | Plastic tubing · Tubing | |
| PAN-4X0,75-SI | Plastic tubing · Tubing | |
| PUN-4X0,75-DUO-SI | DUO tubing · Tubing | |
| PUN-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-4X0,75-DUO-BS | DUO tubing · Tubing | |
| PUN-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-CM-4-SW | Plastic tubing · Tubing | |
| PLN-4X0,75-NT | Plastic tubing · Tubing | |
| PLN-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-H-4X0,75-DUO | DUO tubing · Tubing | |
| PUN-4X0,75-S-0,5-BL | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1,5-BL | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-0,5-SW | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1,5-SW | Spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-0,5-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-4X0,75-S-1,5-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PUN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PAN-R-4X0,75-SI | Heavy-duty tubing · Tubing | |
| PEN-4X0,75-SW | Plastic tubing · Tubing | |
| PEN-4X0,75-NT | Plastic tubing · Tubing | |
| PAN-4X0,75-NT | Plastic tubing · Tubing | |
| PEN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-BL | Plastic tubing · Tubing | |
| PEN-4X0,75-SI | Plastic tubing · Tubing | |
| PEN-4X0,75-GN | Plastic tubing · Tubing | |
| PEN-4X0,75-RT | Plastic tubing · Tubing | |
| PEN-4X0,75-GE | Plastic tubing · Tubing | |
| PAN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-BL | Plastic tubing · Tubing | |
| PAN-4X0,75-SW | Plastic tubing · Tubing | |
| PAN-4X0,75-GN | Plastic tubing · Tubing | |
| PAN-4X0,75-RT | Plastic tubing · Tubing | |
| PAN-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PLN-4X0,75-BL | Plastic tubing · Tubing | |
| PLN-4X0,75-SI | Plastic tubing · Tubing | |
| PLN-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-NT-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SI | Plastic tubing · Tubing | |
| PUN-H-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-H-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-V0-4X1-SW-C | Plastic tubing · Tubing | |
| PUN-V0-4X1-BL-C | Plastic tubing · Tubing | |
| PAN-MF-4X0,75-SW | Plastic tubing · Tubing | |
| PAN-MF-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TSW | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TSW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TRT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TRT-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGN | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGN-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGE | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGE-500 | Plastic tubing · Tubing | |
| PTFEN-4X0,5-NT-100 | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-NT | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-TBL | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-SW | Plastic tubing · Tubing |
