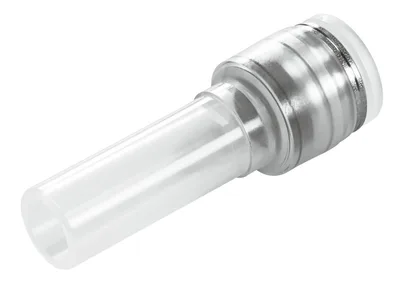

Festo NPQP-D-Q4-S6-FD-P10

Photo may not represent actual item. Refer to name and product specs for all details.

Festo NPQP-D-Q4-S6-FD-P10

Push-in connector. Polypropylene. Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN. For use with extreme media influences. Food grade see www.festo.com/certificates/NPQP. Operating medium: compressed air, vacuum. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FestoMFR # NPQP-D-Q4-S6-FD-P10SKU # CEY-937FC7825BA1
SizeStandard
Nominal size2.5
DesignStraight design
Size of pack10
DesignPush-pull principle
Temperature-dependent operating pressure-0.095, 1
Share
Have questions?Chat on WhatsApp

About This Product

Push-in connector. Polypropylene. Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN. For use with extreme media influences. Food grade see www.festo.com/certificates/NPQP. Operating medium: compressed air, vacuum. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

Festo NPQP-D-Q4-S6-FD-P10

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size2.5
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.45
Operating pressure complete temperature range-0.95, 4.5
Operating pressure complete temperature range-13.775, 65.25
Temperature-dependent operating pressure-0.095, 1
Temperature-dependent operating pressure-0.95, 10
Temperature-dependent operating pressure-13.775, 145
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - Very high corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitable for use with foodSee supplementary material information
Ambient temperature-20, 60
Product weight2.4
Pneumatic connection, port 1Push-in sleeve Ø 6 mm
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Colour of release ringTransparent white
Note on materialsRoHS compliant
Material housingPP
Material tubing clamp componentHigh-alloy stainless steel

Accessories 83

Genuine accessories that can be used with the Festo NPQP-D-Q4-S6-FD-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PUN-H-4X0,75-NTPlastic tubing · Tubes
PUN-H-4X0,75-BLPlastic tubing · Tubes
PUN-H-4X0,75-SWPlastic tubing · Tubes
PUN-H-4X0,75-TBLPlastic tubing · Tubes
PAN-V0-4X0,75-BLPlastic tubing · Tubing
PUN-4X0,75-SIPlastic tubing · Tubing
PAN-4X0,75-SIPlastic tubing · Tubing
PUN-4X0,75-DUO-SIDUO tubing · Tubing
PUN-4X0,75-BLPlastic tubing · Tubing
PUN-4X0,75-SWPlastic tubing · Tubing
PUN-4X0,75-DUO-BSDUO tubing · Tubing
PUN-4X0,75-RTPlastic tubing · Tubing
PUN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-GNPlastic tubing · Tubing
PUN-CM-4-SWPlastic tubing · Tubing
PLN-4X0,75-NTPlastic tubing · Tubing
PLN-4X0,75-SWPlastic tubing · Tubing
PFAN-4X0,75-NTPlastic tubing · Tubing
PUN-4X0,75-S-0,5-BLSpiral plastic tubing · Tubing
PUN-4X0,75-S-1-BLSpiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-BL Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-1-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-SWSpiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-DUO-BSDUO spiral plastic tubing · Tubing
PUN-4X0,75-SI-500Plastic tubing · Tubing
PUN-4X0,75-BL-500Plastic tubing · Tubing
PAN-R-4X0,75-SIHeavy-duty tubing · Tubing
PEN-4X0,75-SWPlastic tubing · Tubing
PEN-4X0,75-NTPlastic tubing · Tubing
PAN-4X0,75-NTPlastic tubing · Tubing
PEN-4X0,75-SW-500Plastic tubing · Tubing
PEN-4X0,75-BL-500Plastic tubing · Tubing
PEN-4X0,75-SI-500Plastic tubing · Tubing
PEN-4X0,75-BLPlastic tubing · Tubing
PEN-4X0,75-SIPlastic tubing · Tubing
PEN-4X0,75-GNPlastic tubing · Tubing
PEN-4X0,75-RTPlastic tubing · Tubing
PEN-4X0,75-GEPlastic tubing · Tubing
PAN-4X0,75-SI-500Plastic tubing · Tubing
PAN-4X0,75-BL-500Plastic tubing · Tubing
PAN-4X0,75-SW-500Plastic tubing · Tubing
PAN-4X0,75-BLPlastic tubing · Tubing
PAN-4X0,75-SWPlastic tubing · Tubing
PAN-4X0,75-GNPlastic tubing · Tubing
PAN-4X0,75-RTPlastic tubing · Tubing
PAN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-SW-500Plastic tubing · Tubing
PLN-4X0,75-BLPlastic tubing · Tubing
PLN-4X0,75-SIPlastic tubing · Tubing
PLN-4X0,75-RTPlastic tubing · Tubing
PUN-H-4X0,75-SW-500Plastic tubing · Tubing
PUN-H-4X0,75-BL-500Plastic tubing · Tubing
PUN-H-4X0,75-NT-500 Plastic tubing · Tubing
PUN-H-4X0,75-SI-500Plastic tubing · Tubing
PUN-H-4X0,75-SIPlastic tubing · Tubing
PUN-H-4X0,75-RTPlastic tubing · Tubing
PUN-H-4X0,75-GNPlastic tubing · Tubing
PUN-H-4X0,75-GEPlastic tubing · Tubing
PUN-H-4X0,75-TBL-500Plastic tubing · Tubing
PUN-H-4X0,75-TSWPlastic tubing · Tubing
PUN-H-4X0,75-TSW-500Plastic tubing · Tubing
PUN-H-4X0,75-TRTPlastic tubing · Tubing
PUN-H-4X0,75-TRT-500Plastic tubing · Tubing
PUN-H-4X0,75-TGNPlastic tubing · Tubing
PUN-H-4X0,75-TGN-500Plastic tubing · Tubing
PUN-H-4X0,75-TGEPlastic tubing · Tubing
PUN-H-4X0,75-TGE-500Plastic tubing · Tubing
PUN-H-F-4X0,75-NTPlastic tubing · Tubing
PUN-H-F-4X0,75-RTPlastic tubing · Tubing
PUN-H-F-4X0,75-BLPlastic tubing · Tubing
PUN-H-F-4X0,75-TBLPlastic tubing · Tubing
PUN-H-F-4X0,75-GNPlastic tubing · Tubing
PUN-H-F-4X0,75-GEPlastic tubing · Tubing
PUN-H-F-4X0,75-SWPlastic tubing · Tubing
PUN-H-SF-4X0,85-SWPlastic tubing · Tubing
PUN-H-SF-4X0,85-BLPlastic tubing · Tubing
PUN-H-4X0,75-RT-25Plastic tubing · Tubing
PUN-H-4X0,75-BL-25Plastic tubing · Tubing
PUN-H-4X0,75-SW-25Plastic tubing · Tubing
PUN-H-4X0,75-TBL-25Plastic tubing · Tubing
