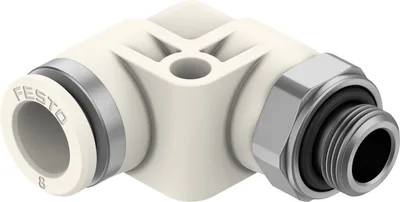

Festo NPQO-L-G18-Q8-P10
Push-in L-fitting. Oxygen compatibility (in accordance with ISO 15001 and ASTM G93). Biocompatibility (according to ISO 18562). FDA-listed materials. Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar). Wide range from 4 mm to 12 mm in size. Push-in fittings and connections (straight, L-shaped, T-shaped)
Nominal size6
Tubing insertion depth17.6
Type of seal on screwed plugO-ring
Mounting positionAny
DesignL-shape
Size of pack10
About This Product
Push-in L-fitting. Oxygen compatibility (in accordance with ISO 15001 and ASTM G93). Biocompatibility (according to ISO 18562). FDA-listed materials. Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar). Wide range from 4 mm to 12 mm in size. Push-in fittings and connections (straight, L-shaped, T-shaped)
Festo NPQO-L-G18-Q8-P10
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size6
Tubing insertion depth17.6
Type of seal on screwed plugO-ring
Mounting positionAny
DesignL-shape
Size of pack10
DesignPush-pull principle
VariantsWith mounting holes
Operating pressure complete temperature range-0.09, 0.3
Operating pressure complete temperature range-0.9, 3
Operating pressure complete temperature range-13.05, 43.5
Temperature-dependent operating pressure-0.09, 1.6
Temperature-dependent operating pressure-0.9, 16
Temperature-dependent operating pressure-13.05, 232
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas, Carbon dioxide, Air, Oxygen, Nitrogen
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitable for use with foodSee supplementary material information
Media temperature0, 120
Ambient temperature0, 60
Biocompatibility according to standardISO 18562
Oxygen suitability according to standardASTM G 93, ISO 15001
Maximum impurity level for hydrocarbons550
Max. tightening torque6
Nominal torque5
Tolerance for nominal tightening torque±10%
Product weight19.8
Pneumatic connection, port 1Male thread G1/8
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Ambient temperature32, 140
Colour of release ringWhite
Material screwed plugHigh-alloy stainless steel
Note on materialsRoHS compliant
Material housingPVDF
Material thread sealFluoro rubber
Material release ringPVDF
Material o-ringFluoro rubber
Material tubing sealFluoro rubber
Material tubing clamp componentHigh-alloy stainless steel
Thrust ring materialPVDF
Accessories 68
Genuine accessories that can be used with the Festo NPQO-L-G18-Q8-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-H-F-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-CM-8-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-SI | Plastic tubing · Tubing | |
| PAN-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SW | Plastic tubing · Tubing | |
| PEN-8X1,25-NT | Plastic tubing · Tubing | |
| PAN-8X1,25-NT | Plastic tubing · Tubing | |
| PEN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL | Plastic tubing · Tubing | |
| PEN-8X1,25-SI | Plastic tubing · Tubing | |
| PEN-8X1,25-GN | Plastic tubing · Tubing | |
| PEN-8X1,25-RT | Plastic tubing · Tubing | |
| PEN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN | Plastic tubing · Tubing | |
| PEN | Plastic tubing · Tubing | |
| PAN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL | Plastic tubing · Tubing | |
| PAN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-8X1,25-GN | Plastic tubing · Tubing | |
| PAN-8X1,25-RT | Plastic tubing · Tubing | |
| PAN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE-400 | Plastic tubing · Tubing | |
| PTFEN-8X1-NT | Plastic tubing · Tubing | |
| PTFEN-8X1-NT-400 | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT-25 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-25 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-25 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-25 | Plastic tubing · Tubing | |
| PUN-H-LC-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-LC-8X1,25-HBL | Plastic tubing · Tubing |
