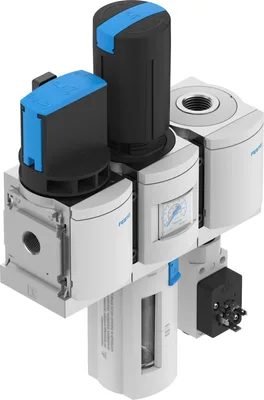

Festo MSB6-3/8:C3:J1:F3-WP
Service unit combination. Grid dimension 62 mm. Predefined or freely configurable combinations of service unit components. Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module
Size6
SeriesMS
Mounting positionVertical +/-5°
Grade of filtration40
Condensate drainManual, rotating
Max. condensate volume38
About This Product
Service unit combination. Grid dimension 62 mm. Predefined or freely configurable combinations of service unit components. Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module
Festo MSB6-3/8:C3:J1:F3-WP
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size6
SeriesMS
Actuator lockRotary knob with detent, can be closed with accessories
Mounting positionVertical +/-5°
Grade of filtration40
Condensate drainManual, rotating
DesignBranching module, On/off valve, On/off valve-filter regulator
Max. condensate volume38
Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function
Bowl guardPlastic bowl guard
Symbol00991771
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure0.15, 2
Operating pressure1.5, 20
Operating pressure21.75, 290
Pressure regulation range0.05, 1.2
Pressure regulation range0.5, 12
Pressure regulation range7.25, 174
Max. standard flow rate3500
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10, 60
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
Media temperature-10, 60
Ambient temperature-10, 60
Product weight2360
Type of mountingWith mounting bracket
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Pneumatic connection, port 3G1/2
Material filterPackaging unit
Material housingDie-cast aluminium
Material bowlMakrolon®
Accessories 184
Genuine accessories that can be used with the Festo MSB6-3/8:C3:J1:F3-WP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSL-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QSY-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-3/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-10-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-3/8-10-B | Multiple distributor · Push-in fittings | |
| QST-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSLV6-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QST-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV3-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-G3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSTF-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-8 | Multiple distributor · Push-in fittings | |
| QST-V0-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-16 | Push-in T-fitting · Push-in fittings | |
| QSK-G3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| QSL-3/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QST-3/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSW-3/8-10 | Push-in fitting · Push-in fittings | |
| QSW-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| NPFC-Y-3G38-F | Y-fitting · Quick connectors | |
| NPFC-L-2G38-F | Elbow fitting · Quick connectors | |
| NPFC-T-3G38-F | T-fitting · Quick connectors | |
| NPFC-T-2G38-R38-FMF | T-fitting · Quick connectors | |
| NPFC-X-4G38-F | X-fitting · Quick connectors | |
| NPFC-T-G38-2R38-FMM | T-fitting · Quick connectors | |
| NPFC-D-2G38-M | Double nipple · Quick connectors | |
| NPFC-D-G38-G12-M | Double nipple · Quick connectors | |
| NPFC-S-2G38-F | Sleeve · Quick connectors | |
| NPFC-R-G38-G18-F | Reducing sleeve · Quick connectors | |
| NPFC-E1-2G38-FM | Extension · Quick connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-F | Reducing sleeve · Quick connectors | |
| NPFC-D-2G38-M-P50 | Double nipple · Quick connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Quick connectors | |
| NPFC-H-G38-F | Bulkhead fitting · Quick connectors | |
| NPFC-DS-G38-G38-M | Double nipple · Quick connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Quick connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Quick connectors | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-3/8-PK-6 | Quick connector · Quick connectors | |
| CK-3/8-PK-9 | Quick connector · Quick connectors | |
| LCK-3/8-PK-6 | Elbow quick connector · Quick connectors | |
| LCK-3/8-PK-9 | Elbow quick connector · Quick connectors | |
| TCK-3/8-PK-6 | T quick connector · Quick connectors | |
| TCK-3/8-PK-9 | T quick connector · Quick connectors | |
| CK-3/8-PK-13 | Quick connector · Quick connectors | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-LFP-E | Filter cartridge · General accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| CK-3/8-PK-6-KU | Quick connector · Quick connectors | |
| CK-3/8-PK-9-KU | Quick connector · Quick connectors |
Related Products
View Details
Festo
MS6-LFR-AGE-D7-C-R-V
MFR #MS6-LFR-AGE-D7-C-R-V
SKU #YLS0UMEDKC40YT6
View Details
Festo
MSB6-1/2:J1:F3-WP
MFR #MSB6-1/2:J1:F3-WP
SKU #YLSMR04WUAHUEVA
View Details
Festo
MS6-LFR-AGE-D6-E-R-M-AS
MFR #MS6-LFR-AGE-D6-E-R-M-AS
SKU #YLSZSFTUHD7A3I7
View Details
Festo
MSB6-1/2:J120:M1-WP
MFR #MSB6-1/2:J120:M1-WP
SKU #YLSA2SKELKFQP6
View Details
Festo
MS6-LFR-AGE-D7-E-R-M
MFR #MS6-LFR-AGE-D7-E-R-M
SKU #YLSNZFB1UVAECIL
View Details
Festo
MSB6-1/2:J121:M1-WP
MFR #MSB6-1/2:J121:M1-WP
SKU #YLSODTQSWMDH2O
View Details
Festo
MS6-LFR-AGE-D7-E-R-M-MPA-AS
MFR #MS6-LFR-AGE-D7-E-R-M-MPA-AS
SKU #YLSFIPASJZRVXL
View Details
Festo
MSB6-1/2:J1:M1-WP
MFR #MSB6-1/2:J1:M1-WP
SKU #YLSBUDQ2YSLP8X
View Details
Festo
MS6-LFR-AGE-D7-E-R-V
MFR #MS6-LFR-AGE-D7-E-R-V
SKU #YLSI7IVJYMMB5W
Featured Products
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Related Searches
Festo MSB6-3/8:C3:J1:F3-WP priceFesto MSB6-3/8:C3:J1:F3-WP quotebuy Festo MSB6-3/8:C3:J1:F3-WPMSB6-3/8:C3:J1:F3-WP priceMSB6-3/8:C3:J1:F3-WP stock availabilityFesto spare partsFesto MSB6-3/8:C3:J1:F3-WP equivalentFesto MSB6-3/8:C3:J1:F3-WP specifications
