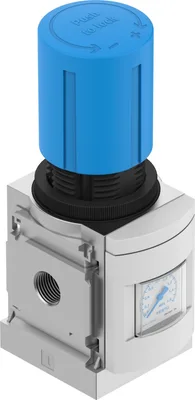

Festo MS6-LR-3/8-D7-MPA
Pressure regulator. High flow rate performance with minimal pressure drop. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. With or without secondary exhausting. Lockable rotary knob. Optional pressure sensor and rotary knob pressure gauge. Sustainable operation thanks to reduced pressure level. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignPressure regulator with pressure gauge
Symbol00991558
About This Product
Pressure regulator. High flow rate performance with minimal pressure drop. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. With or without secondary exhausting. Lockable rotary knob. Optional pressure sensor and rotary knob pressure gauge. Sustainable operation thanks to reduced pressure level. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
Festo MS6-LR-3/8-D7-MPA
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignPressure regulator with pressure gauge
Controller functionOutput pressure constant, With secondary exhausting, With return flow function
Symbol00991558
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure0.08, 2
Operating pressure0.8, 20
Pressure regulation range0.5, 12
Max. pressure hysteresis0.025
Max. pressure hysteresis0.25
Max. pressure hysteresis3.625
Standard nominal flow rate (standardised to DIN 1343)4500
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10, 60
Suitable for use with foodSee supplementary material information
Media temperature-10, 60
Ambient temperature-10, 60
Product weight730
Type of mountingWith accessories
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Note on materialsRoHS compliant
Material control panelProcess automation, POM
Material sealsNBR
Material housingDie-cast aluminium
Material membraneNBR
Accessories 191
Genuine accessories that can be used with the Festo MS6-LR-3/8-D7-MPA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSL-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QSY-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-3/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-10-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-3/8-10-B | Multiple distributor · Push-in fittings | |
| QST-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSLV6-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QST-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV3-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-G3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSTF-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-8 | Multiple distributor · Push-in fittings | |
| QST-V0-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-16 | Push-in T-fitting · Push-in fittings | |
| QSK-G3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| QSL-3/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QST-3/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSW-3/8-10 | Push-in fitting · Push-in fittings | |
| QSW-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| NPFC-Y-3G38-F | Y-fitting · Quick connectors | |
| NPFC-L-2G38-F | Elbow fitting · Quick connectors | |
| NPFC-T-3G38-F | T-fitting · Quick connectors | |
| NPFC-T-2G38-R38-FMF | T-fitting · Quick connectors | |
| NPFC-X-4G38-F | X-fitting · Quick connectors | |
| NPFC-T-G38-2R38-FMM | T-fitting · Quick connectors | |
| NPFC-D-2G38-M | Double nipple · Quick connectors | |
| NPFC-D-G38-G12-M | Double nipple · Quick connectors | |
| NPFC-S-2G38-F | Sleeve · Quick connectors | |
| NPFC-R-G38-G18-F | Reducing sleeve · Quick connectors | |
| NPFC-E1-2G38-FM | Extension · Quick connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-F | Reducing sleeve · Quick connectors | |
| NPFC-D-2G38-M-P50 | Double nipple · Quick connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Quick connectors | |
| NPFC-H-G38-F | Bulkhead fitting · Quick connectors | |
| NPFC-DS-G38-G38-M | Double nipple · Quick connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Quick connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Quick connectors | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-3/8-PK-6 | Quick connector · Quick connectors | |
| CK-3/8-PK-9 | Quick connector · Quick connectors | |
| LCK-3/8-PK-6 | Elbow quick connector · Quick connectors | |
| LCK-3/8-PK-9 | Elbow quick connector · Quick connectors | |
| TCK-3/8-PK-6 | T quick connector · Quick connectors | |
| TCK-3/8-PK-9 | T quick connector · Quick connectors | |
| CK-3/8-PK-13 | Quick connector · Quick connectors | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-WR | Mounting bracket · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-WRS | Hex nut · Mounting accessories | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| CK-3/8-PK-6-KU | Quick connector · Quick connectors | |
| CK-3/8-PK-9-KU | Quick connector · Quick connectors |
Related Products
View Details
Festo
MS6-LR-AGE-D6-MPA
MFR #MS6-LR-AGE-D6-MPA
SKU #YLS7GBDRWAUOEU
View Details
Festo
MS6-LR-AGE-D7-MPA
MFR #MS6-LR-AGE-D7-MPA
SKU #YLS6GMGQZV35JM
View Details
Festo
MS6-LR-AGE-D7
MFR #MS6-LR-AGE-D7
SKU #YLS1VHVIITI2ZDI
View Details
Festo
MS6-LR-AGE-D7-VS
MFR #MS6-LR-AGE-D7-VS
SKU #YLSCFNWL1S9FBZY
View Details
Festo
MS6-LR-AGF-D6
MFR #MS6-LR-AGF-D6
SKU #YLSFZ9TPKVGJDA
View Details
Festo
MS6-LR-AGF-D7-MPA
MFR #MS6-LR-AGF-D7-MPA
SKU #YLSTSSXOBXYN3AF
View Details
Festo
MS6-LR-AGF-D6-MPA
MFR #MS6-LR-AGF-D6-MPA
SKU #YLSC0MYH5RHBN7Q
View Details
Festo
MS6-LR-AGF-D7-VS
MFR #MS6-LR-AGF-D7-VS
SKU #YLSRCAJH3CMMRAM
View Details
Festo
MS6-LR-AGF-D7
MFR #MS6-LR-AGF-D7
SKU #YLS9ACTBV27WRQ
Featured Products
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Related Searches
Festo MS6-LR-3/8-D7-MPA priceFesto MS6-LR-3/8-D7-MPA quotebuy Festo MS6-LR-3/8-D7-MPAMS6-LR-3/8-D7-MPA priceMS6-LR-3/8-D7-MPA stock availabilityFesto spare partsFesto MS6-LR-3/8-D7-MPA equivalentFesto MS6-LR-3/8-D7-MPA specifications
