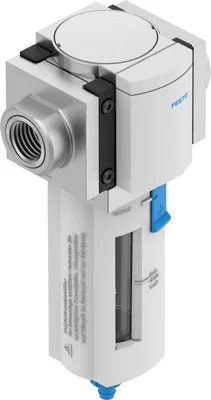

Festo MS4-LF-AGC-E-R-M
Filter. Grid dimension 40mm. Good particle and condensate separation. High flow rate performance with minimal pressure drop. Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
Size4
SeriesMS
Mounting positionVertical +/-5°
Grade of filtration40
Condensate drainManual, rotating
Bowl guardPlastic bowl guard
About This Product
Filter. Grid dimension 40mm. Good particle and condensate separation. High flow rate performance with minimal pressure drop. Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
Festo MS4-LF-AGC-E-R-M
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size4
SeriesMS
Mounting positionVertical +/-5°
Grade of filtration40
Condensate drainManual, rotating
DesignSintered filter with centrifugal separator
Bowl guardPlastic bowl guard
Degree of condensate separation75
Symbol00991519
Operating pressure0, 1.4
Operating pressure0, 14
Operating pressure0, 203
Standard nominal flow rate (standardised to DIN 1343)1700
Operating mediumCompressed air to ISO 8573-1:2010 [-:9:-], Inert gas
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10, 60
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4]
Media temperature-10, 60
Ambient temperature-10, 60
Pore size40
Product weight320
Type of mountingWith accessories
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material sealsNBR
Material filterPackaging unit
Material housingDie-cast aluminium
Material bowlMakrolon®
Material separating platePOM
Accessories 204
Genuine accessories that can be used with the Festo MS4-LF-AGC-E-R-M motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSL-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QSY-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-3/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-10-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-3/8-10-B | Multiple distributor · Push-in fittings | |
| QST-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSLV6-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QST-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV3-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-G3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSTF-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-8 | Multiple distributor · Push-in fittings | |
| QST-V0-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-16 | Push-in T-fitting · Push-in fittings | |
| QSK-G3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| QSL-3/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QST-3/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSW-3/8-10 | Push-in fitting · Push-in fittings | |
| QSW-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| NPFC-Y-3G38-F | Y-fitting · Quick connectors | |
| NPFC-L-2G38-F | Elbow fitting · Quick connectors | |
| NPFC-T-3G38-F | T-fitting · Quick connectors | |
| NPFC-T-2G38-R38-FMF | T-fitting · Quick connectors | |
| NPFC-X-4G38-F | X-fitting · Quick connectors | |
| NPFC-T-G38-2R38-FMM | T-fitting · Quick connectors | |
| NPFC-D-2G38-M | Double nipple · Quick connectors | |
| NPFC-D-G38-G12-M | Double nipple · Quick connectors | |
| NPFC-S-2G38-F | Coupling sleeve · Quick connectors | |
| NPFC-R-G38-G18-F | Reducing coupling · Quick connectors | |
| NPFC-E1-2G38-FM | Extension · Quick connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-F | Reducing coupling · Quick connectors | |
| NPFC-D-2G38-M-P50 | Double nipple · Quick connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Quick connectors | |
| NPFC-H-G38-F | Bulkhead fitting · Quick connectors | |
| MS4-MV1 | Module connector · Mounting accessories | |
| MS4-RB-10 | Covering kit · Mounting accessories | |
| NPFC-DS-G38-G38-M | Double nipple · Quick connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Quick connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Quick connectors | |
| MS4-WP-F1A | Mounting bracket · Mounting accessories | |
| MS4-MV1-F1A | Module connector · Mounting accessories | |
| CK-3/8-PK-6 | Quick connector · Quick connectors | |
| CK-3/8-PK-9 | Quick connector · Quick connectors | |
| LCK-3/8-PK-6 | Elbow quick connector · Quick connectors | |
| LCK-3/8-PK-9 | Elbow quick connector · Quick connectors | |
| TCK-3/8-PK-6 | T-quick connector · Quick connectors | |
| TCK-3/8-PK-9 | T-quick connector · Quick connectors | |
| CK-3/8-PK-13 | Quick connector · Quick connectors | |
| MS4-AEND | Mounting plate · Mounting accessories | |
| MS4-AGA-EX | Sub-base-SET · Mounting accessories | |
| MS4-AGB-EX | Sub-base-SET · Mounting accessories | |
| MS4-AGC-EX | Sub-base-SET · Mounting accessories | |
| MS4-MV-EX | Module connector · Mounting accessories | |
| MS4-WP-EX | Mounting bracket · Mounting accessories | |
| MS4-6-AMV | Module connector · Mounting accessories | |
| MS4-RMV | Module connector · Mounting accessories | |
| MS4-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS4-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS4-A-IPM-80 | Branching module · Mounting accessories | |
| MS4-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| MS4-6-AMV-EX | Module connector · Mounting accessories | |
| MS4-RMV-EX | Module connector · Mounting accessories | |
| MS4-WPM-D | Mounting bracket · Mounting accessories | |
| MS4-WBM | Mounting bracket · Mounting accessories | |
| MS4-WPM-2D | Mounting bracket · Mounting accessories | |
| MS4-AGA | Sub-base-SET · Mounting accessories | |
| MS4-AGB | Sub-base-SET · Mounting accessories | |
| MS4-AGC | Sub-base-SET · Mounting accessories | |
| MS4-WP | Mounting bracket · Mounting accessories | |
| MS4-WB | Mounting bracket · Mounting accessories | |
| MS4-MVM | Module connector · Mounting accessories | |
| MS4-END | Cover cap · Mounting accessories | |
| CK-3/8-PK-6-KU | Quick connector · Quick connectors | |
| CK-3/8-PK-9-KU | Quick connector · Quick connectors |
Related Products
View Details
Festo
MS6-LFX 532911
MFR #MS6-LFX
SKU #YLSWUFRPCTWINR
View Details
Festo
MS9-LFX 552946
MFR #MS9-LFX
SKU #YLSUZF3JKVU6EEG
View Details
Festo
MS12-LF
MFR #MS12-LF
SKU #YLS2YXYFPQ8BMH0
View Details
Festo
MS12-LFM
MFR #MS12-LFM
SKU #YLSWA4F9JKCJ5U
View Details
Festo
MS9-LF
MFR #MS9-LF
SKU #YLSB0LR3OSBHI7D
View Details
Festo
MS9-LFM
MFR #MS9-LFM
SKU #YLSKPKIAC3YHCDB
View Details
Festo
MS4-LFM
MFR #MS4-LFM
SKU #YLSWJVTIPCZZGXH
View Details
Festo
MS6-LFM
MFR #MS6-LFM
SKU #YLSZQS7RFD345AN
View Details
Festo
MS4-LFX
MFR #MS4-LFX
SKU #YLS59AX49NAVSN
Featured Products
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Related Searches
Festo MS4-LF-AGC-E-R-M priceFesto MS4-LF-AGC-E-R-M quotebuy Festo MS4-LF-AGC-E-R-MMS4-LF-AGC-E-R-M priceMS4-LF-AGC-E-R-M stock availabilityFesto spare partsFesto MS4-LF-AGC-E-R-M equivalentFesto MS4-LF-AGC-E-R-M specifications
