How can I get a price quote for Festo MHP4-M1H-3/2O-1/4?

You can request a fast quote for Festo MHP4-M1H-3/2O-1/4 from Yılsa Engineering. Reference part number CEY-937FC78213CC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MHP4-M1H-3/2O-1/4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MHP4-M1H-3/2O-1/4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MHP4-M1H-3/2O-1/4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

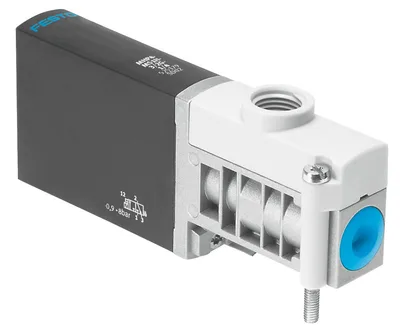

Festo MHP4-M1H-3/2O-1/4

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

FestoMFR # MHP4-M1H-3/2O-1/4SKU # CEY-937FC78213CC

Valve function3/2-way, single solenoid, open

Type of actuationElectrical

Construction width18

pneumatic working portG1/4

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

Festo MHP4-M1H-3/2O-1/4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, open

Type of actuationElectrical

Construction width18

Standard nominal flow rate (standardised to DIN 1343)400

pneumatic working portG1/4

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignPressure relief poppet valve

Type of resetMechanical spring

Degree of protectionIP65

Approvalc UL us - Recognised (Oil)

Nominal size4

Grid dimension24

Note on grid dimensionMinimum distance between the valves is 6 mm

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionReversible with restrictions

Symbol00991322

lapUnderlap

Operating pressure, reversible-0.09, 0.1

Operating pressure, reversible-0.9, 1

Operating pressure, reversible-13.05, 14.5

Max. switching frequency120

Switching time off5

Switching time on10.5

Duty cycle100%

Characteristic coil data24 V DC: 5.6 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Media temperature-5, 40

Ambient temperature-5, 40

Product weight270

Electrical connection2-pin, Plug

Type of mountingOn PR rail

Pneumatic connection, port 11Sub-base

Pneumatic connection, port 2G1/4

Pneumatic port 33Sub-base

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast zinc, coated

Material screwsGalvanised steel

Accessories 133

Genuine accessories that can be used with the Festo MHP4-M1H-3/2O-1/4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KMEB-1-24-2.5-LED	Plug socket with cable · Electrical accessories
U-1/4	Silencer · Silencer
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
QS-G1/4-10	Push-in fitting · Fittings
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
CK-1/4-PK-4	Quick connector · Quick connectors
CK-1/4-PK-6	Quick connector · Quick connectors
CK-1/4-PK-9	Quick connector · Quick connectors
LCK-1/4-PK-4	Elbow quick connector · Quick connectors
LCK-1/4-PK-6	Elbow quick connector · Quick connectors
TCK-1/4-PK-4	T-quick connector · Quick connectors
TCK-1/4-PK-6	T-quick connector · Quick connectors
CK-1/4-PK-4-KU	Quick connector · Quick connectors
CK-1/4-PK-6-KU	Quick connector · Quick connectors
CK-1/4-PK-9-KU	Quick connector · Quick connectors
LCK-1/4-PK-4-KU	Elbow quick connector · Quick connectors
LCK-1/4-PK-6-KU	Elbow quick connector · Quick connectors
TCK-1/4-PK-4-KU	T-quick connector · Quick connectors
TCK-1/4-PK-6-KU	T-quick connector · Quick connectors
U-1/4-B	Silencer · Silencer
LCK-1/4-PK-9	Elbow quick connector · Quick connectors
CN-1/4-PK-4	Barbed fitting · Barbed fittings
CN-1/4-PK-6	Barbed fitting · Barbed fittings
TCN-1/4-PK-4	Barbed T-fitting · Barbed fittings
TCN-1/4-PK-6	Barbed T-fitting · Barbed fittings
LCN-1/4-PK-4	Barbed elbow fitting · Barbed fittings
LCN-1/4-PK-6	Barbed elbow fitting · Barbed fittings
LCNH-1/4-PK-4	Barbed elbow fitting · Barbed fittings
LCNH-1/4-PK-6	Barbed elbow fitting · Barbed fittings
QS-G1/4-6-100	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-12-20	Push-in fitting · Push-in fittings
QSL-G1/4-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/4-8-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-10-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-12-20	Push-in L-fitting · Push-in fittings
QSLV-G1/4-6-100	Push-in L-fitting · Push-in fittings
QSLV-G1/4-8-50	Push-in L-fitting · Push-in fittings
QSLV-G1/4-10-50	Push-in L-fitting · Push-in fittings
QST-G1/4-6-100	Push-in T-fitting · Push-in fittings
QST-G1/4-8-50	Push-in T-fitting · Push-in fittings
QST-G1/4-10-50	Push-in T-fitting · Push-in fittings
QSTL-G1/4-6-100	Push-in T-fitting · Push-in fittings
QSTL-G1/4-8-50	Push-in T-fitting · Push-in fittings
QSTL-G1/4-10-50	Push-in T-fitting · Push-in fittings
QSLL-G1/4-12	Push-in L-fitting, long · Push-in fittings
QST-G1/4-12	Push-in T-fitting · Push-in fittings
KMEB-1-24-5-LED	Plug socket with cable · Electrical accessories
UC-1/4	Silencer · Silencer
KMEB-2-24-2,5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-M12-0,5-LED	Plug socket with cable · Electrical accessories
QS-G1/4-6	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QS-G1/4-10-I	Push-in fitting · Push-in fittings
QSL-G1/4-6	Push-in L-fitting · Push-in fittings
QSL-G1/4-8	Push-in L-fitting · Push-in fittings
QSL-G1/4-10	Push-in L-fitting · Push-in fittings
QSLL-G1/4-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/4-8	Push-in L-fitting, long · Push-in fittings
QSLL-G1/4-10	Push-in L-fitting, long · Push-in fittings
QSLV-G1/4-6	Push-in L-fitting · Push-in fittings
QSLV-G1/4-8	Push-in L-fitting · Push-in fittings
QSLV-G1/4-10	Push-in L-fitting · Push-in fittings
QSLV-G1/4-6-I	Push-in L-fitting · Push-in fittings
QSLV-G1/4-8-I	Push-in L-fitting · Push-in fittings
QSLV-G1/4-10-I	Push-in L-fitting · Push-in fittings
QST-G1/4-6	Push-in T-fitting · Push-in fittings
QST-G1/4-8	Push-in T-fitting · Push-in fittings
QST-G1/4-10	Push-in T-fitting · Push-in fittings
QSTL-G1/4-6	Push-in T-fitting · Push-in fittings
QSTL-G1/4-8	Push-in T-fitting · Push-in fittings
QSTL-G1/4-10	Push-in T-fitting · Push-in fittings
QSY-G1/4-6	Push-in Y-fitting · Push-in fittings
QSY-G1/4-8	Push-in Y-fitting · Push-in fittings
QSY-G1/4-10	Push-in Y-fitting · Push-in fittings
QSYL-G1/4-6	Push-in Y-fitting · Push-in fittings
QSYL-G1/4-8	Push-in Y-fitting · Push-in fittings
QSYL-G1/4-10	Push-in Y-fitting · Push-in fittings
QSTF-G1/4-6	Push-in T-fitting · Push-in fittings
QSTF-G1/4-8	Push-in T-fitting · Push-in fittings
QSTF-G1/4-10	Push-in T-fitting · Push-in fittings
QSYLV-G1/4-8	Push-in Y-fitting · Push-in fittings
QSYTF-G1/4-8	Multiple distributor · Push-in fittings
QST3-G1/4-8-6	Multiple distributor · Push-in fittings
QSQ-G1/4-4	Multiple distributor · Push-in fittings
QSLV2-G1/4-6	Multiple distributor · Push-in fittings
QSLV2-G1/4-8	Multiple distributor · Push-in fittings
QSLV2-G1/4-10	Multiple distributor · Push-in fittings
QSLV3-G1/4-6	Multiple distributor · Push-in fittings
QSLV3-G1/4-8	Multiple distributor · Push-in fittings
QSLV3-G1/4-10	Multiple distributor · Push-in fittings
QSLV4-G1/4-6	Multiple distributor · Push-in fittings
QSLV4-G1/4-8	Multiple distributor · Push-in fittings
QSLV4-G1/4-10	Multiple distributor · Push-in fittings
QSLV6-G1/4-6	Multiple distributor · Push-in fittings
QSLV6-G1/4-8	Multiple distributor · Push-in fittings
QSLV6-G1/4-10	Multiple distributor · Push-in fittings
QSQ-G1/4-6	Multiple distributor · Push-in fittings
QSR-G1/4-6	Push-in fitting, rotatable · Push-in fittings
QSR-G1/4-8	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/4-6	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G1/4-8	Push-in L-fitting, rotatable · Push-in fittings
QSMK-G1/4-6	Push-in fitting, self-sealing · Push-in fittings
QSK-G1/4-8	Push-in fitting, self-sealing · Push-in fittings
QSK-G1/4-10	Push-in fitting, self-sealing · Push-in fittings
QSMKL-G1/4-6	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G1/4-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G1/4-10	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/4-6	Push-in fitting · Push-in fittings
QS-V0-G1/4-8	Push-in fitting · Push-in fittings
QS-V0-G1/4-10	Push-in fitting · Push-in fittings
QS-V0-G1/4-12	Push-in fitting · Push-in fittings
QSL-V0-G1/4-6	Push-in L-fitting · Push-in fittings
QSL-V0-G1/4-8	Push-in L-fitting · Push-in fittings
QSL-V0-G1/4-10	Push-in L-fitting · Push-in fittings
QSL-V0-G1/4-12	Push-in L-fitting · Push-in fittings
QST-V0-G1/4-6	Push-in T-fitting · Push-in fittings
QST-V0-G1/4-8	Push-in T-fitting · Push-in fittings
QST-V0-G1/4-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/4-12	Push-in T-fitting · Push-in fittings
QS-G1/4-12	Push-in fitting · Push-in fittings
QSL-G1/4-12	Push-in L-fitting · Push-in fittings
KMEB-1-24-10-LED	Plug socket with cable · Electrical accessories
UC-1/4-20	Silencer · Silencer
U-1/4-20	Silencer · Silencer
AMTE-M-LH-G14	Silencer · Silencer
AMTE-M-H-G14	Silencer · Silencer
