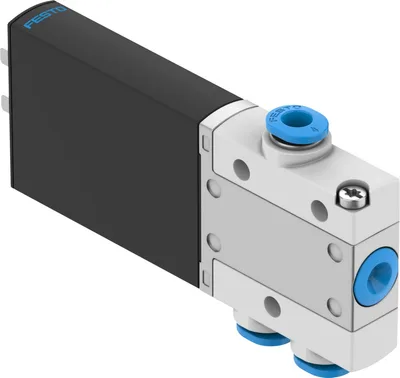

Festo MHE2-M1H-3/2G-QS-4

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

FestoMFR # MHE2-M1H-3/2G-QS-4SKU # CEY-937FC78217F0

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

pneumatic working portQS-4

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

Festo MHE2-M1H-3/2G-QS-4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

Standard nominal flow rate (standardised to DIN 1343)100

pneumatic working portQS-4

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignPressure relief poppet valve

Type of resetMechanical spring

Degree of protectionIP65

Approvalc UL us - Recognised (Oil)

Nominal size2

Grid dimension14

Note on grid dimensionMinimum distance between the valves is 4 mm

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionReversible with restrictions

Symbol00991308

lapUnderlap

Operating pressure, reversible-0.09, 0.1

Operating pressure, reversible-0.9, 1

Operating pressure, reversible-13.05, 14.5

Max. switching frequency130

Switching time off3.5

Switching time on7

Duty cycle100%

Characteristic coil data24 V DC: 2.88 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Media temperature-5, 60

Ambient temperature-5, 60

Product weight60

Electrical connection2-pin, Plug

Type of mountingWith through-hole

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2QS-4

Pneumatic connection, port 3QS-4

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast zinc, coated

Material screwsGalvanised steel

Accessories 81

Genuine accessories that can be used with the Festo MHE2-M1H-3/2G-QS-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
MHE2-BG-L	Mounting bracket · Mounting accessories
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
UC-QS-4H	Silencer · Silencer
KMYZ-4-24-2,5-B	Plug socket with cable · Electrical accessories
NEBV-Z4WA2L-P-E-2.5-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-P-E-2.5-N-M8G3-S1	Connecting cable · Connecting cables
PAN-V0-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PUN-CM-4-SW	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
KMYZ-4-24-0,5-B	Plug socket with cable · Electrical accessories
PLN-4X0,75-SW	Plastic tubing · Tubing
PFAN-4X0,75-NT	Plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-R-4X0,75-SI	Heavy-duty tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
PUN-V0-4X1-SW-C	Plastic tubing · Tubing
PUN-V0-4X1-BL-C	Plastic tubing · Tubing
PAN-MF-4X0,75-SW	Plastic tubing · Tubing
PAN-MF-4X0,75-SW-500	Plastic tubing · Tubing
NEDY-	Distributor · Electrical accessories
NEBV-Z4WA2L-P-E-10-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-P-E-5-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-P-E-0.5-N-M8G3-S1	Connecting cable · Connecting cables
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TSW	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
