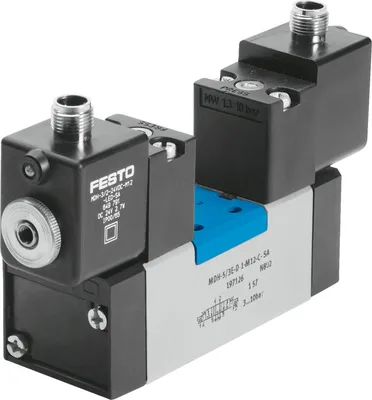

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO MDH-5/3B-D-2-M12-C

Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible. Extensive range of electrical connection options. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Also available as a valve terminal

FESTOMFR # MDH-5/3B-D-2-M12-CSKU # CEY-937FC7820D5A

Valve function5/3-way, pressurised

Type of actuationElectrical

Construction width54

pneumatic working portSub-base size 2 to ISO 5599-1, G3/8

Operating voltage24 V DC

Operating pressure3, 10

Have questions?Chat on WhatsApp

About This Product

FESTO MDH-5/3B-D-2-M12-C

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3-way, pressurised

Type of actuationElectrical

Construction width54

Standard nominal flow rate (standardised to DIN 1343)2300

pneumatic working portSub-base size 2 to ISO 5599-1, G3/8

Operating voltage24 V DC

Operating pressure3, 10

DesignPiston gate valve

Type of resetMechanical spring

Degree of protectionIP65

Nominal size11.5

Grid dimension56

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideNon-detenting

ISO code258

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991083

lapOverlap

Switching time off70

Switching time on35

Duty cycle100%

Max. positive test pulse with 0 signal3800

Max. negative test pulse with 1 signal4900

Characteristic coil data24 V DC: 2.7 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 50

Sound pressure level85

Ambient temperature-10, 50

Product weight1000

Electrical connectionM12x1

Type of mountingOn sub-base, Via through-hole and screw

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast aluminium

Accessories 44

Genuine accessories that can be used with the FESTO MDH-5/3B-D-2-M12-C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NDV-2-ISO	Cover plate · Connection accessories
NAS-3/8-2A-ISO	Individual sub-base · Connection accessories
NSC-3/8-2-ISO	Isolating disc · Connection accessories
NAVW-3/8-2-ISO	Manifold sub-base with angled connections · Connection accessories
NEV-2DA/DB-ISO	End plate kit · Connection accessories
VABF-S1-2-R1C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R1C2-C-10	Regulator plate · Connection accessories
VABV-S1-2SB-G12	Sub-base · Connection accessories
VABS-S1-2S-G12	Sub-base · Connection accessories
VABE-S1-2LZ-G34	End plate · Connection accessories
VABE-S1-2L-G34	End plate · Connection accessories
VABE-S1-2RZ-G34	End plate · Connection accessories
VABE-S1-2R-G34	End plate · Connection accessories
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE4	Connecting cable · Connecting cables
NAV-3/8-2C-ISO	Manifold sub-base · Connection accessories
NAW-3/8-2E-ISO	Angled connection plate · Connection accessories
NAU-3/8-2B-ISO	Individual sub-base · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAW-3/8-NPT-2E	Manifold sub-base with angled connections · Connection accessories
NAVW-3/8-NPT-2	Manifold sub-base with angled connections · Connection accessories
NZV-1-2	Intermediate plate · Connection accessories
VABF-S1-2-R2C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R2C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R3C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R4C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R5C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R6C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R7C2-C-10	Regulator plate · Connection accessories
VABF-S1-2-P1A3-G12	Vertical pressure supply plate · Connection accessories
VABF-S1-2-F1B1-C	Throttle plate · Connection accessories
VABF-S1-2-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABV-S1-2SB-N12	Sub-base · Connection accessories
VABS-S1-2S-N12	Sub-base · Connection accessories
VABE-S1-2LZ-N34	End plate · Connection accessories
VABE-S1-2L-N34	End plate · Connection accessories
VABE-S1-2RZ-N34	End plate · Connection accessories
VABE-S1-2R-N34	End plate · Connection accessories
NEDY-	Distributor · Electrical accessories
