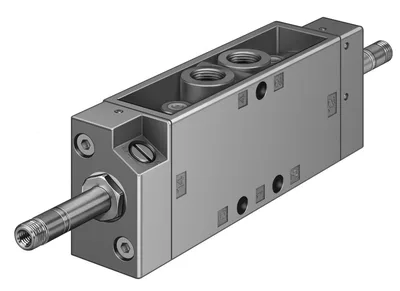

FESTO JMFDH-5-1/8-EX

Solenoid valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # JMFDH-5-1/8-EXSKU # CEY-937FC782011E

Valve function5/2-way, bistable, dominant

Type of actuationElectrical

Construction width26

pneumatic working portG1/8

Operating pressure0.25, 0.8

Operating pressure2.5, 8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTO JMFDH-5-1/8-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, bistable, dominant

Type of actuationElectrical

Construction width26

Standard nominal flow rate (standardised to DIN 1343)600

pneumatic working portG1/8

Operating voltageVia solenoid coil, must be ordered separately

Operating pressure0.25, 0.8

Operating pressure2.5, 8

DesignPoppet seat

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-5°C <= Ta <= +40°C

Degree of protectionIP65

Nominal size5

Grid dimension27

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting

Type of pilotingPiloted

Flow directionNon-reversible

Symbol00995763

lapUnderlap

Max. switching frequency16

Switching time reversal16

Max. positive test pulse with 0 signal2200

Max. negative test pulse with 1 signal3700

Characteristic coil dataSee solenoid coil, to be ordered separately

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Media temperature-5, 40

Ambient temperature-5, 40

Product weight260

Electrical connectionVia F coil, to be ordered separately

Type of mountingEither:, On manifold rail, With through-hole

Breather connectionM3

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4G1/8

Pneumatic connection, port 5G1/8

Note on materialsRoHS compliant

Material sealsNBR, TPE-U(PU)

Material housingDie-cast aluminium

Accessories 24

Genuine accessories that can be used with the FESTO JMFDH-5-1/8-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MSFW-110-50/60-EX	Solenoid coil · Electrical accessories
MSFW-230-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-1-EX4-M	Solenoid coil · Electrical accessories
MF-LD-12-24DC	Illuminating seal · Electrical accessories
MF-LD-230AC	Illuminating seal · Electrical accessories
MSFG-24-EX	Solenoid coil · Electrical accessories
U-1/8	Silencer · Silencer
QS-G1/8-8	Push-in fitting · Fittings
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
PUN-H-8X1,25-NT	Plastic tubing · Tubes
QSLL-G1/8-8	Push-in L-fitting, long · Fittings
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
MSFW-24-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-10-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-20-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-5-EX4-M	Solenoid coil · Electrical accessories
