How can I get a price quote for FESTO JMDDH-5/2-D-2-M12D-C?

You can request a fast quote for FESTO JMDDH-5/2-D-2-M12D-C from Yılsa Engineering. Reference part number CEY-937FC781F583. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO JMDDH-5/2-D-2-M12D-C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO JMDDH-5/2-D-2-M12D-C genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO JMDDH-5/2-D-2-M12D-C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

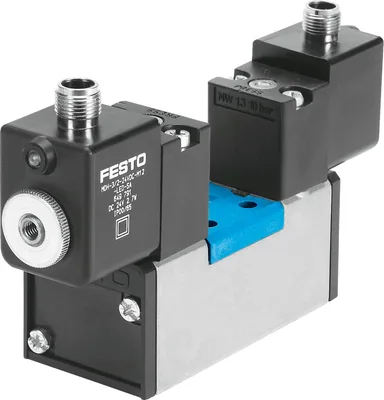

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO JMDDH-5/2-D-2-M12D-C

Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible. Extensive range of electrical connection options. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Also available as a valve terminal

FESTOMFR # JMDDH-5/2-D-2-M12D-CSKU # CEY-937FC781F583

Valve function5/2-way, bistable, dominant

Type of actuationElectrical

Construction width54

pneumatic working portSub-base size 2 to ISO 5599-1, G3/8

Operating voltage24 V DC

Operating pressure2, 10

Have questions?Chat on WhatsApp

About This Product

FESTO JMDDH-5/2-D-2-M12D-C

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, bistable, dominant

Type of actuationElectrical

Construction width54

Standard nominal flow rate (standardised to DIN 1343)2300

pneumatic working portSub-base size 2 to ISO 5599-1, G3/8

Operating voltage24 V DC

Operating pressure2, 10

DesignPiston gate valve

Degree of protectionIP65

Nominal size11.5

Grid dimension56

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideNon-detenting

ISO code269

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991059

lapOverlap

Switching time reversal20

Switching time reversal (dominating)20

Duty cycle100%

Max. positive test pulse with 0 signal3800

Max. negative test pulse with 1 signal4900

Characteristic coil data24 V DC: 2.7 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 50

Sound pressure level85

Ambient temperature-10, 50

Product weight940

Electrical connectionM12x1

Type of mountingOn sub-base, Via through-hole and screw

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast aluminium

Accessories 32

Genuine accessories that can be used with the FESTO JMDDH-5/2-D-2-M12D-C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEV-2DA/DB-ISO	End plate kit · Connection accessories
NDV-2-ISO	Cover plate · Connection accessories
NAS-3/8-2A-ISO	Individual sub-base · Connection accessories
NSC-3/8-2-ISO	Isolating disc · Connection accessories
NAVW-3/8-2-ISO	Manifold sub-base with angled connections · Connection accessories
VABF-S1-2-R1C2-C-6	Regulator plate · Connection accessories
VABF-S1-2-R1C2-C-10	Regulator plate · Connection accessories
VABV-S1-2SB-G12	Sub-base · Connection accessories
VABS-S1-2S-G12	Sub-base · Connection accessories
VABE-S1-2LZ-G34	End plate · Connection accessories
VABE-S1-2L-G34	End plate · Connection accessories
VABE-S1-2RZ-G34	End plate · Connection accessories
VABE-S1-2R-G34	End plate · Connection accessories
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE4	Connecting cable · Connecting cables
NAV-1/2-3C-ISO	Manifold sub-base · Connection accessories
NEV-3DA/DB-ISO	End plate kit · Connection accessories
NAS-1/2-3A-ISO	Individual sub-base · Connection accessories
NAU-1/2-3B-ISO	Individual sub-base · Connection accessories
NDV-3-ISO	Cover plate · Connection accessories
NAW-1/2-3E-ISO	Angled connection plate · Connection accessories
NSC-1/2-3-ISO	Isolating disc · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAS-1/2-NPT-3A	Individual sub-base · Connection accessories
NEV-3DA/DB-NPT	End plate kit · Connection accessories
NAV-1/2-NPT-3C	Manifold sub-base · Connection accessories
LR-ZP-B-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-A/B-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-P-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-A-D-3	Intermediate pressure regulator plate · Connection accessories
NAVW-1/2-3-ISO	Manifold sub-base with angled connections · Connection accessories
NAVW-1/2-NPT-3	Manifold sub-base with angled connections · Connection accessories
